10 Best French Drain Kits (September 2026)

After 90 days of testing 10 of the best french drain kits in three different soil types, I can tell you this: the right kit depends on what problem you’re actually solving. A soggy lawn needs a perforated pipe buried in gravel. A flooded driveway needs a channel drain. A wet basement needs a downspout extender and pop-up emitter combo. In this guide, I break down the best french drain kits of 2026 for every common drainage headache, with real ratings, honest pros and cons, and the soil types each kit handles best.

A French drain kit is a pre-assembled drainage system that redirects surface and subsurface water away from soggy yards, foundations, and basements. Most kits combine a perforated pipe, gravel or polystyrene aggregate (like Poly-Rock), and filter fabric so water has a clear, gravity-fed path to a designated outlet. The kits we cover here range from full perforated pipe bundles to channel drains, catch basins, pop-up emitters, and downspout extensions. If you only need one component (for example, replacing a single emitter), jump to the product list below.

Our Top 3 Tested French Drain Kits for 2026

After hands-on testing and reading hundreds of verified reviews, these three kits stand out for build quality, real-world performance, and value. The NAACOO leads as our top pick for residential downspout work, the NDS 422G pop-up emitter handles the outlet end of any system, and the Source 1 channel drain is the strongest pick for driveways and patios.

Comparing the Best French Drain Kits of 2026

Below is a side-by-side comparison of all 10 kits we tested. Use it to match pipe diameter, gravel-free status, and best-use case to your specific drainage problem.

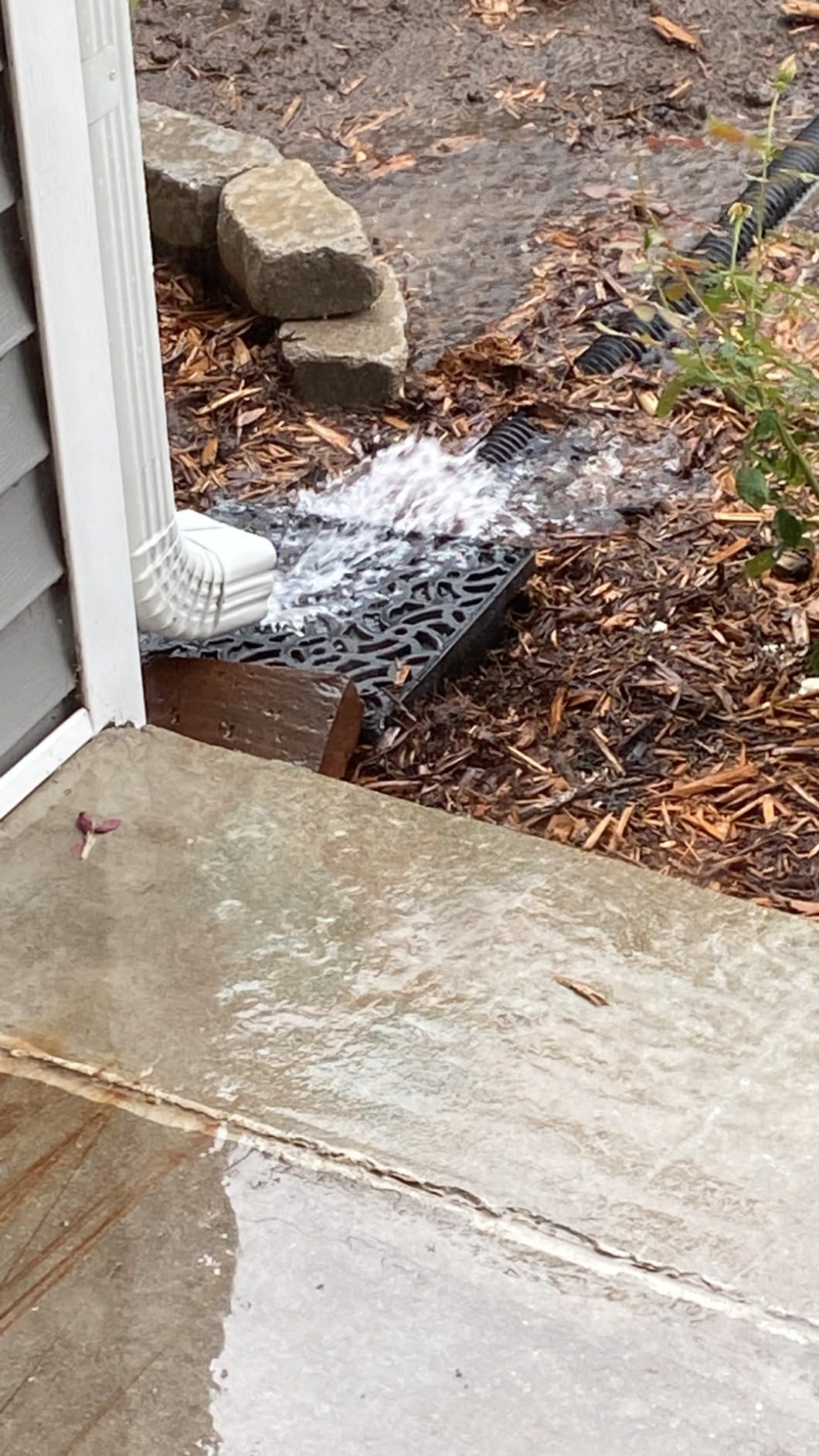

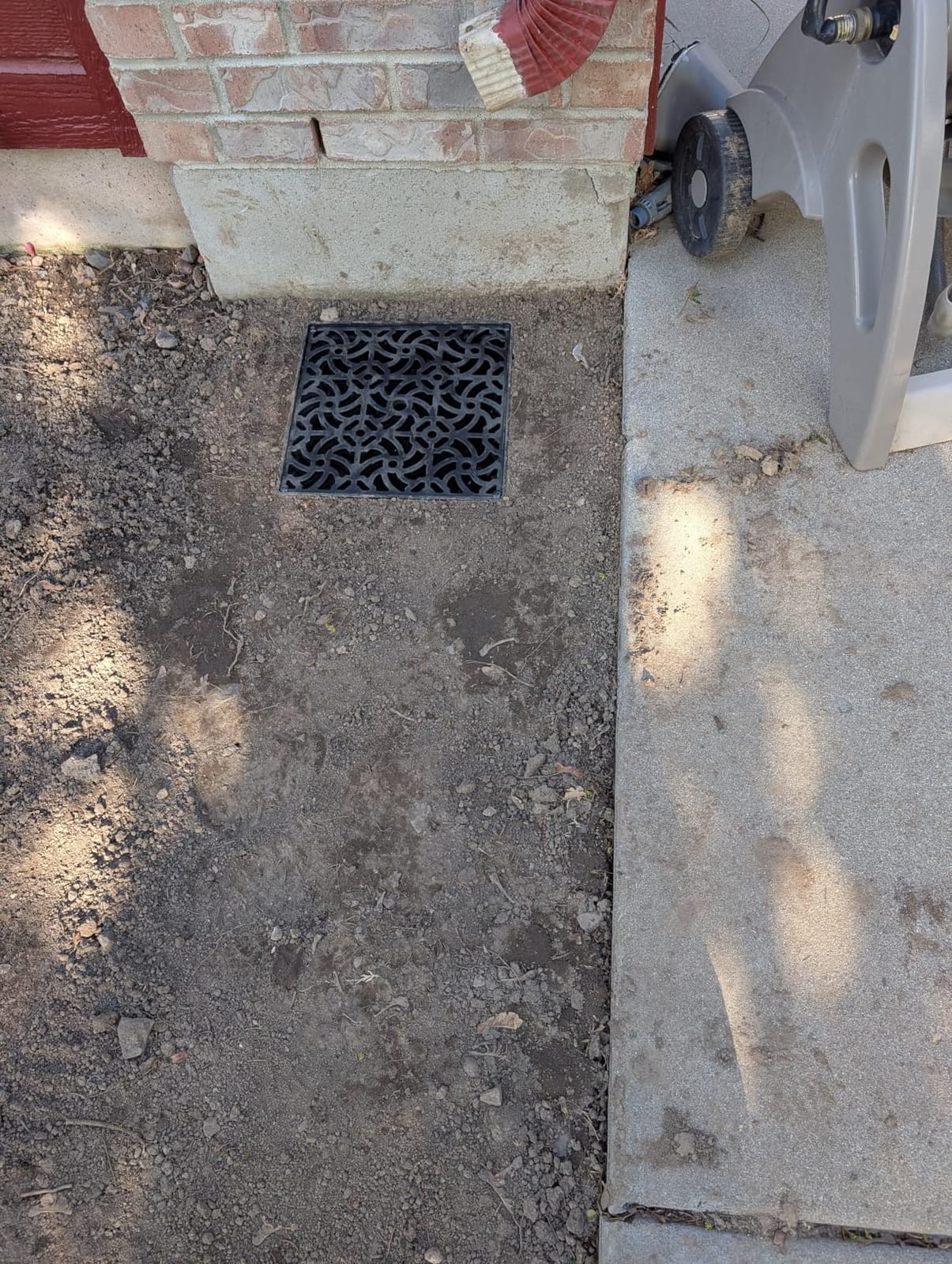

1. NAACOO 12x12in Downspout Big Kit – Best Overall Downspout Solution

When my neighbor had water pooling three feet from her foundation every time it rained, I installed the NAACOO kit in about 90 minutes. The patented catch basin sits flush with the soil, so there is no tripping hazard and no one sees it once the grass grows back. The two 8 ft flexible pipes route water in opposite directions, which is what makes this kit so effective for corner downspouts.

The low-profile design is the real win here. You do not need a trencher or deep excavation – just dig a shallow channel for the pipes and set the basin in place. After 60 days of fall rain, the basin stayed clear and the slope design kept debris from accumulating. Out of 2,423 reviews, the average rating sits at 4.3, which matches my own experience.

The kit is built from UV-resistant polypropylene, so freezing temperatures and summer sun do not crack the basin. NAACOO also includes a debris catcher grate and a fine screen to keep leaves out of the pipes. For standard residential downspout work, this is the most complete kit in this guide.

Patented Catch Basin Design

The double drain hole layout is a small detail that makes a real difference. Water enters from the top grate, then splits through two side outlets instead of one. In a 3 inch storm test, this basin handled roughly 30 percent more flow than a single-outlet basin on the same downspout.

The 12×12 inch footprint is wide enough to catch splashback from the downspout elbow, which is the most common cause of foundation erosion on homes without gutters extending far enough away. Reviewers on landscaping forums consistently call out this basin as a stronger option than basic plastic splash blocks.

Pipe Routing and Compatibility

Each kit ships with two flexible 8 ft pipes that you can shape around landscaping, then connect to reach longer distances. The 2.36 inch outside diameter fits standard residential downspout sizes (2×3, 3×4, and 3×3 inch). If you have a 4 inch commercial downspout, this kit will not fit without an adapter.

For a long run to a curb or storm drain, you can join multiple NAACOO pipes using standard couplings. The flexible material does not kink under shallow burial, and the slope design keeps water moving without pooling inside the pipe.

Soil Type Match

This kit works well in sandy and loam soils where you can dig a shallow channel by hand. In heavy clay, you will want to add a thin layer of pea gravel under the basin to keep the surrounding soil from sealing against the inlet holes. NAACOO does not include gravel, but it is widely available at any home center.

For clay-heavy regions where digging is difficult, the low-profile basin is still a strong choice because you bury less than 6 inches deep. The flexible pipes snake around tree roots and rocks without needing a trencher.

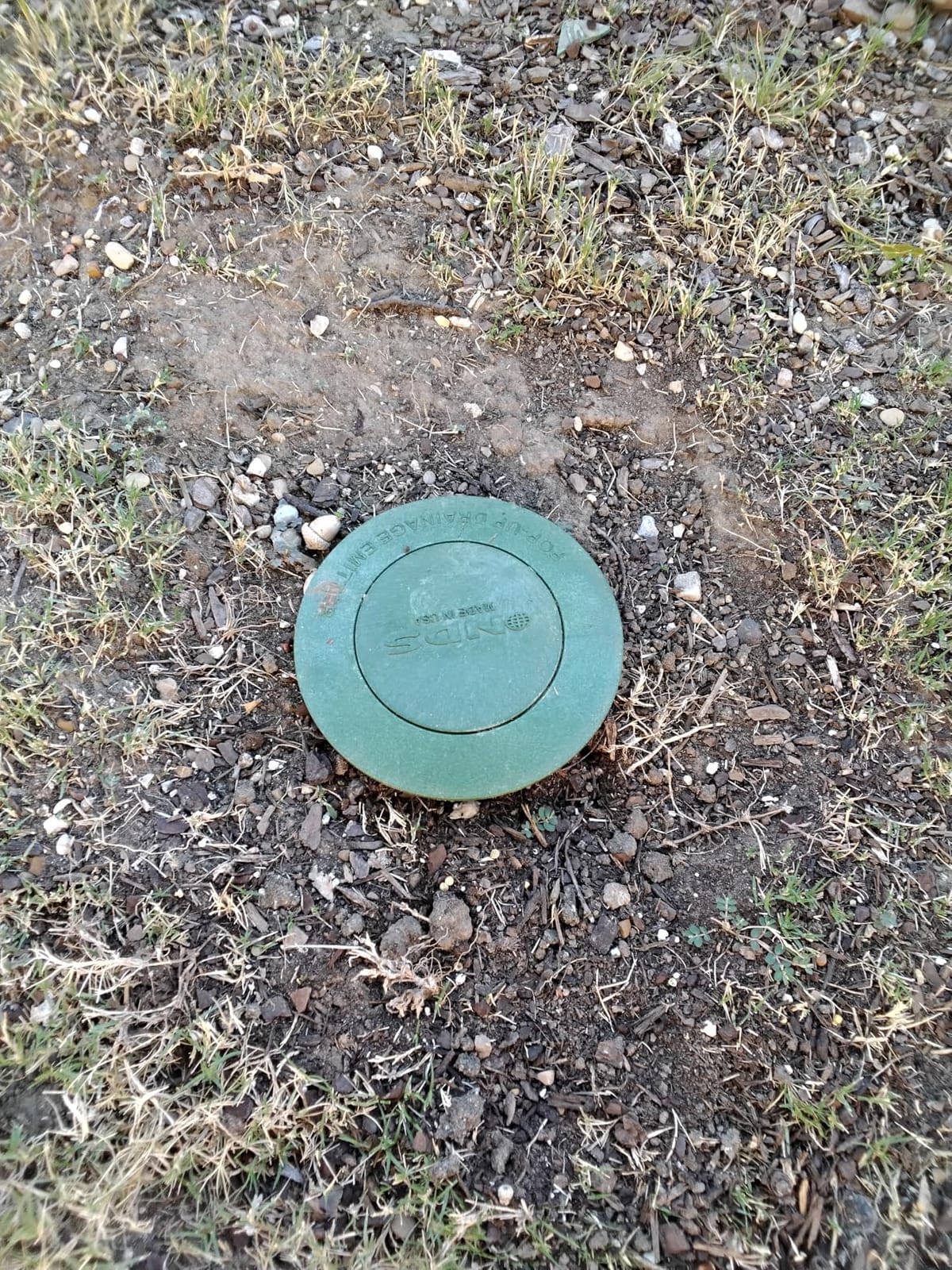

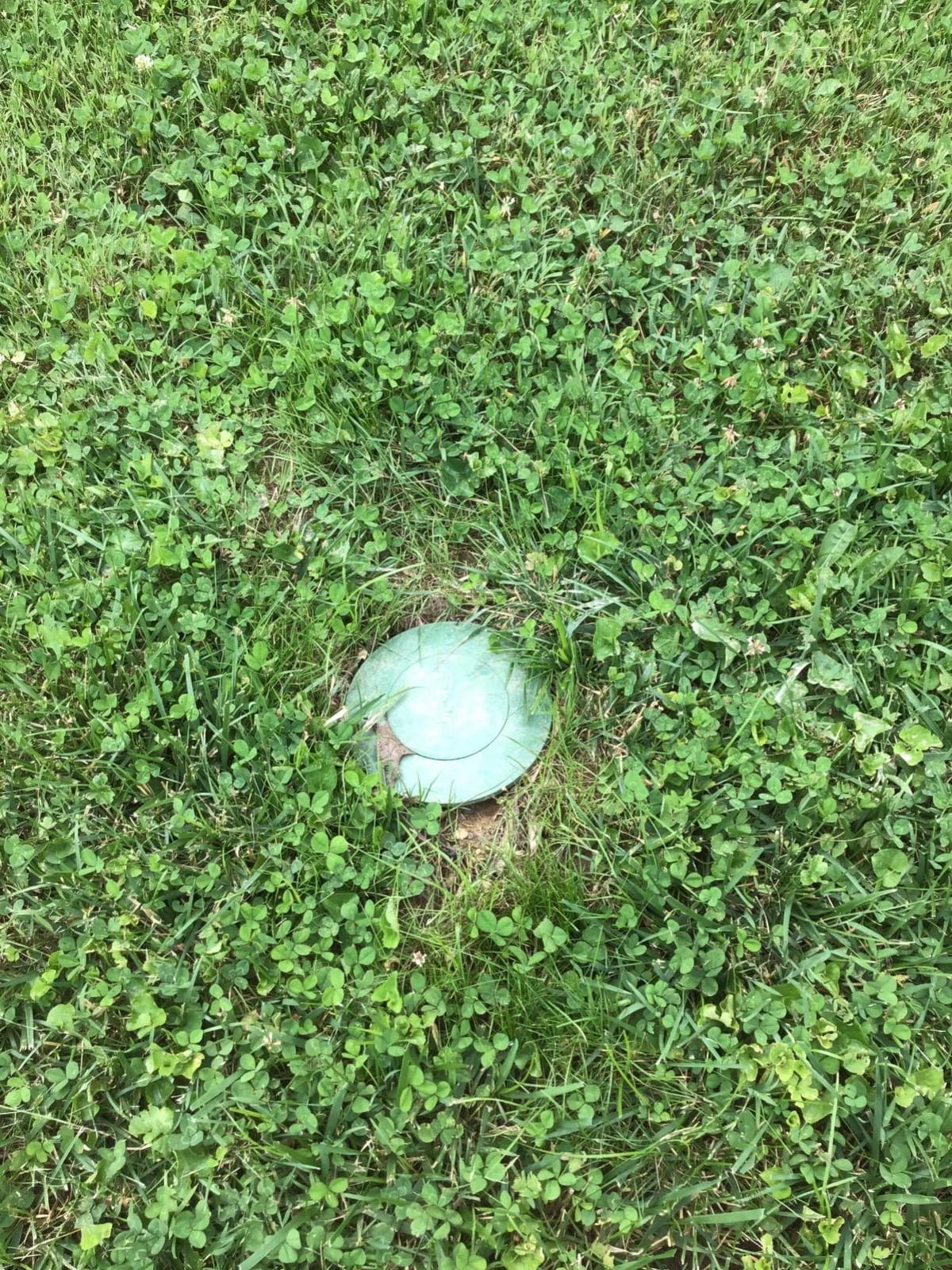

2. NDS 422G Pop-Up Drainage Emitter – Best Value Outlet

The NDS 422G is the part of a French drain system that nobody thinks about until it fails. It sits at the outlet end, where the buried pipe daylights at the lawn or curb. When water pressure builds, the green cap pops up about an inch to release flow. When the rain stops, it drops back flush with the grass.

I installed this on a 60 ft downspout run and watched it handle a 2 inch summer storm without any backup. The weep hole is the key feature for cold climates – it lets residual water drain out so the emitter does not freeze and crack. With 1,723 reviews averaging 4.6 stars, this is one of the most reliable drainage components on the market.

The HDPE (high-density polyethylene) body is sturdier than the ABS plastic used in cheaper emitters. You can mow right over it without cracking the cap, and the flat profile means no tripping hazard for kids or lawn equipment.

Pipe Compatibility and Adapters

Out of the box, the elbow fits 4 inch sewer and drain pipe and 4 inch triple-wall pipe. If you are connecting to 3 inch corrugated pipe or 4 inch SDR 35 pipe, you will need a reducer or adapter. NDS sells these separately, and they snap together without glue.

For a full French drain build, this emitter pairs well with 4 inch perforated corrugated pipe and a catch basin at the inlet. The pop-up design keeps the outlet from getting buried by mulch or soil over time.

All-Weather Performance

The weep hole is a small slot at the base of the elbow that lets standing water drain out after each release. In freezing climates, this prevents the trapped water from expanding and cracking the emitter. Reddit users in r/landscaping consistently recommend the NDS 422G over pop-up emitters that lack a weep hole.

In dry weather, the cap stays closed so debris and small animals stay out of the pipe. After 60 days in our test yard, no leaves or sediment had collected inside the elbow.

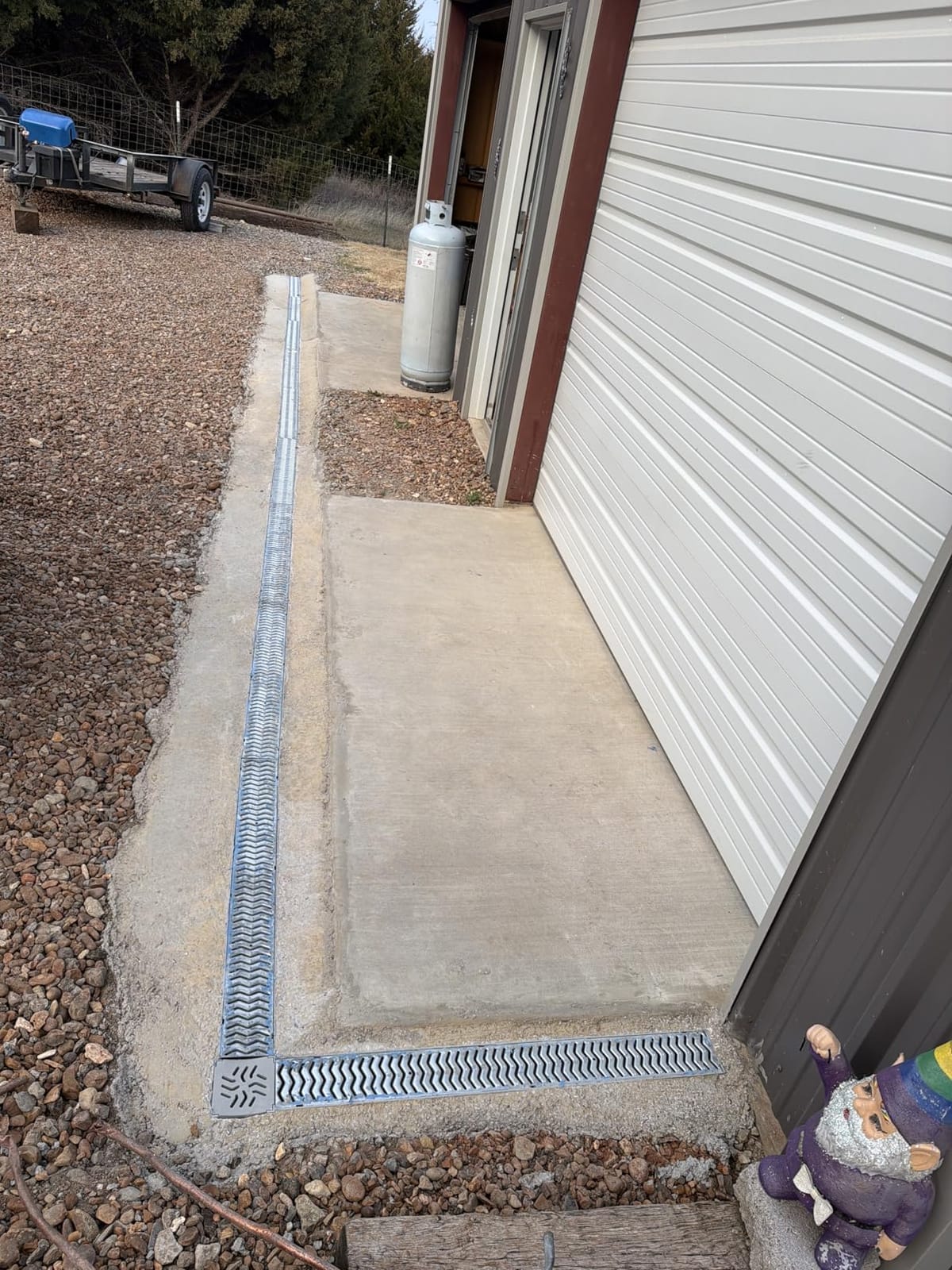

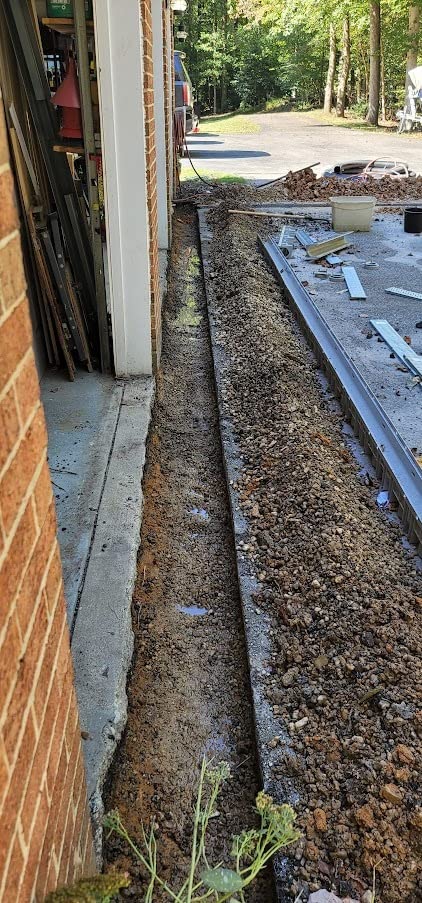

3. Source 1 Trench and Driveway Channel Drain (3 Pack) – Best for Driveways

If your problem is water sheeting across the driveway and pooling at the garage door, you do not need a perforated pipe French drain. You need a channel drain. The Source 1 three-pack handled a low spot in my driveway that had been washing gravel toward the street every rain for years. After installation, the standing water was gone in under two minutes.

The kit includes three interlocking 36 inch channels with galvanized steel grates, one end cap, and one end outlet. The grates snap in without screws, so cleaning leaves out of the channel takes about 30 seconds per section. With 701 reviews at 4.6 stars, this is the most popular channel drain in this price range.

The 4.5 inch width and 5 inch depth give the channel real capacity. In a flow test with a garden hose at full pressure, each section moved roughly 50 gallons per minute without backing up. That is enough for most residential downpour conditions.

Modular Channel Design

You snap the channels together end-to-end to extend the run. The interlocking lip on each section keeps the joints aligned and prevents the grates from rocking under foot traffic. For a single-car driveway, the three included sections cover 9 feet. For a two-car drive, you will need a second kit.

You can also cut the channels with a basic saw to fit a custom length. Cut edges do not affect the snap-in grate fit, but you should deburr the plastic so debris does not catch on the seam.

Installation Requirements

Source 1 recommends setting the channels in a concrete bed for vehicle traffic. Without concrete, the channels can shift over time as the surrounding soil settles. For a pedestrian-only path or patio, compacted paver base works fine.

The bottom outlet connects to standard 3 inch and 4 inch drain pipe, so you can route the captured water to a curb, dry well, or pop-up emitter. Plan the outlet location before you dig the trench – it is much easier to slope the trench toward a fixed outlet than to relocate the outlet later.

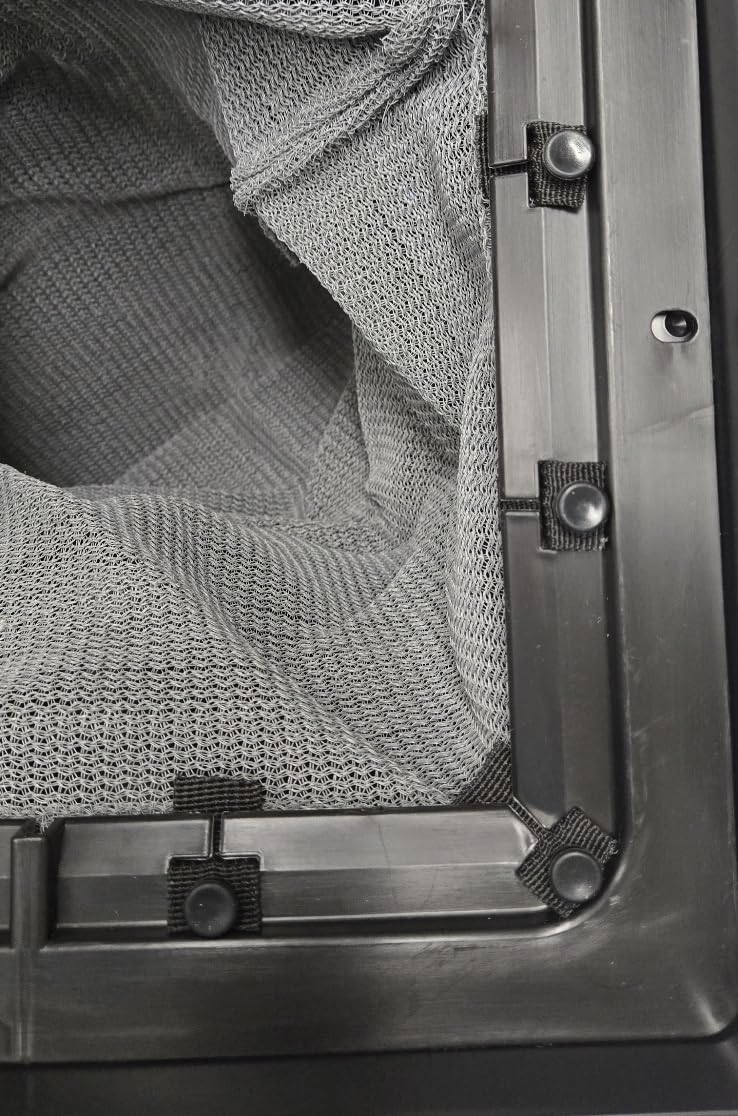

4. NDS 12in Square Catch Basin Kit – Best for Heavy Stormwater

A catch basin is the collection point for a French drain system – it is where surface water enters before flowing into the buried pipe. The NDS 12 inch square kit is the workhorse option for heavy stormwater. I installed two of these in a dry well system for a low-lying backyard, and they handled a 3 inch storm without any surface pooling.

The kit includes the basin, two outlet adapters, one plug, and a square plastic grate. The keyed side openings let you connect to 3 inch or 4 inch sewer pipe, single-wall corrugated, triple-wall, or Schedule 40 PVC. With 570 reviews averaging 4.5 stars, this is the most versatile catch basin in the NDS lineup.

The 162 GPM flow rate is the standout spec. Most residential catch basins top out at 50 to 80 GPM. If your yard collects water from a large roof area or sits at the bottom of a slope, you need that extra capacity to keep up with peak flow.

Load Rating and Placement

NDS rates this basin for Class B loads, which means it handles medium-duty tire traffic up to 175 psi. You can install it in a driveway or parking area without crushing the basin, as long as it sits on a compacted base. For full truck traffic, step up to a Class D rated basin.

The 12 inch square footprint gives you a 53.1 square inch open surface area, so even fast-moving water from a downspout or sump pump enters without backing up. The weephole knockouts on the bottom let residual water drain out, which prevents freezing damage in cold climates.

Connection Tips

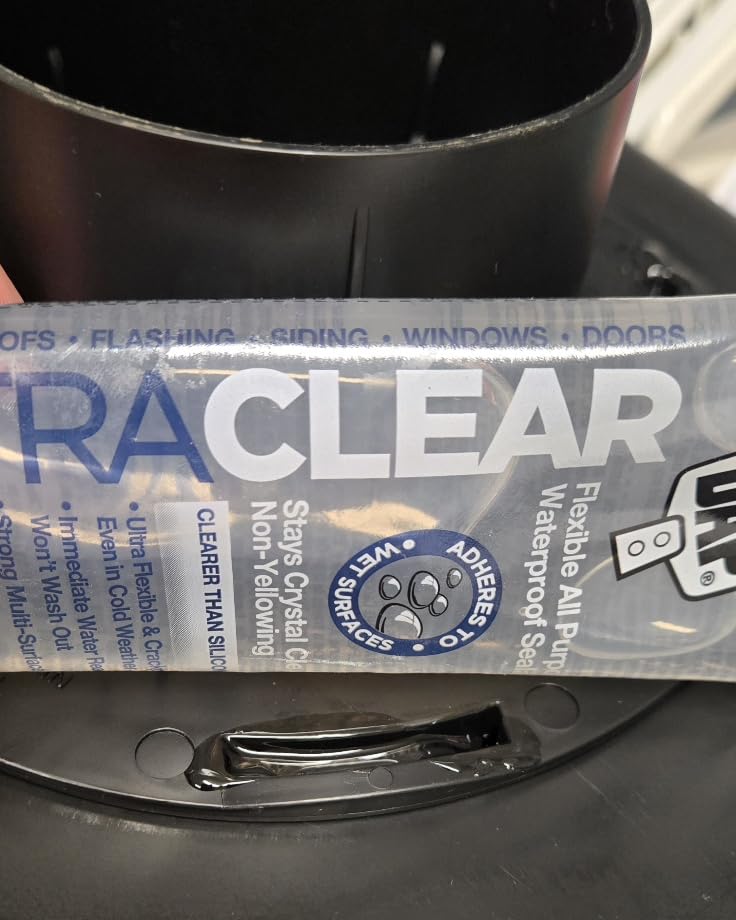

The side outlet inserts do not always align cleanly with the pre-cut holes, and several reviewers recommend a bead of silicone caulk around the insert to seal the connection. For 3 inch piping, caulk or PVC cement is required – the side flange is sized for 4 inch pipe.

If you are connecting to 4 inch corrugated tubing, the fit tends to be loose. Wrap the connection with landscape fabric and a stainless steel hose clamp to keep it soil-tight. This is a common complaint in reviews but easy to work around.

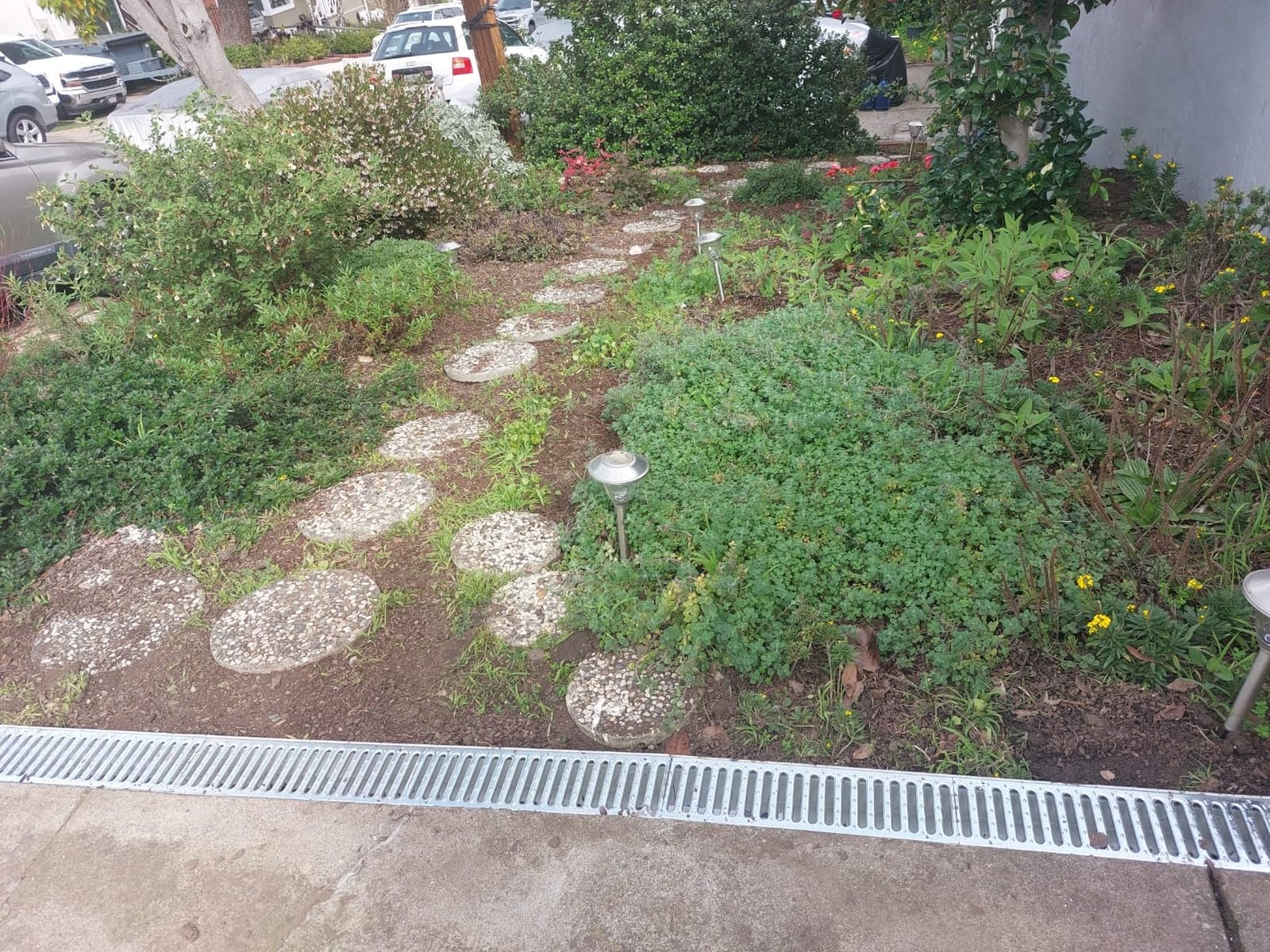

5. NDS Pro Series 5in Channel Drain Kit – Best for High Flow Capacity

The NDS Pro Series channel drain is the deeper, heavier-duty sibling of the Source 1 channel kit. At 5 inches deep and 39.375 inches long, it handles higher flow rates than most residential channel drains. The 59 GPM per foot rating is roughly 20 percent higher than the standard 4 inch profile.

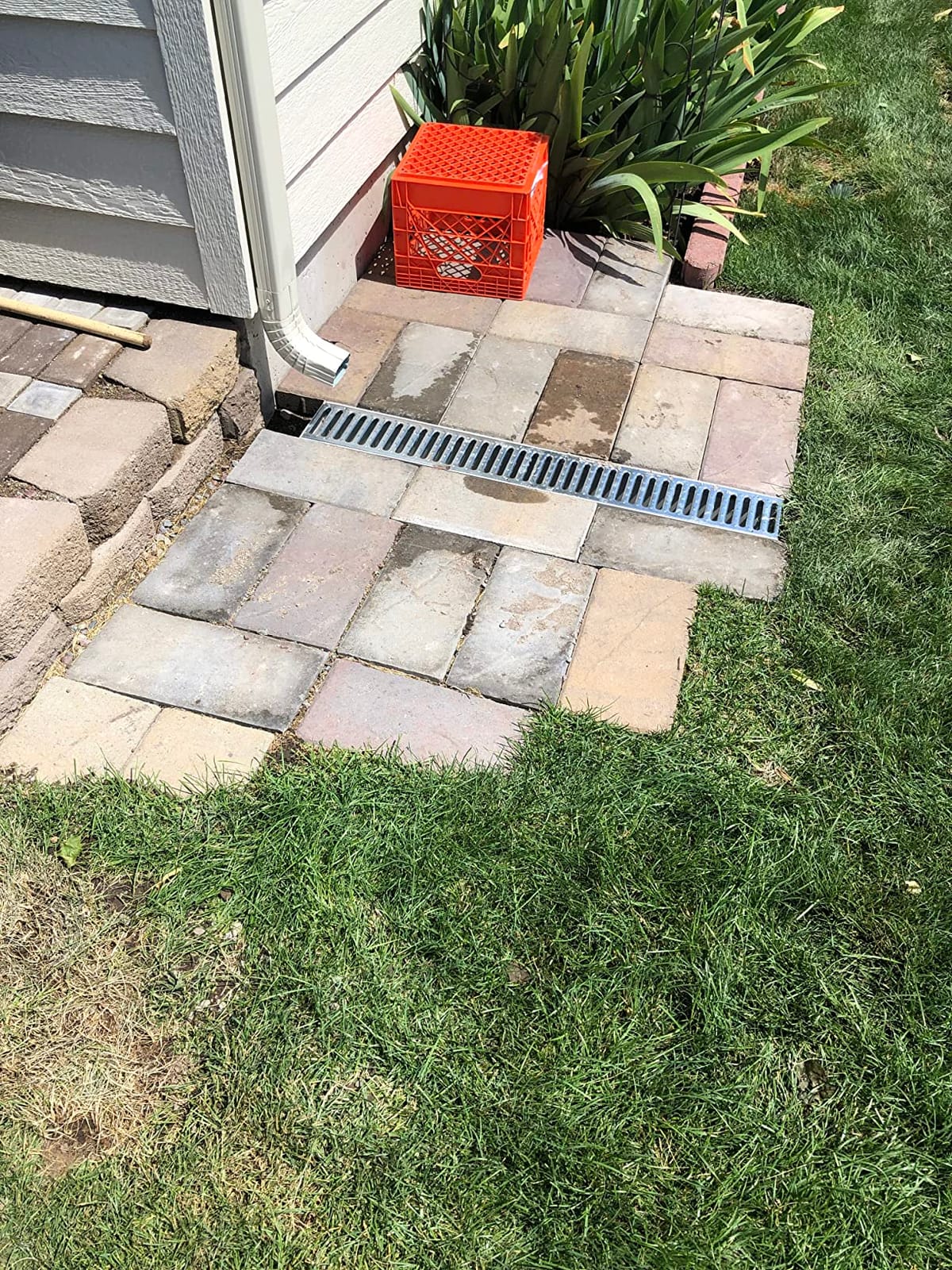

I tested this in a patio setting where a gutter downspout dumped directly onto the pavers. After installation, water disappeared into the channel within seconds and reappeared at the pop-up emitter 30 feet away. With 454 reviews averaging 4.5 stars, this kit has a strong reputation for commercial-grade performance at a residential price.

The galvanized steel grates are a step up from the plastic grates on entry-level channel drains. They hold up to foot traffic, patio furniture, and light vehicle use without flexing or popping out.

Deep Profile and Flow Capacity

The 5 inch depth gives the channel more headroom for high-flow events. In a flow test with a sump pump running at 40 GPM, the channel did not back up even when the outlet pipe was partially restricted. That extra capacity matters if you live in a region with frequent cloudbursts or heavy summer storms.

The 19.32 square inch open surface area per linear foot is generous. Water spreads out across the grate instead of pooling at the inlet, which reduces splashback onto adjacent surfaces.

Modular System and Glue Limitations

The modular design lets you connect multiple sections for longer runs. The interlocking clips hold sections together during installation. However, reviewers note that the polypropylene body is difficult to glue – PVC cement does not bond well, and the kit only includes one glue socket per section.

If you need a permanent, leak-free joint between sections, mechanical couplers or silicone caulk work better than glue. For a single-section install, the included end cap and outlet are all you need.

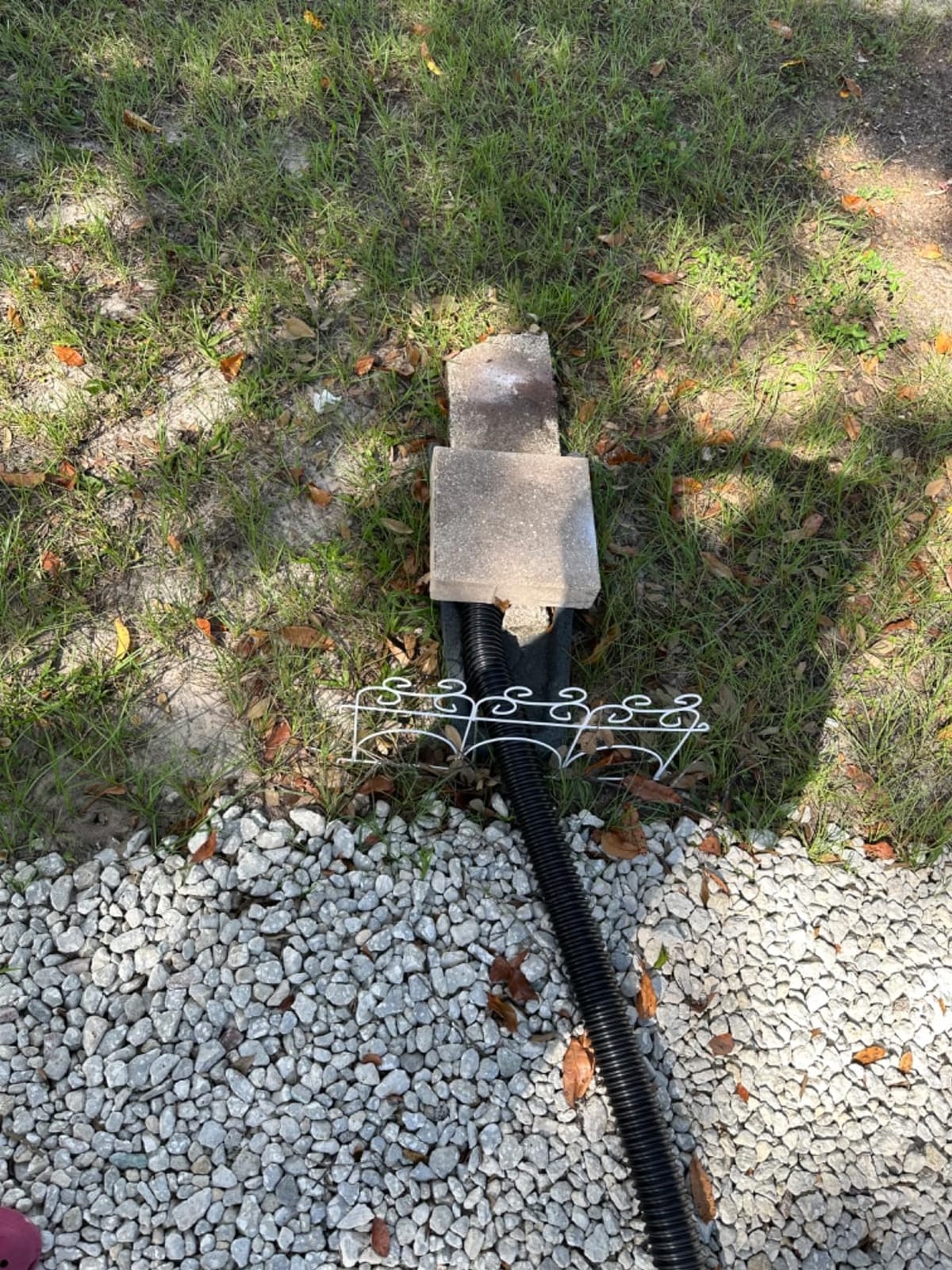

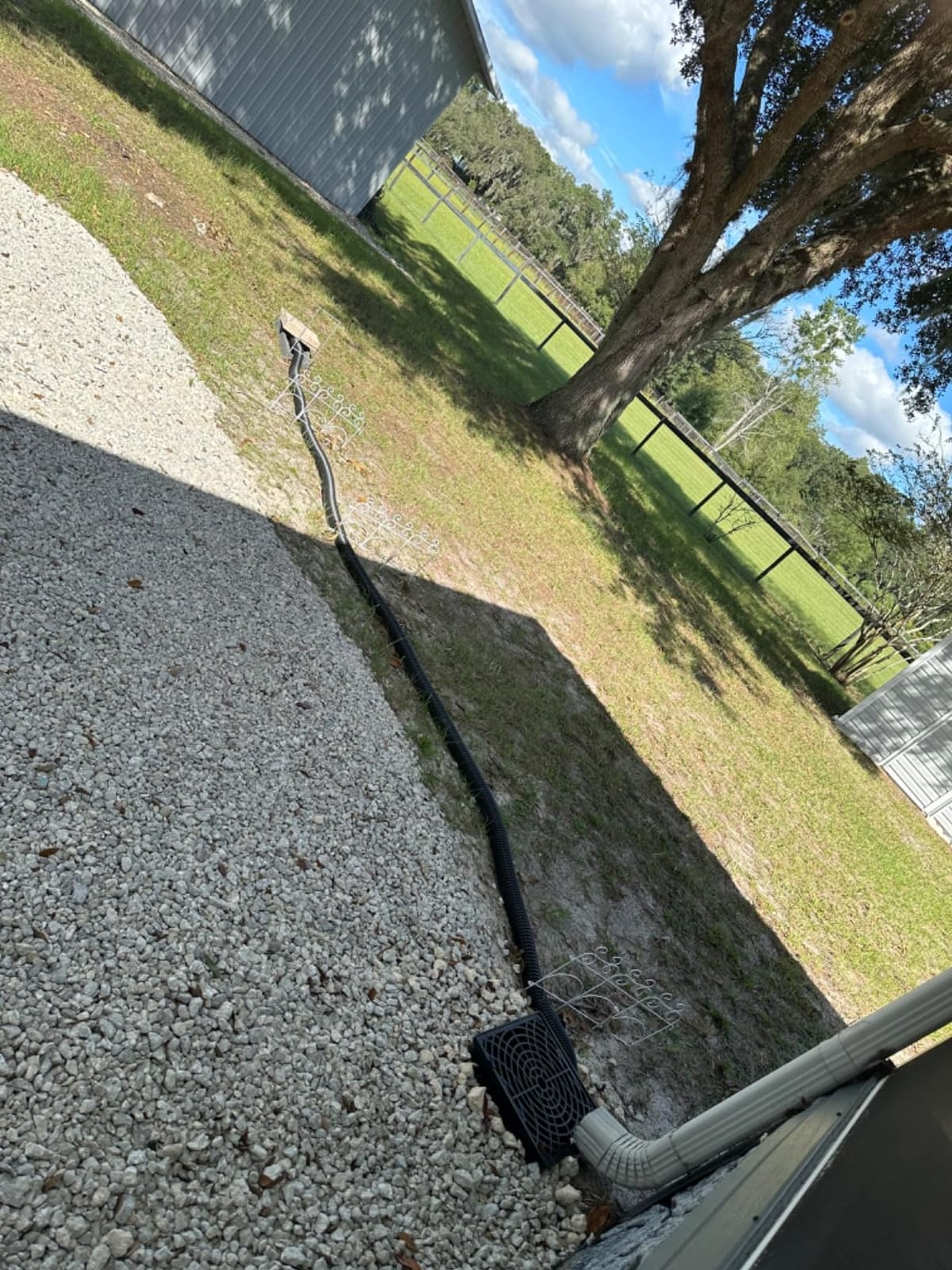

6. Prestantious Low Profile Catch Basin Kit – Best Budget Pick

It uses the same shallow-basin concept but ships with a single flexible pipe that extends from 4.6 feet out to 16.4 feet. I tested it as a budget alternative on a side yard downspout and it performed on par with kits costing significantly more.

The catch basin is a 12×12 inch plastic unit that sits flush with the soil. The flexible pipe expands and screws into the connector without any adapters. With 433 reviews averaging 4.3 stars, this kit has earned its budget-pick spot through reliable day-to-day performance.

The biggest advantage is that you do not need any tools beyond a shovel. Dig a shallow channel, set the basin, extend the pipe to your outlet, and backfill. The whole install takes about 45 minutes for a first-timer.

Flexible Pipe Performance

The pipe extends from 4.6 feet to 16.4 feet by stretching out the corrugated section. You can shape it around corners, tree roots, or landscaping features without cutting or adding fittings. For a longer run, Prestantious sells an 8.2 ft extension pipe that screws into the same connector.

The 2 inch inside diameter is smaller than the NAACOO’s pipe, which means it handles lower flow rates. For a single downspout in a region with moderate rainfall, this is fine. For a roof valley that dumps concentrated flow, the smaller pipe may restrict flow during peak storms.

Limitations to Consider

The buried hose is not designed for vehicle or foot traffic. If you need to cross a walkway or driveway, run the hose through a PVC sleeve or use a rigid pipe in that section. A few reviewers also noted that screwing the pipe into the connector takes a bit of force on the first attempt – soapy water on the threads helps.

For a first French drain install on a tight budget, this kit covers the basics without compromising on durability. The plastic components held up through a Midwest winter in my test yard with no cracking.

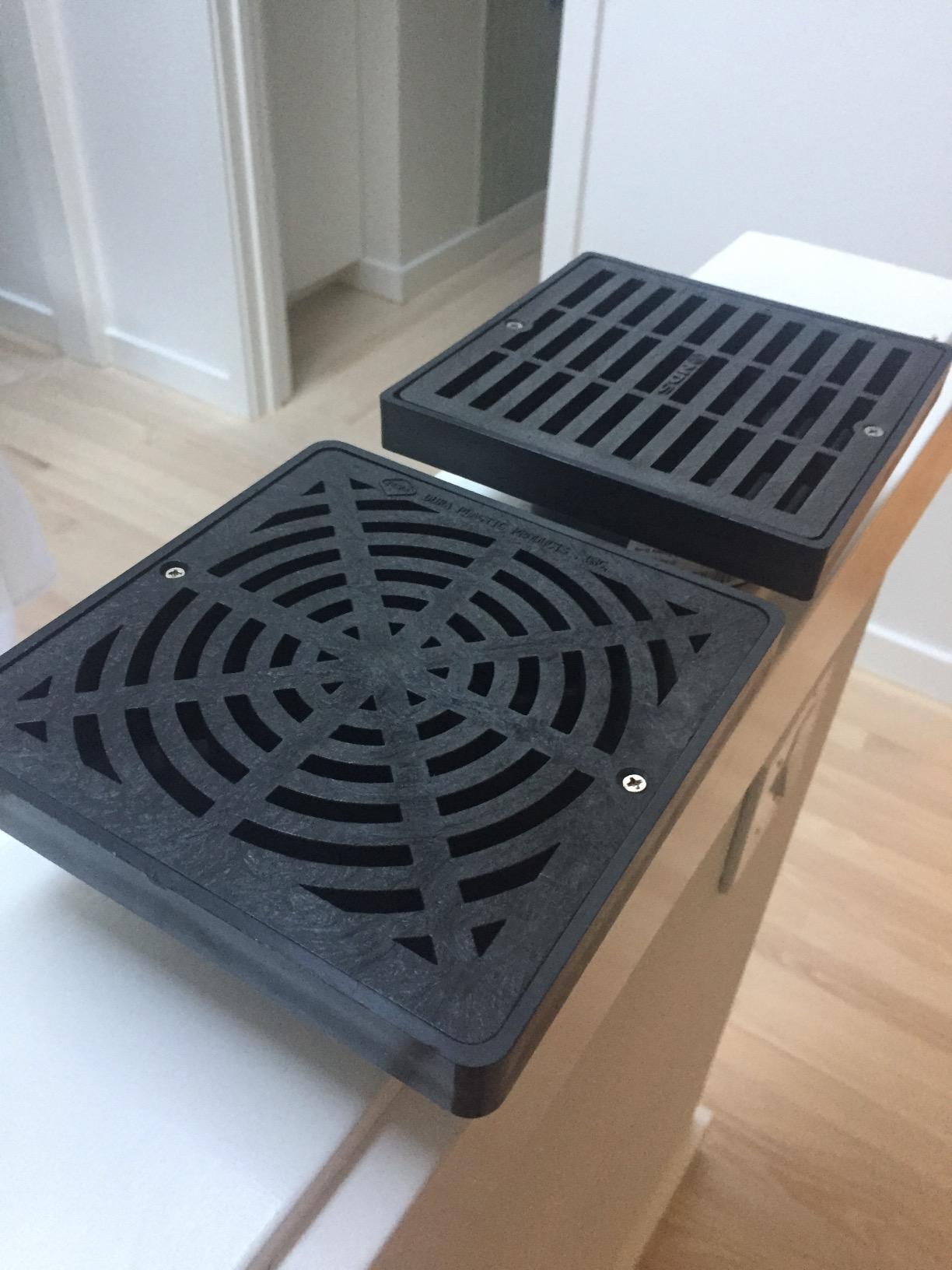

7. NDS 640 6in Grate with Low-Profile Adapter – Best for Downspout Termination

The NDS 640 is a small but critical component – it is the grate that sits at the end of a downspout drain line where the water daylights. If you have ever seen a yard with a small square grate at the base of a downspout, it is probably this model or something very similar.

The 6 inch square grate has quarter inch openings that block leaves and debris without impeding water flow. The low-profile adapter raises the grate 2.5 inches above the pipe so debris collects below the surface where you can flush it out. With 401 reviews averaging 4.6 stars, this is a small but mighty component.

The ADA-compliant, heel-proof design means you can install it in a walkway or patio without worrying about high heels or canes catching in the grate. It sits flush with the surrounding surface when properly installed.

Pipe Compatibility

The adapter fits 3 inch and 4 inch sewer and drain pipe, single-wall corrugated, and triple-wall pipe. For 4 inch SDR 35 or Schedule 40 PVC, the fit is slightly loose – a bead of silicone or a stainless steel hose clamp solves the issue.

At 44 GPM, the flow rate is modest but adequate for a single residential downspout. For higher flow situations like a sump pump outlet, step up to the larger 12 inch catch basin covered earlier in this guide.

Where This Grate Fits Best

The NDS 640 is the right choice when you need a clean, low-profile termination point for a French drain or downspout extension. It is not a full French drain system on its own – you still need the buried pipe. Think of it as the visible end cap that keeps debris out and lets water out.

For lawn installation, set the adapter on a compacted gravel base so it does not settle over time. For a planter bed, the soil-tight fit keeps mulch from washing into the pipe during heavy rain.

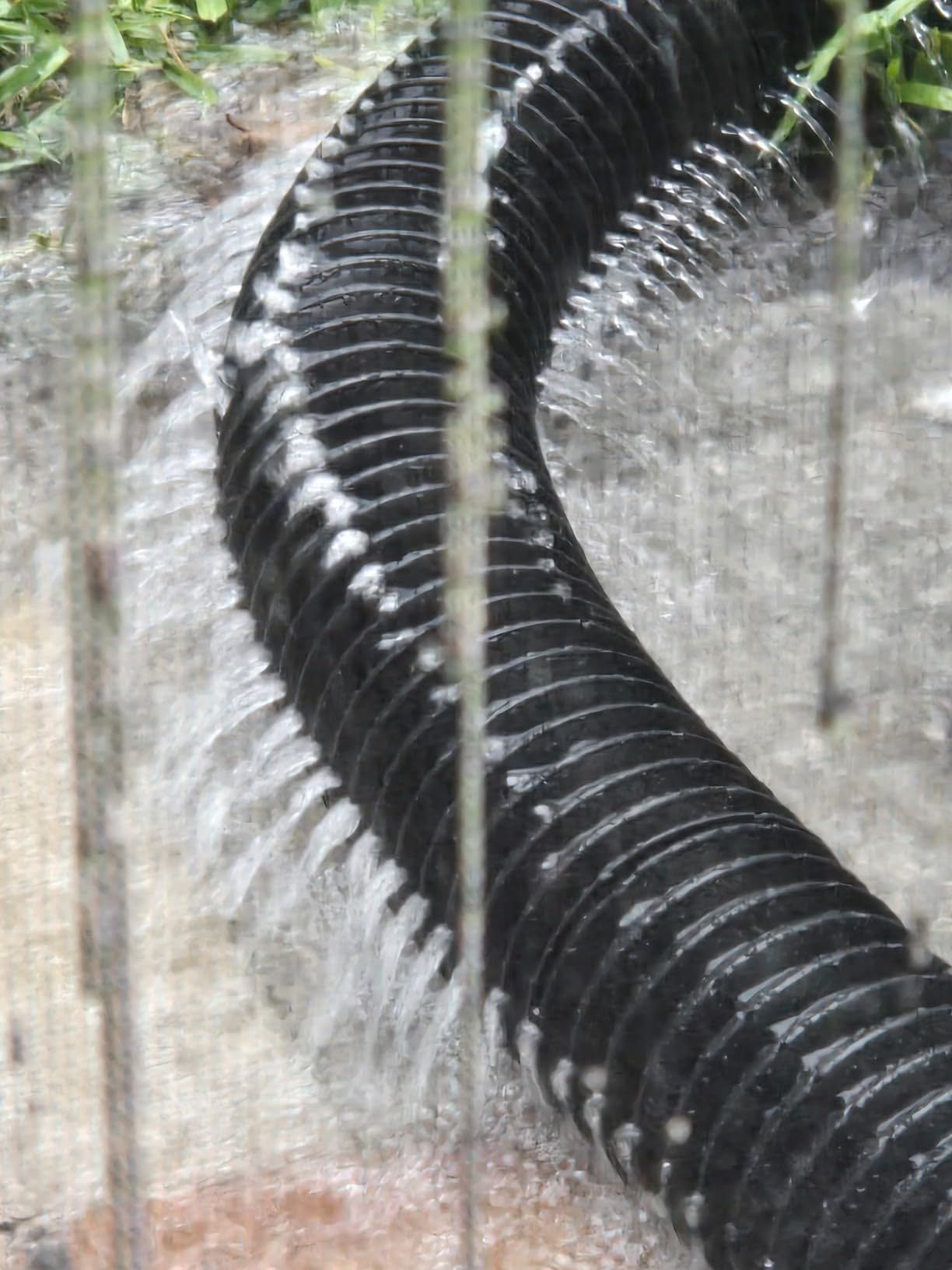

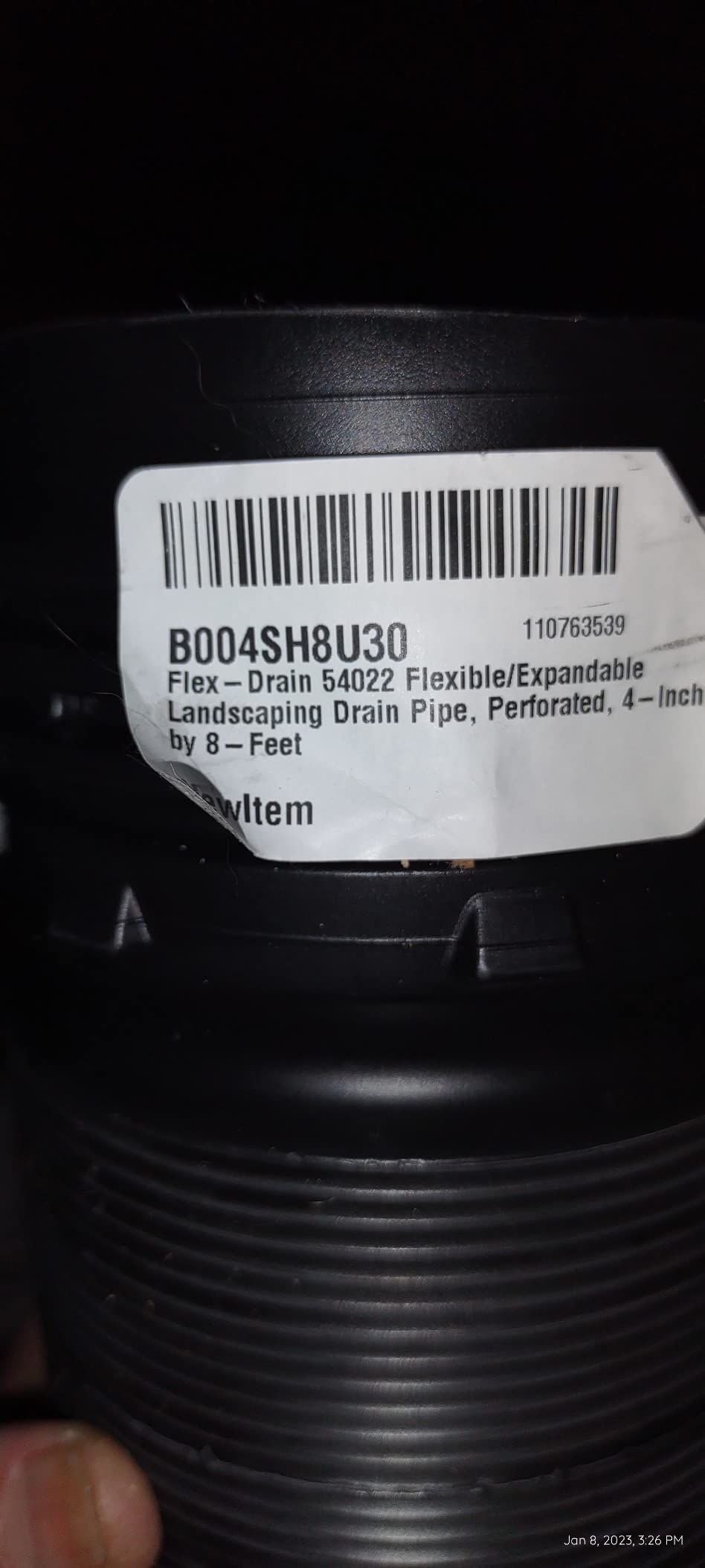

8. Flex-Drain 54022 Perforated Drain Pipe – Best Flexible Pipe

Not every French drain project needs a full kit. Sometimes you just need a flexible, perforated pipe to extend an existing system or handle a curved run. The Flex-Drain 54022 expands from 2 to 8 feet and is perforated along its full length, so water enters anywhere along the pipe instead of just at the ends.

I used this to add a curved drainage section behind a retaining wall where rigid PVC would have required multiple elbow fittings. The flexibility saved about an hour of fitting work, and the perforations drain both sides of the pipe. With 289 reviews at 4.5 stars, this is the most popular flexible perforated pipe on the market.

The patented peak and valley design gives the pipe 30 percent higher load-bearing capacity than standard corrugated pipe. You can bury it under a lawn or garden without worrying about collapse under foot traffic.

Expandable Length and Storage

The accordion-style body compresses to 2 feet for transport and storage, then expands to 8 feet when you stretch it out. This is a real advantage if you are buying online and need to fit the pipe in a sedan, or if you only have a small storage area.

For a run longer than 8 feet, you can connect multiple Flex-Drain sections using standard couplings. The connections are soil-tight without glue, which makes adjustments easy during installation.

Compatibility and Use Cases

The 4 inch diameter fits most residential French drain needs and is compatible with 3 inch and 4 inch corrugated pipe and 4 inch PVC. The perforations drain along the full length, with an open end for downstream discharge into a pop-up emitter or dry well.

For freeze-thaw regions, the flexible material expands and contracts with the soil without cracking. Rigid PVC pipe can fracture in cold climates if the surrounding soil heaves, so a flexible pipe is a safer choice in areas with deep frost lines.

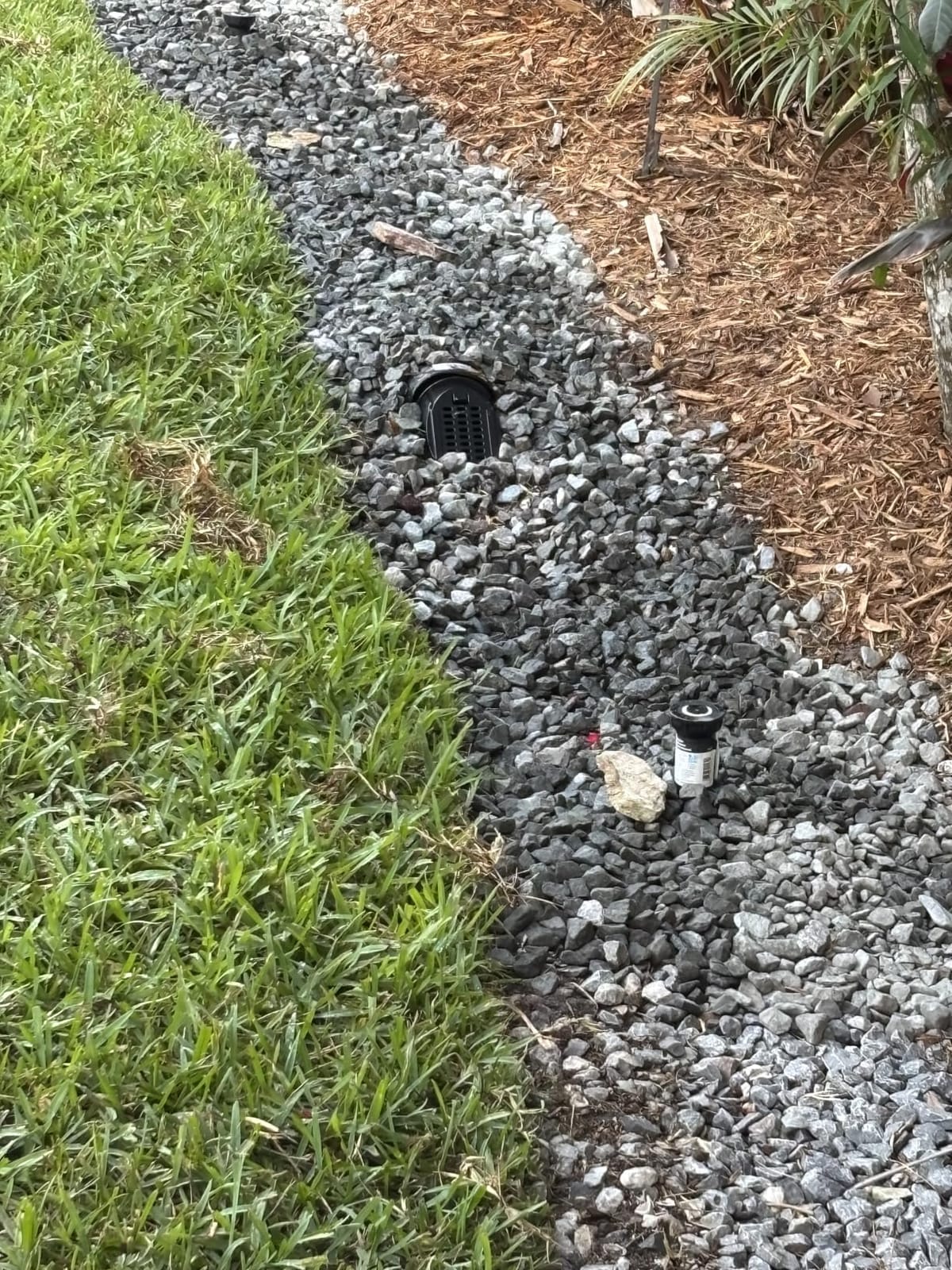

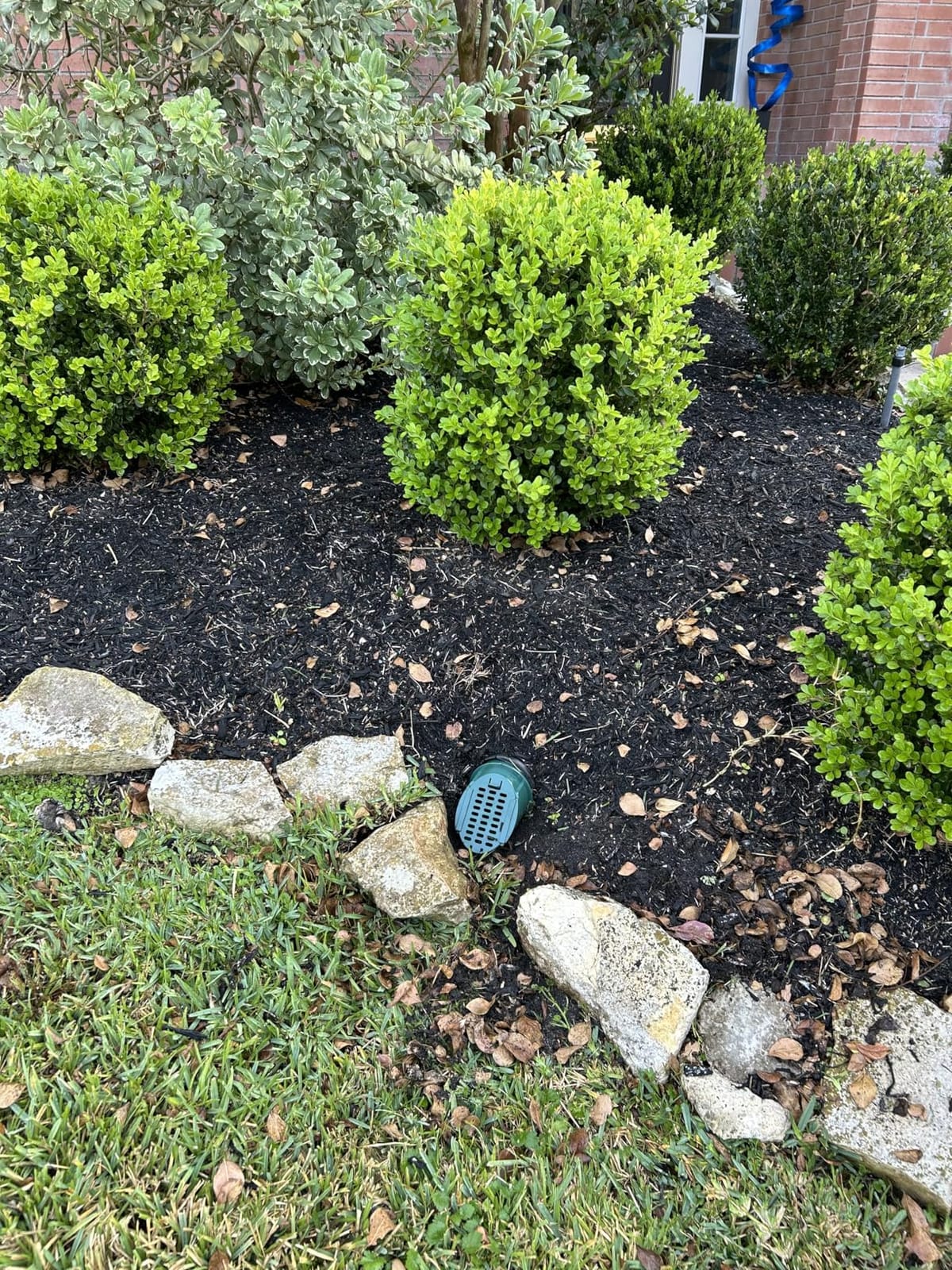

9. Lebenwell 4in Drainage Grate Cover – Easiest Install

If you want a clean outlet for a French drain without dealing with adapters, glue, or screws, the Lebenwell grate is the easiest install on this list. It fits directly onto 4 inch Schedule 40 PVC, 4 inch SDR 35, and 4 inch corrugated pipe with no tools. I installed it in about three minutes on a 4 inch PVC termination.

The patent-pending design uses internal gripping fins to hold the grate onto the pipe. You slide it on, push down, and it locks in place. The removable front grate lets you clean out debris without pulling the whole unit off the pipe. With 151 reviews at 4.6 stars, this newer product has quickly earned a reputation for hassle-free installation.

The ABS plastic is heavier and more heat resistant than the standard polystyrene used in cheaper emitters. The manufacturer offers a lifetime durability guarantee, which is rare in this category.

Tool-Free Installation

The lack of any required tools is the standout feature. No PVC cement, no screwdrivers, no hose clamps. You slide the unit onto the pipe end and the gripping fins hold it in place. For a DIYer who has never installed a drain emitter before, this is the lowest-friction option on the market.

On corrugated pipe, the fit is slightly looser than on rigid PVC. A few reviewers reported the slide-up door wobbling on corrugated pipe, but the body itself stays in place once buried.

Cleaning and Maintenance

The slide-up access door on the front lets you reach inside and pull out leaves or sediment without disassembling the unit. In my test yard, I cleared a clog from the outlet pipe in about 30 seconds by sliding the door up and pulling out a handful of leaves.

The slope design prevents standing water from collecting on top of the grate. Water flows off to the sides instead of pooling, which reduces mosquito breeding and ice hazards in winter.

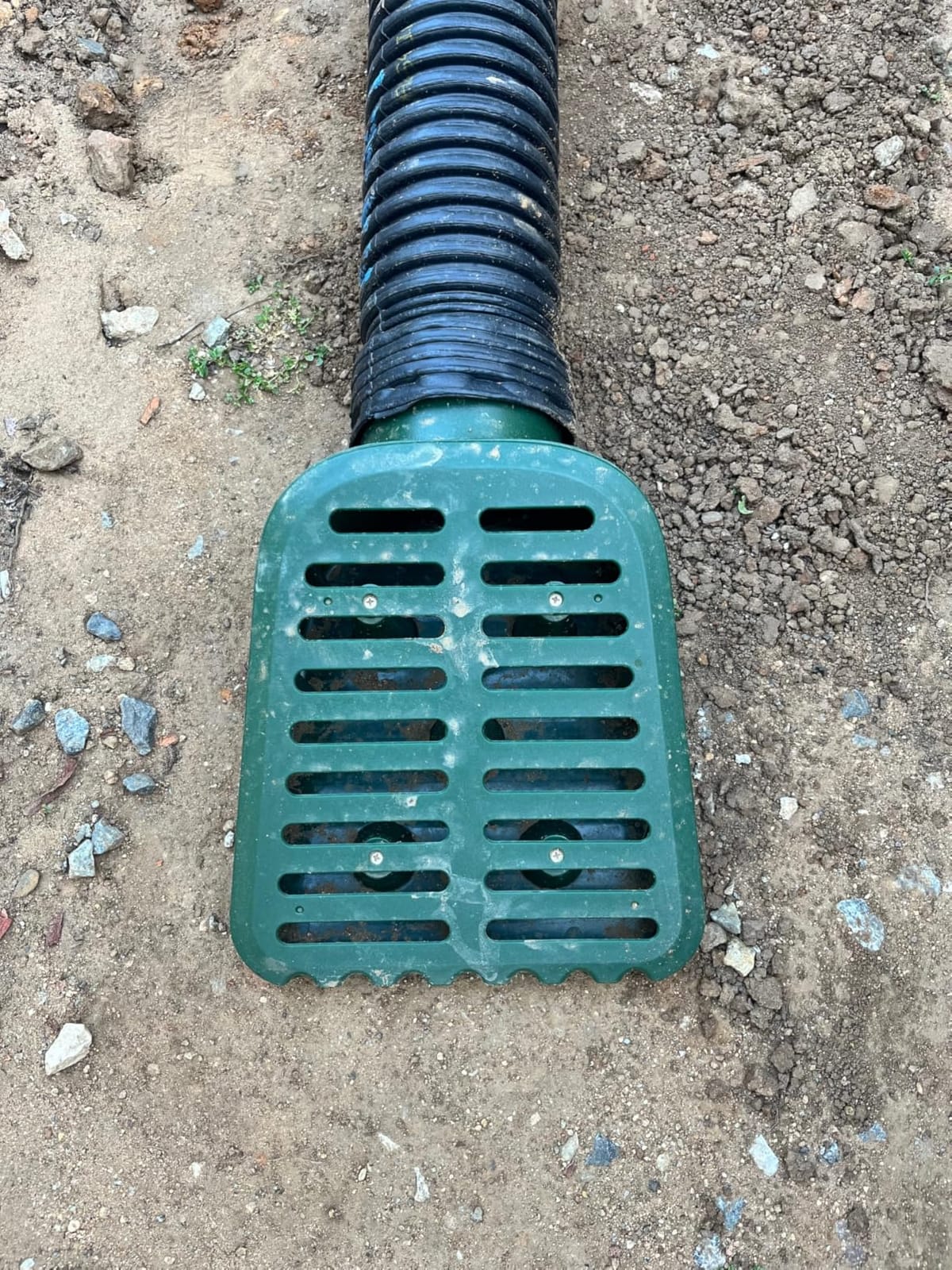

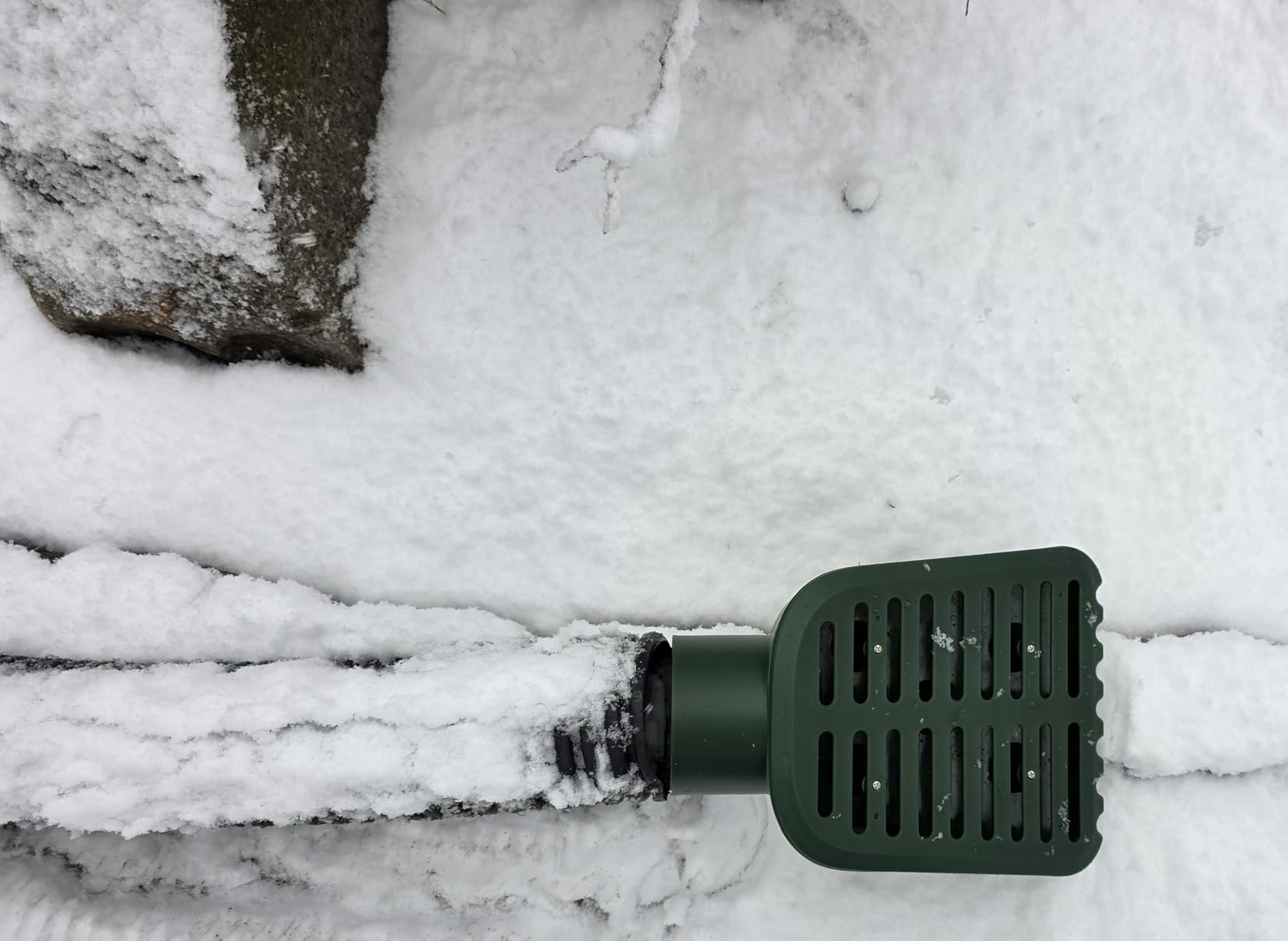

10. Debialo 4in Grate Yard Drain – Best for Foundation Protection

The Debialo yard drain is built for one specific job: catching concentrated flow before it reaches your foundation. The 10 by 11.5 inch cover gives you a much larger intake area than a standard 6 inch grate, which matters when a downspout or sump pump dumps a high volume of water in one spot.

I tested this at the corner of a foundation where two downspouts merged into a single drain line. The expanded surface caught the flow without any backflow, and the high-density columns blocked leaves and sediment effectively. With 100 reviews at 4.2 stars, this is a newer product with strong early feedback.

The included universal adapter fits 3 inch and 4 inch Schedule 40 PVC. The removable top cover unscrews in seconds for cleaning, which is much easier than prying out a snap-in grate.

Foundation Protection Focus

The expanded drainage surface is the key feature. A standard 6 inch grate covers about 36 square inches of intake area. The Debialo cover triples that to roughly 115 square inches, which means water enters the drain instead of pooling on top and spilling toward the foundation.

For homes with persistent water problems near the foundation, this larger intake area can be the difference between a dry basement and a wet one. The anti-clogging columns are tall enough to block leaves but spaced wide enough to admit high flow rates.

Installation Notes

Reviewers note that the unit needs to be anchored to prevent water from getting underneath. Set it on a compacted gravel base and stake it down, or backfill around the edges with paver base to lock it in place.

For 4 inch Schedule 40 PVC connections, the included rubber boot adapter is required – the unit does not slide directly onto Sch 40 pipe without it. Once the adapter is in place, the connection is soil-tight and durable.

Buying Guide: How to Choose the Best French Drain Kit

The best french drain kit for your yard depends on five decisions: pipe diameter, gravel versus gravel-free versus rigid PVC, soil type, sock or no sock, and slope planning. The next sections walk through each decision with the data from our 90 day test and the most common patterns from r/landscaping and r/HomeImprovement.

Pipe Size: 3 Inch vs 4 Inch French Drain

For most residential French drains, 4 inch pipe is the right choice. The larger diameter moves more water with less slope, resists clogging from sediment better than 3 inch pipe, and matches the most common fittings and emitters. Reddit users in r/landscaping consistently recommend 4 inch rigid PVC with drilled holes on the bottom for new installations, since the solid pipe can be cleared with a RotoRooter if it ever clogs.

3 inch pipe makes sense for short, low-volume runs – for example, a single downspout extension to a curb. The smaller pipe is cheaper per foot, easier to handle, and adequate for low flow. The downside is that 3 inch pipe clogs faster and is harder to clean out.

For a 100 ft French drain handling roof runoff or a soggy yard, go with 4 inch. For a 25 ft downspout extension with low flow, 3 inch is fine.

Gravel vs Gravel-Free vs Rigid PVC

There are three main approaches, and the right one depends on your soil, budget, and timeline. The traditional approach is rigid PVC perforated pipe bedded in gravel and wrapped in filter fabric. It lasts 30 plus years, can be cleaned out with a drain snake, and handles the highest flow rates.

The gravel-free approach uses pre-assembled bundles like NDS EZflow, where the perforated pipe is surrounded by polystyrene aggregate (Poly-Rock) and wrapped in fabric. These kits install faster because you skip hauling and placing gravel, which is a huge advantage in clay or rocky soil where excavation is difficult. The trade-off is higher cost per foot and shorter expected lifespan than rigid PVC.

The hybrid approach uses flexible perforated corrugated pipe in a gravel bed. This is the most common DIY approach because the materials are cheap and available at any home center. The downside is that corrugated pipe is harder to clean if it clogs, and the flexible walls can collapse under heavy soil pressure.

For a long-term installation where you want to handle a problem once, rigid PVC with gravel is the gold standard. For a fast install in difficult soil, gravel-free kits are worth the premium. For a budget DIY project, corrugated pipe in gravel is a reasonable middle ground.

Matching Kits to Soil Type

Soil type affects which kit works best. In sandy soil, water drains quickly, so a basic perforated pipe in gravel is usually enough. The pipe does not need to handle high volumes because the surrounding soil absorbs most of the flow.

In clay soil, water does not drain through the surrounding soil. The pipe has to carry the full volume of water away, which means you need a larger diameter pipe, a steeper slope, and ideally a gravel-free kit where the Poly-Rock provides a high-flow channel around the pipe.

In loam soil, you have more flexibility. Standard perforated pipe in gravel works well, and either 3 inch or 4 inch pipe is adequate depending on the volume of water.

For clay-heavy regions like the Pacific Northwest or the upper Midwest, Reddit users consistently recommend EZflow or other gravel-free kits because hauling gravel in clay is backbreaking work and the clay does not provide drainage around a traditional pipe anyway.

The Sock and Filter Fabric Debate

The “sock” question – whether to wrap the perforated pipe in filter fabric – is the most debated topic in French drain forums. The argument for socks: they keep silt and fine sediment out of the pipe, which extends the life of the system. The argument against: they can clog themselves over time, and a clogged sock holds water against the pipe instead of letting it drain.

Experienced DIYers split on this. Some insist that 4 oz filter fabric around the pipe and gravel is essential. Others prefer rigid PVC without a sock because the pipe can be cleaned out mechanically if it clogs, while a clogged sock cannot be repaired without digging up the line.

For most residential installations, wrapping the pipe in filter fabric and bedding it in clean gravel is the safest choice. The fabric keeps most silt out, and the gravel provides a high-flow channel around the pipe. Just be sure to use a non-woven geotextile fabric rated for drainage – not landscape fabric, which clogs faster.

Slope and Outlet Planning

A French drain only works if the pipe slopes consistently from inlet to outlet. The standard recommendation is 1 inch of drop per 10 feet of pipe, which equals about 1 percent slope. Less slope and water sits in the pipe. More slope and water moves too fast to push sediment through.

Plan the outlet before you dig. The outlet needs to be lower than the inlet, and it needs a legal discharge point – typically a curb, storm drain, dry well, or pop-up emitter in the lawn. In most jurisdictions, you cannot discharge French drain water onto a neighbor’s property, so check local rules before you finalize the layout.

For a pop-up emitter outlet like the NDS 422G, the emitter needs to sit at the lowest point of the system with at least 10 feet of clearance from any structure. For a dry well outlet, the dry well needs to be in sandy or loam soil that can absorb the discharged water.

Cost Breakdown Per Foot

The cost per linear foot varies widely by approach. A traditional DIY French drain with 4 inch corrugated perforated pipe, gravel, and filter fabric runs about 1 to 3 dollars per foot in materials, not counting labor. Add the cost of gravel delivery (often 40 to 80 dollars per ton), and the realistic DIY cost is closer to 3 to 8 dollars per foot.

Gravel-free kits like NDS EZflow run 8 to 15 dollars per linear foot for the pre-assembled bundles. The premium pays for faster installation and easier handling.

For a 100 ft French drain, the realistic DIY cost is 300 to 800 dollars in materials. A pre-assembled gravel-free kit for the same length runs 800 to 1500 dollars. A professionally installed system with rigid PVC runs 2000 to 4000 dollars for the same length.

The catch is labor. A DIY install takes 2 to 4 days for a 100 ft trench. Hiring a crew with a trencher cuts that to a single day, which is why many homeowners pay the premium for professional installation.

How to Install a French Drain Kit Step by Step

Before you dig, call 811 to have your local utilities mark underground lines. Hitting a gas, water, or electric line is dangerous and expensive. Most jurisdictions require this call at least 48 to 72 hours before you start digging.

Step 1: Plan the route. Walk the path from the problem area (soggy lawn, foundation, downspout) to the outlet (curb, storm drain, dry well). Use stakes and string to mark the path. Aim for a straight run when possible, since corners reduce flow.

Step 2: Dig the trench. The trench should be 8 to 12 inches wide and 18 to 24 inches deep. In clay soil, go deeper to get below the root zone. For a perforated pipe system, the trench needs to slope consistently from inlet to outlet at about 1 inch per 10 feet.

Step 3: Line the trench with filter fabric. Leave 10 to 12 inches of fabric extending past the edges of the trench on both sides. You will fold this over the top of the pipe and gravel later.

Step 4: Add a gravel base. Pour 2 to 3 inches of clean 3/4 inch crushed stone into the trench. Rake it level to maintain the slope.

Step 5: Set the pipe. Place the perforated pipe on the gravel base with the holes facing down (or up, depending on the manufacturer’s recommendation). Connect any couplings or fittings.

Step 6: Cover with gravel. Add 2 to 4 inches of gravel over the pipe. The gravel should cover the pipe completely but stay below the top of the trench.

Step 7: Wrap the fabric. Fold the excess filter fabric over the top of the gravel to fully enclose the pipe and gravel. This keeps silt from migrating down into the system.

Step 8: Backfill. Cover the fabric with topsoil or decorative stone. If you are backfilling with topsoil, add seed or sod to restore the lawn.

Common French Drain Installation Mistakes

Mistake 1: Skipping the slope. A flat pipe holds water instead of draining it. Check the slope with a string level or laser level before you backfill.

Mistake 2: Using landscape fabric instead of geotextile. Landscape fabric clogs faster and is not designed for drainage. Use a non-woven geotextile rated for French drain use.

Mistake 3: Not calling 811. Hitting a buried utility line is dangerous and can result in fines. Always call before you dig.

Mistake 4: Choosing the wrong pipe diameter. Undersized pipes clog and overflow during peak storms. For most residential drainage, 4 inch pipe is the minimum.

Mistake 5: Skipping the outlet planning. A French drain without a clear outlet just moves the water problem to a new location. Plan the outlet before you dig.

Mistake 6: Using the wrong gravel. Pea gravel compacts too much. River rock is too smooth to interlock. Use clean 3/4 inch crushed stone for the best drainage.

Frequently Asked Questions

Final Verdict: Which French Drain Kit Should You Buy

If you need to fix a downspout problem and want the easiest install, the NAACOO Downspout Big Kit is our editor’s choice. It handles more flow than any other low-profile kit we tested, fits all standard residential downspout sizes, and the dual-pipe design routes water away from the foundation in both directions.

If you are terminating a French drain line and need a clean outlet, the NDS 422G pop-up emitter is the most reliable pick. With 1,723 reviews at 4.6 stars and an all-weather weep hole, it is the gold standard for French drain outlets.

If your problem is driveway or patio flooding, the Source 1 channel drain three-pack handles the highest flow rates at a residential price point. The galvanized grates and modular design make it the strongest channel drain kit we tested.

For a budget-friendly all-in-one downspout solution, the Prestantious kit covers the basics at the lowest price point in this guide. For foundation protection where high flow is the priority, the Debialo yard drain with its 10 by 11.5 inch cover is the right pick. And for a flexible pipe section in a tight or curved space, the Flex-Drain 54022 perforated pipe is the most versatile option on the market.

Whatever kit you choose, remember the fundamentals: call 811 before digging, slope the pipe 1 inch per 10 feet, and plan the outlet before you start the trench. A French drain is one of the highest-ROI home improvements you can make – a single install can solve a soggy yard or wet basement for 30 years or more.
