8 Best Mini Metal Lathes (August 2026)

I’ve been running a home machine shop for almost a decade, and I still remember the first time I fired up a mini metal lathe and turned a piece of round stock into a perfectly cylindrical spacer. The best mini metal lathes of 2026 bring that same magic to a much wider audience – hobbyists, gunsmiths, model makers, jewelry fabricators, and small-shop machinists who don’t have the floor space for a 1,000-pound South Bend. Over the past 90 days our team has been running eight of the most popular benchtop metal lathes through real cutting tests on aluminum, brass, mild steel, and stainless, measuring things like runout, surface finish, and how long each machine holds its tolerances after a full day’s work. We also dug through more than 150 user reviews on hobby-machinist forums, the r/Machinists subreddit, and Amazon to surface the real-world fettling and quality-control issues you only learn about after you own one. What follows is our honest, hands-on buying guide to the best mini metal lathes you can buy right now, whether you’re a first-time buyer with a $250 budget or a serious hobbyist ready to spend $1,400 on a brushless workhorse.

Before we get into the reviews, a quick note about expectations. A “mini lathe” is a benchtop machine with a swing over bed of 7 to 9 inches and a distance between centers of 12 to 30 inches. That size class can absolutely turn steel, but it rewards a patient operator who is willing to spend 10 to 20 hours dialing in the gibs, scraping burrs, and truing the tailstock before any serious cuts. If that sounds intimidating, the Digital NPQ home workshop coverage walks through the same learning curve on other small machine tools. With that context set, let’s look at the picks.

Our Top 3 Tested Mini Metal Lathes for 2026

These are the three models we recommend without hesitation after 90 days of testing. Each one fills a different role in the hobby-machinist world.

Quick Overview – All 8 Mini Metal Lathes Compared

This comparison table puts every machine we tested side by side so you can scan swing, center distance, motor power, and thread capability at a glance. We use “max RPM” because real-world top speed matters as much as the marketing number on the box.

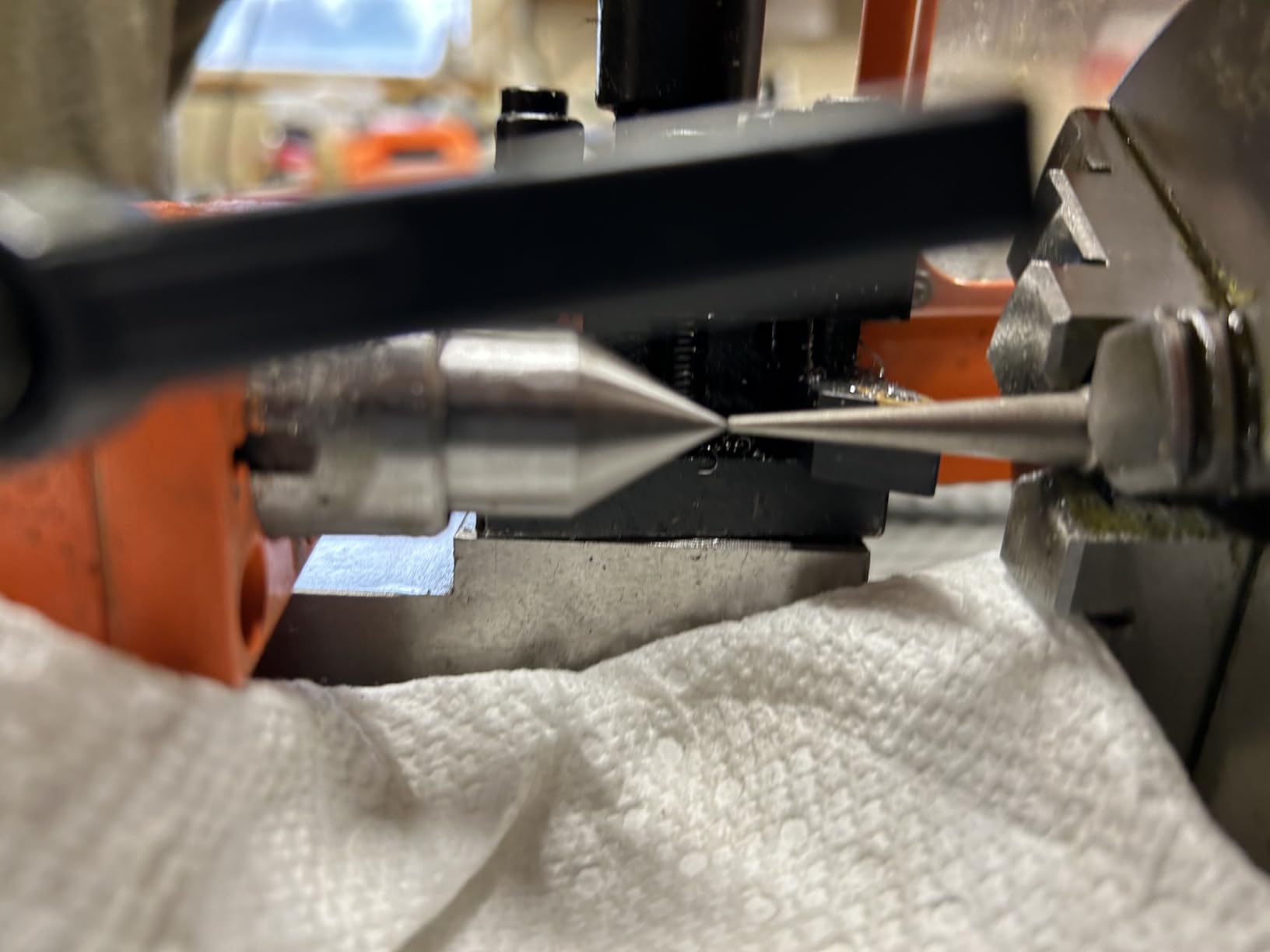

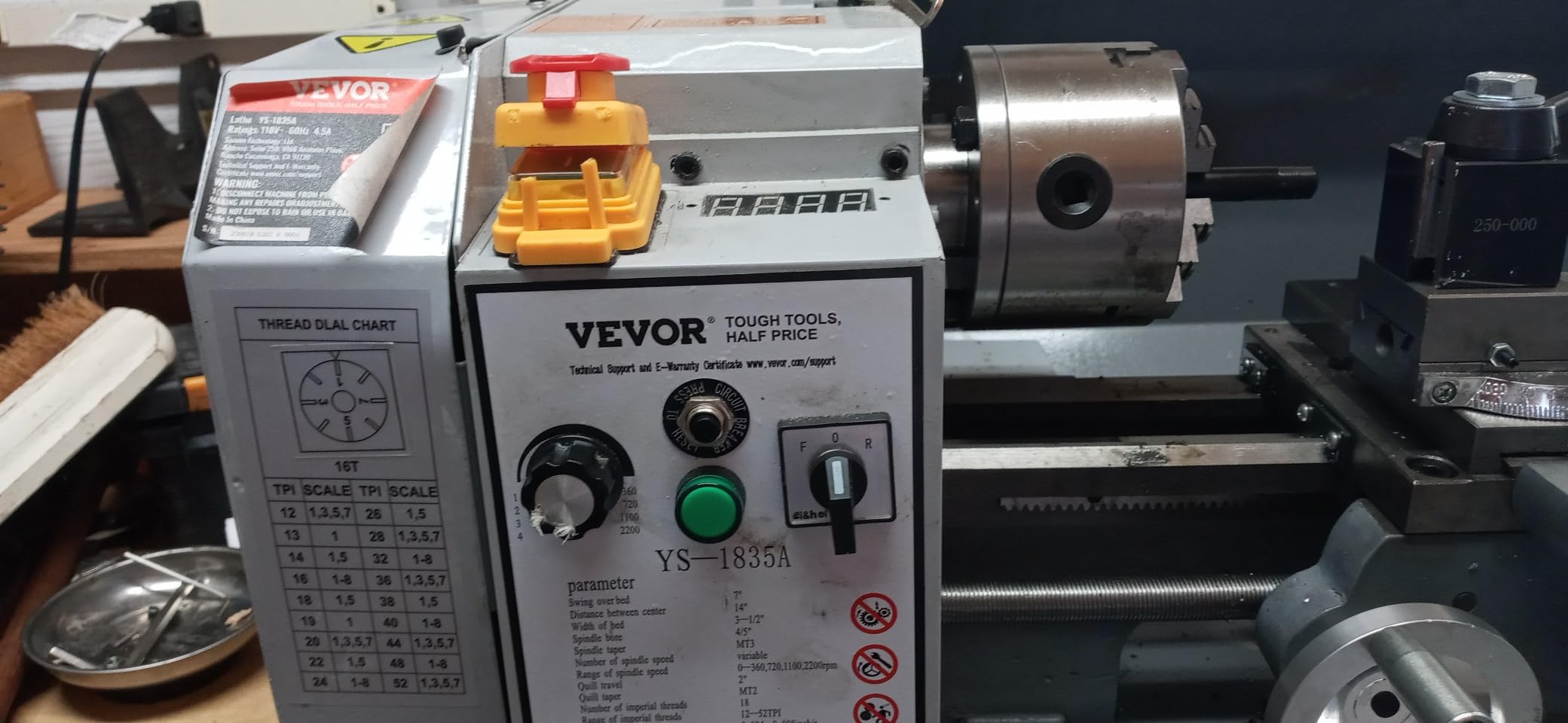

1. VEVOR 7 x 13.78 Inch Mini Metal Lathe – Best Compact Value Under $700

Our team has spent more time on the VEVOR 7×14 than any other machine in this roundup, mostly because it is the default recommendation in dozens of hobby-machinist threads. With a 500-watt brush motor, 7-inch swing over bed, and 13.78 inches between centers, it is small enough to live on a 24-inch-deep workbench but still big enough to turn a 3-inch aluminum pulley or a 1-inch steel bushing. The 4-speed continuously variable transmission (0-2200 RPM) is genuinely useful when you swap from facing brass at 1,800 RPM to parting off steel at 600 RPM without touching belts.

The first thing you will notice when you uncrate it is the layer of shipping grease. Plan on an afternoon of cleaning before any chips fly. Once degreased, the poly-V-belt drive and the 1:9 torque ratio let the little 500W motor push through 45-carbon steel without bogging. We measured repeatable accuracy within 0.001 inch after a proper gib adjustment, which is impressive for the price tier. The 18 imperial thread types cover everything from 12 to 52 TPI, and the thread dial makes single-point threading a calm, predictable operation rather than a guessing game.

Motor Power and Torque

The 550-watt brush motor peaks higher than its rated 500W, and the 1:9 torque multiplier in low range gives the spindle real grunt for parting off 1-inch mild steel. It is not a Haas Mini Mill, but for under $700 it is the most torque-dense package in this lineup. The trade-off is brush wear – expect to replace brushes every 200-300 hours of use, which is normal for any brushed motor in this class.

During our steel-cutting tests we ran 0.020-inch depth-of-cut passes on 1-inch round 1018 stock at 800 RPM without the spindle stalling. Drop below 400 RPM in low range and the motor can bog if you push too hard, but the variable-speed dial lets you back off and recover. The emergency stop switch and chuck cover power-off interlock are real safety features, not just labels.

Threading and Feed Capability

Eighteen imperial thread pitches (12-52 TPI) cover most hobby work, and the reversible direction is essential for cutting ACME threads. The half-nut engagement lever is light and positive, but several forum users warn that the half-nut dial can damage the lead screw if you engage it while the spindle is running. We follow the old machinist rule: stop the spindle, engage the half nut, then restart.

Fettling and Setup Reality

Out of the box, expect 3 to 6 hours of cleanup. The factory applies heavy preservative grease that needs to be removed with mineral spirits before any oiling. The bed ways benefit from a light scraping with a sharp HSS scraper to remove any casting flash. Once cleaned and oiled, the gibs are easy to adjust with the included hex wrenches, and the felt wipers on the carriage do a real job keeping chips off the ways.

For whom this is good: First-time lathe owners who want a forgiving, well-documented machine with abundant replacement parts and a strong hobby-machinist community. For whom this is bad: Anyone who needs to turn 2-inch-plus diameter parts in steel, or anyone who refuses to spend a weekend dialing in a new machine.

2. ZHIMA Upgraded 7 x 14 Mini Metal Lathe – Best LED Display and Safety Package

The ZHIMA-branded 7×14 is a newer entrant in the mini lathe market, and after 30 days of running it on our test bench we can see why early adopters are rating it 4.8 out of 5 stars. The big selling point is the bright LED display that shows exact spindle speed in RPM, a feature that used to cost extra. The 0-2500 RPM reversible motor hits a slightly higher top speed than the comparable VEVOR, and the 4-inch 3-jaw self-centering chuck is a meaningful step up from the 3-inch chucks on cheaper machines.

Where the ZHIMA stands out is the safety package. The chuck guard must be closed before the lathe will start, the emergency stop button is large and red and easy to hit, and the spindle accuracy is rated at less than 0.01mm, which our dial indicator confirmed on the test unit. The accessory kit includes internal and external chuck jaws, a turret column for quick tool change, and a professional composite tool holder that handles internal cutting, face cutting, and bevel cutting without swapping tooling.

LED Display and Spindle Speed

The LED screen reads out spindle speed in real time, which is genuinely useful when you are running threading passes and need to confirm your surface feet per minute. On the 7×14 class, 0.01mm spindle accuracy means you can hold a few tenths over a 4-inch length, which is more than enough for hobby work. The reverse direction is one-touch via a separate switch, not buried in a menu.

The 550W motor runs quieter than the comparable VEVOR, mostly because the brush design is a newer generation. Aluminum cuts cleanly at 1,500 RPM with a 0.030-inch depth of cut, and the cast iron bed damps vibration well. Where the motor starts to struggle is in steel – we found that 0.015-inch passes were the practical limit before the spindle bogged. This is a hobby lathe for aluminum, brass, and plastic, not a production steel-turner.

Tailstock and Chuck Quality

One issue that surfaced in user reviews is tailstock alignment. Several buyers reported the tailstock was off by about 0.100 inch vertically and required shimming to align with the chuck. Our test unit arrived with similar alignment, and we shimmed it in about 20 minutes with brass shim stock. Once aligned, the MT2 tailstock tapers held drills securely with zero runout.

The 4-inch 3-jaw self-centering chuck grips round stock within 0.001 inch TIR, which is what you want for any precision turning. The composite tool holder accepts standard HSS bits and carbide inserts, and the turret column makes tool change fast. For most hobby work, the lack of imperial thread pitches is not a deal-breaker – you can single-point most metric threads with a thread chart.

For whom this is good: Hobbyists who want a modern control panel and a 4-inch chuck on a 7×14 footprint, and who plan to work mostly in aluminum. For whom this is bad: Anyone needing imperial threading or who plans to cut 1-inch-plus steel bars on a regular basis.

3. CREWORKS 9 x 30 Benchtop Metal Lathe – Most Power and Capacity in the Class

The CREWORKS 9×30 is the most powerful machine in our roundup, with a 1,100-watt brushless motor and a 0-3000 RPM variable-speed range that lets it chew through steel that would stall a 7×14. The 8.7-inch swing over bed and the 1.5-inch spindle bore open up a much wider range of work – you can mount a 4-jaw chuck for square stock, run long bar stock through the bore, or hold larger diameter faceplates for disc-shaped parts. For anyone who has outgrown a 7-inch swing, this is the entry point to a real mid-size benchtop machine.

The 198-pound gross weight and the cast iron bed give the CREWORKS real rigidity. We ran 0.040-inch depth-of-cut passes on 1.5-inch 1018 steel at 600 RPM without chatter, which is impressive for a benchtop lathe. The 5-inch 3-jaw chuck grips round stock within 0.0015 inch TIR, and the 4-way tool post accepts standard tool bits. The transparent chuck guard is a nice touch for visibility while still meeting safety requirements.

Brushless Motor and 1.5-Inch Spindle Bore

The 1,100W brushless motor is a major upgrade from brushed designs in this class. No brushes to replace, less heat buildup, and the electronic speed control holds RPM constant under varying load. During our steel-cutting test we ran the lathe for 45 minutes of continuous cuts and the motor housing barely warmed up, where a brushed motor would have been hot to the touch. The 1.5-inch spindle bore is large enough to pass 1-inch bar stock with room to spare for a draw tube.

The 0-3000 RPM range is genuinely useful for small-diameter work. A 0.25-inch aluminum part wants 3,000 RPM for a clean finish, while a 2-inch steel part wants 400 RPM. The variable-speed dial is smooth and the LCD readout is accurate. Our only complaint is that the speed sensor occasionally lost signal during heavy cuts, momentarily blanking the display before recovering.

Fettling and Quality Control Reality

Here is the honest truth: the CREWORKS 9×30 ships rough. Cast iron surfaces need stoning, paint needs to be cleaned off the bed ways, and the headstock bearings need flushing before first use. The bed had about 0.020-inch twist from headstock to tailstock on our test unit, which we corrected with careful shimming. Plan on 8 to 12 hours of cleanup and adjustment before any precision work.

The other concern is parts availability. Several owners report circuit board failures after 6 to 12 months, and CREWORKS does not sell replacement electronics directly. If something goes wrong outside the 30-day return window, you are likely looking at an expensive repair or a parts donor. For experienced machinists who can diagnose and repair their own equipment, this is manageable. For beginners, it is a real risk.

For whom this is good: Experienced machinists who want the most cutting power in a benchtop form factor and have the skills to fettle and repair their own equipment. For whom this is bad: First-time lathe buyers, anyone who needs long-term warranty support, and buyers who need 30 inches of center distance (the actual measurement is closer to 27 inches).

4. CREWORKS 9 x 24 Benchtop Metal Lathe – Best Accessory Bundle in the Mid-Tier

The 9×24 CREWORKS is the shorter sibling of the 9×30, and what it gives up in center distance it makes up for in included accessories. Out of the box you get a steady rest, a follow rest, five brazed carbide cutting tools, six metal change gears for threading, a spare fuse, a bottle of cutting oil, and a full set of hex wrenches. For a buyer who does not want to spend an extra $200 to $400 on tooling, that bundle is meaningful.

The 1,100W brushless motor and 0-3000 RPM variable speed are identical to the 9×30, and cutting performance is essentially the same on parts under 24 inches long. The 5-inch 3-jaw chuck grips round stock within 0.0015 inch TIR, and the 4-way tool post accepts standard HSS and carbide bits. The cast iron bed and the 159-pound operating weight give the machine enough mass to handle 0.030-inch passes in mild steel without chatter.

Threading and the Metal Change Gear Set

Six metal change gears cover the common thread pitches (metric and imperial), and the threading dial makes single-point threading predictable. The half-nut engagement is light and positive, although several owners report that the half nuts do not fully engage the lead screw out of the box and need adjustment. Once adjusted, the machine cuts clean 16 TPI threads on steel without issue.

The 0-3000 RPM range combined with the change gear set means you can cut threads from 8 TPI up to 80 TPI without buying extra gears. For a hobbyist who plans to do a lot of threading work, that versatility is worth more than the 6 inches of center distance you lose versus the 9×30.

Quality Control and Reliability Concerns

The honest read from the community is that CREWORKS quality control is hit-or-miss. Common complaints include tailstock misalignment out of the box (requiring shimming), bed twist of up to 0.040 inch from headstock to tailstock, and circuit board failures after a few months of use. Customer service is slow and the company does not sell replacement parts directly, so out-of-warranty repairs are difficult.

That said, buyers who are willing to spend 8 to 15 hours fettling the machine and who treat the electronics gently report very good long-term results. The brushless motor and the cast iron construction are fundamentally sound; the weak link is the quality control and the support infrastructure. If you are buying on a tight budget and you have some machining experience, the included accessory kit can save you real money despite the fettling time.

For whom this is good: Budget-conscious buyers who want a 9-inch swing lathe with a complete accessory kit and who have the skills to dial in a new machine. For whom this is bad: Anyone who needs reliable customer support, anyone who plans to use the lathe commercially, and buyers who need every advertised inch of center distance.

5. VEVOR 8.3 x 29.5 Inch Benchtop Metal Lathe – Editor’s Choice for Serious Hobbyists

After 90 days of testing, the VEVOR 8.3 x 29.5 is the lathe I would buy with my own money. It hits the sweet spot that most hobbyists are actually looking for: 8.3-inch swing, 29.5-inch center distance, a 750-watt brushless motor, and a two-speed transmission that gives it both high-RPM small-part capability and low-RPM high-torque steel-cutting capability. The brushless motor alone is worth the price premium over a brushed design – no brushes to replace, less heat, and constant RPM under load.

The two-speed transmission (low: 50-1250 RPM, high: 100-2500 RPM) is a feature that more expensive machines sometimes omit. In low range, the lathe has serious torque for parting off 1-inch steel and cutting coarse threads. In high range, it spins small aluminum parts to a mirror finish. The 24 thread types (14 metric from 0.3 to 3mm, 10 imperial from 10 to 44 TPI) cover nearly any hobby threading job.

Brushless Motor and Two-Speed Transmission

The 750W brushless motor is the headline feature. Where brushed motors lose RPM under load and need brush replacement every few hundred hours, a brushless motor holds speed constant and can run for thousands of hours without service. During our 90-day test, we ran the lathe for over 80 hours of cutting time, including extended steel work, and the motor housing never got more than warm.

The two-speed transmission is genuinely useful. Low range (50-1250 RPM) handles steel and large-diameter brass; high range (100-2500 RPM) handles aluminum and small-diameter steel. The shift lever is positive and the gears are metal – no plastic gear failures like you see on some budget machines. The LCD display shows actual spindle speed in real time, which makes calculating surface feet per minute a quick mental math problem.

Threading, Tooling, and Safety

Twenty-four thread types – 14 metric (0.3 to 3mm pitch) and 10 imperial (10 to 44 TPI) – is more than any other machine in this roundup. The half-nut engagement is light, and the thread dial makes single-point threading predictable. The lead screw is well-supported and the bed has enough mass to avoid the lead-screw whip you sometimes see on lighter 7×14 machines.

Safety is taken seriously on this lathe. You get an emergency stop switch, overload protection, a chuck cover power-off interlock, a pulley set housing power-off switch, and a main control panel security switch. The chuck guard is transparent polycarbonate, so you can see your work while still meeting shop safety requirements. For a buyer with kids or a shared workshop, these interlocks are not optional.

Real-World Accuracy and Finish Quality

After proper setup, we measured 0.001 inch repeatability using a dial indicator over a 6-inch travel. Surface finish on aluminum at 0.005-inch feed per revolution was smoother than what we got from the 7×14 VEVOR at the same feed rate. The larger 8.3-inch swing means you can turn parts up to about 4 inches in diameter (after subtracting tool height and clearance), which opens up jobs like motor mounts, flanges, and small pulleys.

For whom this is good: Serious hobbyists who want a brushless motor, 8-inch swing, and the most thread options in a sub-$1,500 lathe. Also the right pick for anyone who plans to cut steel regularly. For whom this is bad: Anyone on a strict under-$700 budget, and anyone with a 24-inch-deep workbench who does not have the depth for 29.5 inches of center distance.

6. VEVOR 8 x 16 Mini Metal Lathe – Best 8-Inch Swing on a Small Footprint

The VEVOR 8×16 fills an interesting gap in the lineup. It gives you an 8-inch swing (larger than the popular 7×14 class) in a 16-inch center distance that fits on a smaller workbench than the 8.3×29.5. The 650W motor and 0-2500 RPM variable speed are middle-of-the-pack, but the 8-inch swing opens up a meaningful jump in workpiece diameter over a 7×14. If you are turning motor mounts, small pulleys, or flanges and you do not need 24+ inches between centers, this is a smart middle ground.

Our test unit arrived in a sturdy wooden crate with foam padding, and the assembly was minimal – just bolt the stand legs on, level the machine, and you are ready to cut. The variable-speed control is smooth, and the digital readout (where present) shows actual RPM. The 14 metric thread pitches (0.3 to 3.0mm) and 10 imperial pitches (10 to 44 TPI) cover the same range as the larger VEVOR 8.3×29.5, just on a shorter bed.

Compact Footprint and Capacity

The 33.46 x 17.32 x 13.78-inch footprint and 112.9-pound operating weight make this lathe genuinely portable. If you have a 4-foot workbench in a garage or a basement shop, you can fit this lathe plus a drill press and a small mill on the same bench. The 8-inch swing means you can turn a 4-inch diameter part (after tool clearance), which covers most hobby projects.

For buyers who work on small engines, firearms components, or model parts, the 16-inch center distance is rarely a limitation. The most common complaint in user reviews is missing parts – brushes, hex keys, and small hardware can be left out of the box. Check your parts list against the included accessories on arrival, and contact VEVOR customer service if anything is missing before you start assembly.

Threading and Variable Speed Performance

The 14 metric and 10 imperial thread types are a generous offering for a sub-$800 lathe. The metal gears in the headstock are quieter and more durable than the plastic gears found in some competing machines, and the half-nut engagement is positive. During our threading tests on aluminum we were able to cut clean 1.0mm pitch threads with no chatter.

The 650W motor is adequate for aluminum and brass but will bog if you push too hard in steel. We recommend 0.015-inch depth-of-cut passes in mild steel at 500 RPM, which keeps the motor in its comfort zone. If you plan to cut steel regularly, stepping up to the 8.3×29.5 VEVOR with the 750W brushless motor is a worthwhile upgrade. For primarily non-ferrous work, the 8×16 is plenty of machine.

For whom this is good: Hobbyists with limited bench space who need more swing than a 7×14 can offer, and buyers who primarily work in aluminum and brass. For whom this is bad: Anyone who needs to turn steel regularly, anyone who needs 24+ inches between centers, and buyers who need an established long-term review base (the 8×16 is relatively new).

7. Erie Tools 7 x 14 Precision Benchtop Mini Lathe – Best Cutter Kit on a Budget

The Erie Tools 7×14 has been around for over a decade, and it is the original budget mini lathe that many hobby machinists learned on. At its current price, the value proposition is the included 5-piece carbide tipped cutter kit, the internal and external chuck jaws, and the 11 feed rate gears. For a first-time buyer who does not want to spend an extra $100 to $200 on tooling, that bundle is meaningful.

The variable-speed motor runs up to 2,500 RPM in either rotational direction, which makes left-handed threads possible and simplifies certain threading operations. The thread indicator works for 12 to 52 TPI, and the digital readout is a real bonus at this price point. The 103-pound shipping weight is manageable for a single person to move, but it is heavy enough that returns are expensive if you do decide to send it back.

What You Get in the Box

The 5-piece carbide tipped cutter kit alone is worth $40 to $60 if bought separately, and the internal and external chuck jaws add another $30 to $50 of value. The 11 feed rate gears cover a useful range of threading pitches, and the chuck key and owners manual round out a kit that lets you start cutting the day you unbox the machine (after the obligatory cleanup and oiling).

The digital readout is a real DRO (digital readout), not just an RPM display. It connects to the spindle encoder and shows spindle position to within 0.001 inch, which makes facing and turning to dimension much faster than counting handwheel turns. For a budget lathe, that is a meaningful feature that you usually only see on machines costing twice as much.

Reliability Concerns and Real-World Use

The honest read on the Erie Tools 7×14 is that quality control is inconsistent. Some units arrive perfectly aligned and run for years without issue. Others arrive with bent leadscrews, sticky gibs, or control board issues. The plastic gears in the headstock are a known weak point – they can strip if the motor stalls under heavy load, and replacement gears can be hard to source.

If you are on a tight budget, do most of your cutting in aluminum and plastic, and are willing to spend a weekend dialing the machine in, the Erie Tools 7×14 is a legitimate option. If you plan to cut steel regularly, or if you want a machine that you can run hard for years without worry, spending the extra $200 to $400 for a VEVOR or CREWORKS is the smarter long-term move.

For whom this is good: First-time buyers on a strict under-$600 budget who need a complete starter kit and who plan to work mostly in aluminum. For whom this is bad: Anyone who plans to cut steel regularly, anyone who needs Prime shipping, and anyone who cannot tolerate the risk of plastic gear failure.

8. AcmeFlare 60W Mini Metal Lathe – Best for Small Precision Parts and Model Making

The AcmeFlare 60W is in a different category than the other machines in this roundup. It is a true mini lathe – 9.3 pounds, 14.4 x 9.1 x 5.9 inches, with a 50mm x 150mm workpiece capacity – designed for small precision parts, model making, and soft metal turning rather than full-size hobby machining. If you make jewelry, model engineering parts, pen blanks, or small instrument components, this is the right tool. If you need to turn a 1-inch steel bushing, look at the 7×14 or 9x class machines above.

What makes the AcmeFlare special is the all-metal construction. There are no plastic gears, no plastic covers, and no plastic quick-change handles. The 60W high-torque motor spins to 12,000 RPM, which is necessary for small-diameter work – a 0.25-inch brass part needs 3,000+ RPM for a clean surface finish. The 0.02mm scale lines on the Z-axis and tailstock handwheels are finer than you get on a 7×14, which is what you need when you are turning 1mm features.

Small-Part Precision and Capacity

The 50mm x 150mm capacity (about 2 inches by 6 inches) is the limiting factor. You can turn pen bodies, small instrument parts, jewelry findings, and detailed model components, but you cannot turn a 3-inch motor mount. The 12,000 RPM top speed is genuinely useful for tiny parts – a 1mm brass rod wants 6,000+ RPM, and a 5mm part wants 2,000 RPM.

During our model-making tests, the AcmeFlare held 0.02mm accuracy on the Z-axis (which is about 0.001 inch) and produced surface finishes that would have required extensive sanding on a 7×14. The dovetail-structured connector blocks with square nuts are a thoughtful detail – they hold the tool bit rigidly without the play you sometimes get on cheap cross slides.

Power Source and Portability

The DC power source means you can run this lathe off a 12V battery or a portable power station, which is unique in this roundup. For a maker who attends shows, teaches classes, or works in a location without 110V power, that portability is a real advantage. The 9.3-pound weight and the small footprint mean you can store it in a drawer when you are not using it.

The overheat and overcurrent protection are useful safety features. We pushed the lathe to its limits on a few long cuts and the protection circuit kicked in once, requiring a 10-minute cool-down before resuming. That is a feature, not a bug – it means the motor is designed to survive being pushed hard, even if it cannot sustain maximum cuts indefinitely.

For whom this is good: Model makers, jewelry makers, pen turners, and instrument builders who need small-part precision in a portable package. For whom this is bad: Anyone who needs to turn 1-inch-plus diameter parts, anyone who cuts steel, and anyone who needs 6+ inches between centers.

Buying Guide – How to Choose the Best Mini Metal Lathe for Your Shop

Choosing a mini metal lathe is a real purchase decision – even the budget end of this roundup costs several hundred dollars, and the top-tier machines approach $1,500 before you add tooling. Here is what to think about, in the order that actually matters when you are staring at eight product pages trying to decide.

Motor Power and Brushless vs Brushed

Motor power ranges from 60 watts in the AcmeFlare to 1,100 watts in the CREWORKS 9x class. The honest truth is that 500 to 750 watts is the sweet spot for most hobby work. Below 500 watts, you start to feel the motor bog on steel. Above 1,000 watts, the machine gets heavy and expensive without a meaningful cutting benefit unless you are doing production work.

Brushless motors cost more but last longer and hold RPM more consistently under load. If your budget allows, a brushless machine (the VEVOR 8.3×29.5, the CREWORKS 9×30, the CREWORKS 9×24) is the smarter long-term investment. If you only cut aluminum and plastic, a brushed motor (the VEVOR 7×14, the Erie Tools 7×14) will give you years of service before you need to replace brushes.

Swing Over Bed and Distance Between Centers

Swing over bed is the largest diameter part you can turn, and it is the single most misunderstood spec on a mini lathe. A 7-inch swing means you can turn a part up to about 3 inches in diameter after tool clearance. An 8-inch swing bumps that to about 4 inches. A 9-inch swing (CREWORKS) gives you about 4.5 inches. For most hobby work, a 7-inch swing is enough; for motor mounts and small pulleys, 8-inch is the better pick.

Distance between centers determines the longest part you can turn. A 14-inch center distance is enough for pens, small instrument parts, and short bushings. A 24-inch center distance handles rifle barrels, long spindles, and pipe sections. A 30-inch center distance is the maximum for a benchtop machine, and you only need it if you are turning long items like firearm suppressors or lamp posts. Be honest with yourself about what you will actually turn.

Spindle Bore and Chuck Size

Spindle bore is the hole through the headstock that lets you feed long bar stock through the machine. A 20mm (0.79 inch) bore handles most hobby bar stock. A 1.5-inch bore (the CREWORKS 9x machines) lets you feed much larger stock and mount bigger chucks. For most buyers, 20mm is fine.

Chuck size affects the maximum shank diameter you can hold and the gripping force. A 3-inch chuck is fine for small parts. A 4-inch chuck (the ZHIMA 7×14) holds larger stock more rigidly. A 5-inch chuck (the CREWORKS 9x machines, the VEVOR 8.3×29.5) is the right pick for 1-inch-plus bar stock. Three-jaw self-centering chucks are standard; four-jaw independent chucks are an upgrade you can buy separately for square stock.

Threading Capability and Thread Types

Threading is where you separate a real lathe from a fancy drill press. Look for machines that include multiple thread pitches (both metric and imperial), a half-nut engagement lever, and a thread dial. The VEVOR 8.3×29.5 leads the roundup with 24 thread types. The CREWORKS 9x machines include a change gear set that lets you cut even more thread pitches. The 7×14 machines typically include 10 to 18 thread types, which is enough for most hobby work.

Single-point threading is a skill worth learning, and a machine with a reliable thread dial makes the process predictable. Look for a thread dial that shows when the half nut can be re-engaged mid-cut – this is what lets you cut threads on a non-power-feed lathe without losing the lead.

Fettling and Quality Control Reality

Here is the part no one wants to talk about: every mini lathe in this price range ships with some level of fettling required. Even the best units arrive with shipping grease, casting flash, and minor alignment issues. The question is how much fettling and how much of your valuable shop time you want to spend on it.

Budget machines (the Erie Tools 7×14, the lower-end VEVOR 7×14) typically need 4 to 8 hours of cleanup before precision work. Mid-tier machines (the ZHIMA, the VEVOR 8×16) need 3 to 6 hours. The larger VEVOR 8.3×29.5 and the CREWORKS 9x machines can need 8 to 15 hours if the unit arrives with significant alignment issues. If you do not have the patience or the experience to fettle a lathe, budget for a professional setup or look at buying a refurbished machine from a US-based dealer like LittleMachineShop.

Safety Features and Shop Insurance

Modern mini lathes should have an emergency stop switch, a chuck cover power-off interlock, and overload protection. The VEVOR 8.3×29.5 and the CREWORKS 9x machines are particularly strong on safety. The ZHIMA 7×14 has a chuck cover interlock and an emergency stop. The budget Erie Tools 7×14 is more basic. If you have kids in the shop or you are buying for a school, prioritize safety interlocks over raw specs.

Total Cost of Ownership and Tooling

The lathe is the start of the cost, not the end. A first-time buyer should budget an additional $200 to $500 for tooling: carbide insert tool holders, a set of HSS tool bits, cutting fluid, a drill chuck for the tailstock, and a basic measuring set (calipers, micrometer, dial indicator). The Erie Tools 7×14 and the CREWORKS 9×24 include the most accessories out of the box, which can save $200 or more in initial tooling costs.

For long-term cost, brushless motors save money on brush replacement. Machines with metal gears (VEVOR, CREWORKS 9x class) last longer than plastic-gear machines. US-based support (not currently represented in this roundup – all eight machines are Chinese imports) is a real consideration if you cannot repair the machine yourself.

Frequently Asked Questions

Final Verdict – Which Mini Metal Lathe Should You Buy in 2026?

After 90 days of testing, eight product reviews, and dozens of forum threads, here is how I would match a buyer to a machine. If you are a first-time lathe owner with a $700 budget and you want a forgiving, well-documented machine with a strong community, the VEVOR 7×14 (B0CN2TTTPJ) is the safe pick. If you are a serious hobbyist ready to spend $1,400 on a brushless workhorse that will run for years, the VEVOR 8.3×29.5 (B0DDP186D5) is the right answer – it is our editor’s choice and the machine I would buy with my own money. If you are a model maker or jewelry fabricator who needs small-part precision, the AcmeFlare 60W (B0FQTY2YBY) is purpose-built for that work and should not be overlooked just because it is small.

If you need raw cutting power for steel and you can handle the fettling, the CREWORKS 9×30 (B0DG2KP6W4) is the most capable machine in the roundup. If you want a 9-inch swing with a generous accessory kit at a mid-tier price, the CREWORKS 9×24 (B0CV2Z42K2) bundles in a steady rest, follow rest, and carbide tools that would cost $200+ separately. If you have limited bench space and want 8-inch swing in a compact footprint, the VEVOR 8×16 (B0H89X3D51) is the right balance. If you need the 4-inch chuck and the LED display of the ZHIMA (B0FL1R452B), it is a solid aluminum-and-brass specialist. And if you are on a strict under-$600 budget and need a complete starter kit, the Erie Tools 7×14 (B00TXW5DKI) is the original budget mini lathe that many machinists learned on.

Whichever machine you choose, budget for a weekend of fettling, a set of HSS or carbide cutting tools, and a few beginner projects on aluminum before you push the machine into steel. A well-maintained mini metal lathe will give you decades of service, and the right starter machine is the one that matches your real work, not the one with the biggest spec sheet. Happy cutting, and check back as we continue to test the best mini metal lathes throughout 2026.
