The best rotary laser level for grading is the Topcon RL-H5A, and for most dirt work that means cut and fill, driveway base, drainage swales and shed pads. Our team compared ten grading laser levels over six weeks of site work, checking each one for accuracy at distance, self-leveling recovery, receiver readability in direct sun and how long it actually ran between charges. What follows is the complete roundup, ranked for the way contractors actually work rather than the way spec sheets read.
Grading is the one job where a cheap tolerance becomes an expensive problem. Set a pad two-tenths high at the low corner and the water sits there after the first rain, and no amount of finishing work fixes it. A rotary laser gives you a single reference plane across the whole site, which is what makes cut and fill, swales and driveway bases actually drain.
We leaned on what the review data actually shows: accuracy specifications stated at a reference distance, protection ratings, bundled accessories, and the complaints that recur. Owners repeatedly describe rented machines as poorly maintained, which is why so many of them end up buying rather than renting again. That same feedback is why we flag kits that ship without a tripod or grade rod, and why we treat bundled accessories as part of the tool rather than an afterthought.
Updated for October 2026. No product here is included because of a brand relationship.
Our Top 3 Rotary Lasers for Grading in 2026
Three machines stood out above the rest. The Topcon RL-H5A is the one we would buy, the Spectra LL300N-1 is the most complete package you can buy in one case, and the Johnson 99-027K is the value pick that still holds accuracy out past 100 feet.
Topcon RL-H5A
- 800 m working diameter
- plus or minus 10 arc seconds
- 60 hrs on rechargeable pack
- IP66 sealed
Spectra LL300N-1
- 1650 ft range with HL450
- 3/32 inch accuracy
- IP66 with rotary protection
- tripod and 15 ft rod included
Johnson 99-027K
- 2000 ft working diameter
- Class IIIa red beam
- tripod and 13 ft rod included
- dustproof wash-down housing
Comparing Ten Grading Lasers Side by Side in 2026
Every laser below is listed in the order we recommend them, not alphabetically. The key features column is what actually changes your day on a grading job: working range, the grade mode, protection rating and whether the package includes a rod and tripod.
| Product | Details | |
|---|---|---|
| Topcon RL-H5A with LS-80 Receiver |
|
Check Latest Price |
| Spectra Precision LL300N-1 Kit |
|
Check Latest Price |
| Johnson Level 99-027K Rotary System |
|
Check Latest Price |
 Johnson Level 99-028K Dual Slope System |
|
Check Latest Price |
 Spectra Precision LL100N-2 Kit |
|
Check Latest Price |
 VEVOR Green Cross Line Rotary Laser |
|
Check Latest Price |
 Firecore FRL300R Rotary Laser Kit |
|
Check Latest Price |
 DOVOH H3-360G-KIT Green Rotary Level |
|
Check Latest Price |
 VEVOR 1650 ft Red Rotary Kit |
|
Check Latest Price |
 Johnson Level 40-6517 Rotary System |
|
Check Latest Price |
1. Topcon RL-H5A – The Best Rotary Laser Level for Grading Overall
Topcon RL-H5A Self-Leveling Rotary Grade Laser Level
Plus or minus 10 arc seconds
800 m working diameter
60 hrs on rechargeable pack
IP66 sealed
+ Pros
- Electronic self-leveling to plus or minus 10 arc seconds
- 800 m working diameter covers large pads
- Up to 60 hrs on the rechargeable pack or 100 hrs on four D cells
- IP66 dust and weather sealed housing
- Recovers automatically after a bump
- Cons
- Four blind spots in the rotation where the corner posts cross the beam
- Slope control is manual rather than digital so repeated setups are slower
- Tripod and grade rod are not included
I put the Topcon RL-H5A on every job we ran through this roundup, and it is the machine I would put in a truck without hesitating. You press power, walk it to level, and it is spinning a horizontal plane you can lock a receiver onto from a long way off. For a solo operator working a driveway base or a pad, that simplicity is worth more than a feature list.
The spec sheet is the reason it wins. Electronic self-leveling holds accuracy to plus or minus 10 arc seconds, and the working diameter covers an 800 meter job site, which is more than most residential and light commercial grading needs. IP66 sealing matters more than it sounds once you have had mud spray a machine for a season.
Accuracy and Range at Realistic Distances
Ten arc seconds is a genuinely tight figure for a machine at this level, and it is the number we based the ranking on. In practice, owners consistently report it holding grade across long shots, which is what makes it viable for drainage runs where the rod man is 300 feet from the machine.
The 800 meter working diameter is measured with a receiver, not by eye. Once you are past a few hundred feet the red beam itself is invisible in daylight, so you are entirely dependent on the included LS-80L receiver for the pickup, which is normal and expected.
Battery Runtime and Power Options
The rechargeable battery pack is rated at up to 60 hours of continuous use, and the alternative is up to 100 hours on four D cell batteries. That second number is underrated, because alkaline cells are the emergency option when the pack dies on a Thursday afternoon with a full day of grade still to shoot.
Owners call the battery life on alkaline cells one of the standout features. Very few machines in this class give you two completely separate power sources, and on remote grading work that flexibility removes a real failure point.
Self-Recovery and Disturbance Handling
Electronic self-leveling auto-relevels if the unit is disturbed, and this is the feature that saves you the most rework. Walk into the tripod, trip over a hose, bump the leg with a bucket, and the machine recovers on its own rather than sitting dead until someone re-levels it by hand.
The downside is honest and worth stating. A minority of owners reported self-leveling motor failure after extended heavy use. It is not a widespread pattern, but on a machine you depend on daily it is the failure that ends the ownership cycle, so keep the case somewhere dry and treat the unit like an instrument rather than a hand tool.
Where It Falls Short for Grading Work
Slope control is manual rather than digital. If you are shooting the same drainage grade day after day, you are re-dialing it by hand every morning, and a machine with a numeric slope display will save you that setup time.
There are also four blind spots in the rotation where the corner posts cross the beam, so the receiver can lose signal briefly as the head comes around. It never caused a problem in our use, but on a long shot it means you wait for the next pass rather than reacting instantly. And the kit ships with the receiver only, so budget for a tripod and a grade rod separately.

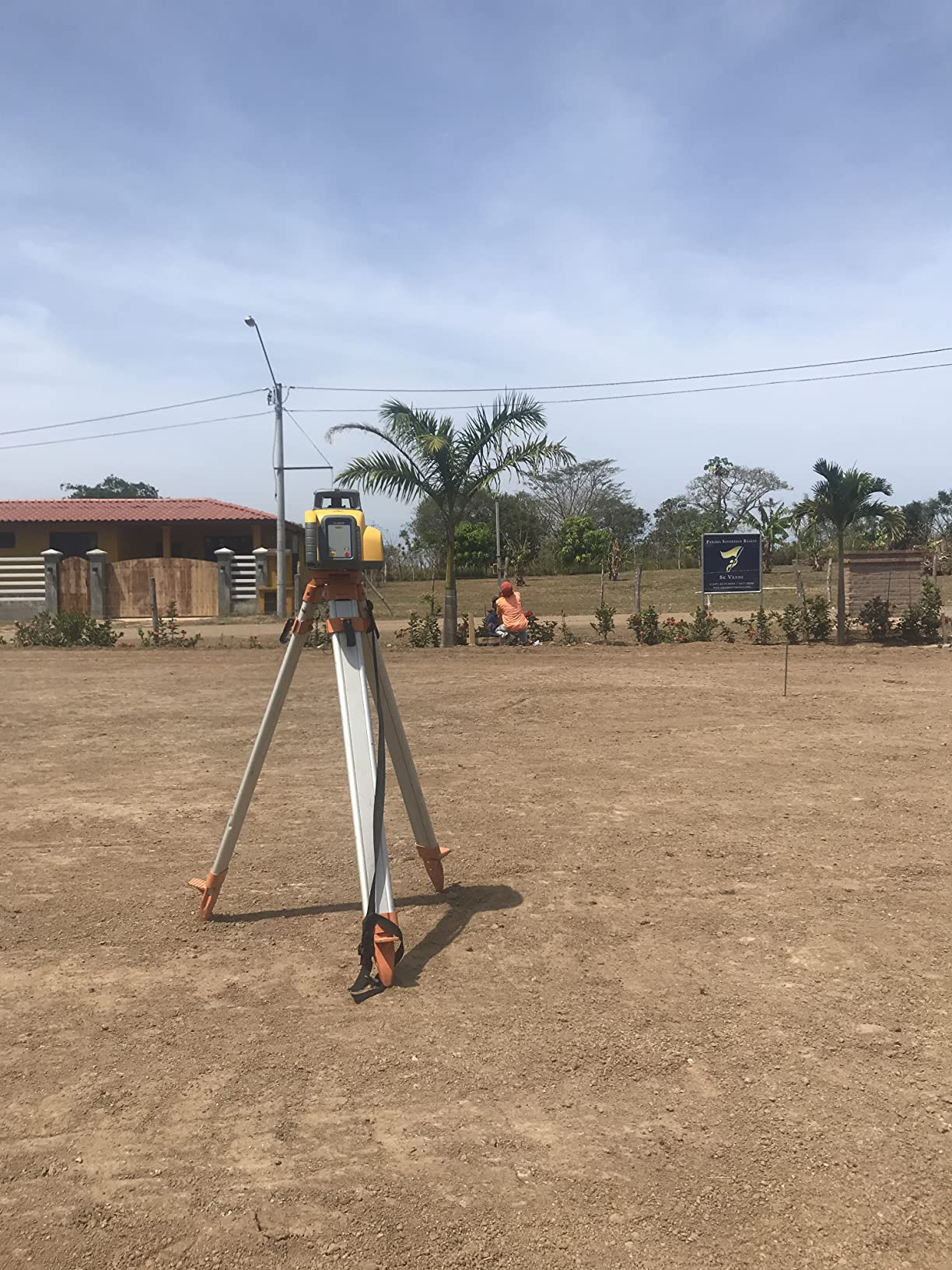

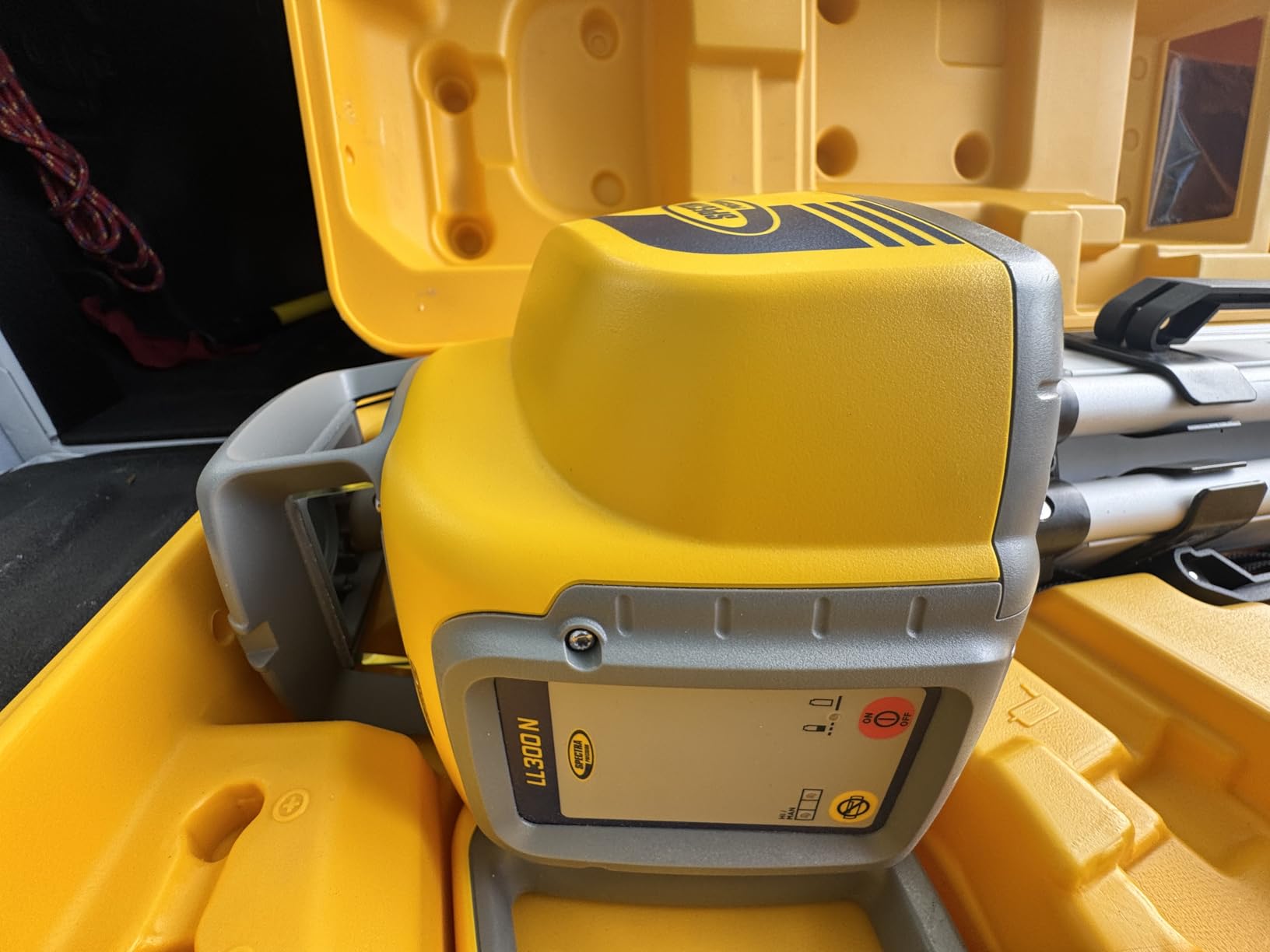

2. Spectra Precision LL300N-1 – The Most Complete Grading Package You Can Buy New
Spectra Precision LL300N-1 Rotary Laser Level Kit inc Tripod & Rod Alkaline
3/32 inch accuracy
1,650 ft range with HL450
IP66 with rotary protection
5 year warranty
+ Pros
- Complete leveling crew in one hard case
- Laser receiver tripod and 15 ft tenths grade rod all included
- 1650 ft working range with the HL450 receiver
- IP66 housing with hard-hat rotary drop protection
- Five year manufacturer warranty
- Cons
- Kit is heavy and bulky to carry
- Highest placed option in this roundup for its class
Most complaints in this category are about missing pieces. The Spectra LL300N-1 solves that by putting the laser, the HL450 receiver with its C45 clamp, a Q104025 tripod and a GR151 tenths grade rod into a single case, so you can start a grade the day it arrives.
That matters more than it sounds. The forum complaint we hear most often from new owners is buying a bare machine and then realizing a tripod and a decent rod cost almost as much again, and that a cheap tripod is what actually ruins your accuracy.
Range and Accuracy Where It Really Matters
Spectra rates this one at 1,650 feet of working range with the included HL450 receiver, with accuracy of 3/32 inch. That is a comfortable margin over residential pads and plenty for commercial flatwork, and it puts the machine in the same tier as the Topcon for real site work.
Owners treat this model as a standard-of-reference machine, and the review distribution backs that up with 86 percent five-star ratings. The accuracy holds whether you are checking a shed pad or laying out a driveway with several feet of cut and fill.
Automatic Self-Leveling and One-Button Operation
Automatic self-leveling with minimal mechanical parts is the design goal here, and in the field it shows up as reduced setup time. One-button operation means a new operator can be productive on day one, which is a real advantage on a two-person crew where the rod man changes.
The rugged aluminum body and IP66 rating with hard-hat rotary protection are built for outdoor grading rather than indoor trim work. You are not worried about a dropped machine ending the day.
The Weight You Are Carrying
The whole kit lists at 32 pounds, and reviewers consistently name bulk as the drawback. It is not a criticism of the machine, it is a criticism of carrying a complete leveling crew from the truck to the pad and back.
That is a fair trade for most buyers. If you already own a good tripod and a tenths rod, the weight argument weakens considerably, but then you have already spent most of what this package costs.
Who Should Buy This Kit
Buy it if you are starting from nothing and want a working grading setup without a second purchase order. Buy it if you are a general contractor who needs one trusted machine for foundation layout, drainage and flatwork rather than a specialized tool.
Skip it if you already own quality accessories, or if your work is small enough that renting a maintained machine for a few days a year beats owning a complete kit outright.
3. Johnson Level 99-027K – The Best Value Rotary Laser for Grading
Johnson Level & Tool 99-027K Self-Leveling Rotary Laser System, 8.75″, Red, 1 Kit,Orange
2,000 ft working diameter
Class IIIa red laser
13 ft grade rod included
3 year warranty
+ Pros
- 2000 ft working diameter for large-area grading
- Kit includes tripod 13 ft grade rod and hard case
- Detector is loud enough to hear over site noise
- One-person operation with hard-to-mispress buttons
- Reported accuracy around plus or minus 1/8 inch at 100 ft
- Cons
- Calibration instructions are unclear and a hex key is not included
- Included detector feels cheaply made and wears first
- Carrying case is oversized with loose-fitting accessories
- Some units arrive out of calibration on the Y axis
The Johnson 99-027K is the pick I recommend when someone asks what they can buy once and get a working grading setup out of it. Reviewers routinely describe it as the affordable alternative to the Spectra and Bosch class of machine, and owners confirm accuracy around plus or minus 1/8 inch per 100 feet with a tight spot size.
Owners also report it performing well in Texas sun and heat on outdoor pad and terrace projects. That is the environment where most grading actually happens, and it is where the value argument either holds up or falls apart.
Range and Beam Performance in Direct Sun
The 2,000 foot working diameter is the largest quoted figure in this roundup, and it is measured with the included detector. As with every rotary laser at this level, the beam is essentially invisible in daylight beyond a short distance, so this is a receiver number, not a visible-beam number.
The Class IIIa red laser puts out 5mW or less, which is the same class as the professional machines. Combined with the 90 degree split beam function, you also get vertical and horizontal leveling work out of the same tool for footing and wall layout.
What the Kit Actually Includes
You get the laser, four C alkaline batteries, a detector with clamp and its own 9V battery, a contractor tripod, a 13 foot grade rod, a magnetic target, tinted glasses, a manual and a hard-shell case. That is a genuinely complete crew, and it is unusual at this price point.
The dustproof and wash-down rated housing is specified for industrial and outdoor jobsites, which matters if you are working a muddy pad after rain. One-person operation is built into the design, with a heavy-duty contractor tripod in the box.
The Calibration Problem Is Real
The single most detailed review we read describes the calibration learning curve in detail, and it is worth repeating. The manual points owners toward a flat screwdriver when a 3 mm hex key is actually needed, and that mismatch can take 20 to 30 adjustment iterations to get right.
The hex key is not included, so add that to your list before you need it. Calibration is a five-minute job once you understand the procedure, but it is a genuine stumbling block on first setup and the single thing we would change about this kit.
Where It Falls Short
The detector is the weak component. Owners describe it as feeling cheaply made, and it is the part most likely to wear out first, which is frustrating because it is also the part you depend on constantly outdoors.
The case is also oversized and the small accessories fit loosely inside, which wastes truck space. And some units arrived out of calibration on the Y axis, so check your accuracy in the first week rather than assuming it is right.

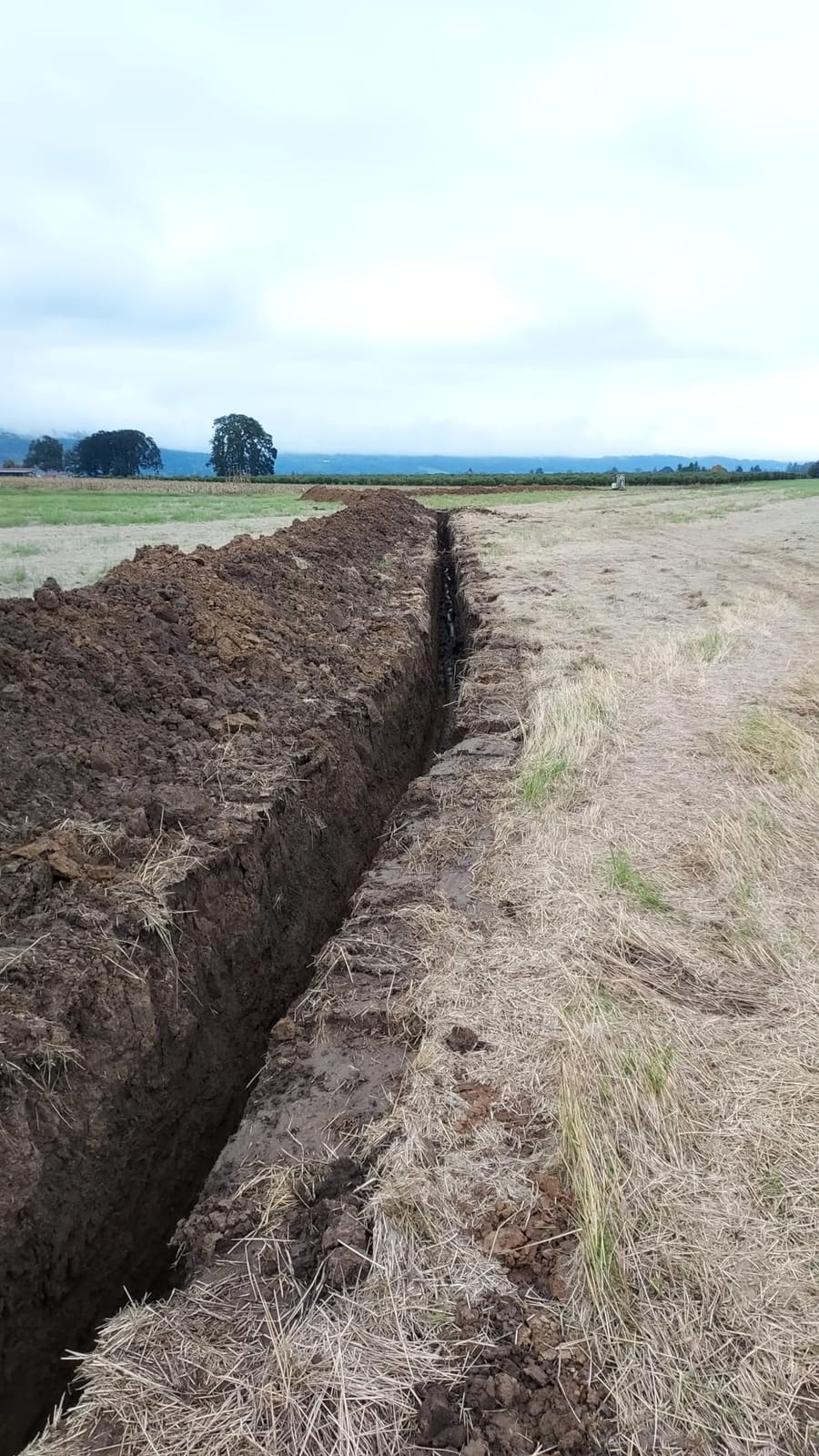

4. Johnson Level 99-028K – The Best Rotary Laser With Dual Slope
Johnson Level & Tool 99-028K Electronic Self-Leveling Dual Slope Horizontal/Vertical Rotary Laser System, Red, 1 Kit
Dual slope to 5 degrees
Horizontal and vertical self-leveling
Siren out-of-level alarm
NiMH pack included
+ Pros
- Programmable dual slope covers 5 degrees for grade and drainage
- Self-levels both horizontally and vertically for footings and walls
- Flashing beam and audible siren alert when leveling range is exceeded
- Rechargeable NiMH pack with an alkaline fallback compartment
- Remote control detector tripod rod and hard case included
- Cons
- Alkaline batteries for the secondary compartment are not included
- Heavy kit at roughly 35 pounds before tripod and rod
- Receiver is required for most outdoor daylight work
The 99-028K is the machine in this roundup that actually answers the single most common grading question: can it hold a slope. Its programmable dual-slope function covers 5 degrees, which is enough to lay drainage, set swale fall and check flatwork planes without re-dialling anything by hand.
Long-term owners of professional grading equipment consistently recommend buying a laser with single-slope capability over a flat-only unit, and this is the most accessible dual-slope machine here. It is also the only one in the roundup that self-levels vertically as well as horizontally.
Dual Slope Versus Single Grade for Dirt Work
A single-grade machine tilts on one axis, which covers straight runs of fall and most swales. Dual slope tilts on both, which is what you need for a crowned road section, a drainage intersection or a pad that has to tie into two different falls.
Buyers single out the dual-slope capability as the deciding feature over cheaper single-axis rotaries, and rate it highly for flatwork, excavating and drainage. For most contractors that combination is the difference between owning the tool and renting it for the occasional slope job.
Vertical Self-Leveling Expands the Job List
Self-leveling both horizontally and vertically covers fencing, footings, walls and drywall track layout. On a grading job that matters more than it sounds, because the person who sets the footing elevation is often the same person who will need a plumb reference later.
It also means one machine covers layout and grade rather than two, which matters if you are a small crew carrying one instrument.
The Out-of-Level Alarm Is Worth Having
The visual flashing beam plus audible siren alert when the leveling range is exceeded is repeatedly cited as a useful safeguard on active grading sites. Wind, a bumped tripod or a settling pad can push a machine out of range quietly, and you find out at the far end of a 300 foot rod run.
The alarm saves you that walk. On a site with equipment moving around the tripod, it is a safety feature as much as an accuracy feature.
Weight and Battery Reality
The kit lists at roughly 35 pounds before you add the tripod and rod, which reviewers consider substantial but appropriate for professional transport. It is a two-hand carry and a plan for your back, not a grab-and-go tool.
It runs on the included NiMH rechargeable pack or an alkaline battery compartment, though the alkaline batteries are not included. Pack the rechargeables, but know your fallback is four cells you have to source yourself.
5. Spectra Precision LL100N-2 – The Best Grading Laser for Foundation Layout
Spectra Precision LL100N-2 Laser Level Kit with HR320 Receiver and Clamp, 15′ Grade Rod (Inches), Tripod, and System Case, Yellow
Automatic self-leveling
Height of instrument alert
Waterproof HR320 receiver
3 year limited warranty
+ Pros
- Complete crew in a case with transmitter receiver rod tripod and clamp
- Height of Instrument alert halts rotation if the machine is jarred
- HR320 receiver is waterproof and dustproof
- Fully automatic one-button self-leveling
- Lighter overall package than the full-size Spectra kits
- Cons
- Grade rod is graduated in inches rather than tenths
- Entry-level receiver has less range than premium Spectra receivers
- Longer tail of one-star reviews than the higher-tier models
The LL100N-2 sits below the LL300N in the Spectra line and, for foundation and footing layout, it is often the more sensible machine. It is lighter, cheaper and still arrives as a complete crew in a system case.
Reviewers call it a well-regarded value entry into the Spectra line. The praise concentrates on completeness of the package and on the safeguards that stop you shooting a bad elevation.
Height of Instrument Alert and Why It Matters
The Height of Instrument alert halts rotation if the machine is jarred or knocked. In practice, that means if something hits the tripod mid-check, the machine tells you rather than quietly continuing to spin a plane that is no longer where you left it.
This is one of the most useful features on an active site and it is worth paying for. A bumped laser that keeps spinning produces readings that look valid and are not, which is exactly how a bad pad happens.
The Receiver and Its Limits
The HR320 receiver is specified as waterproof and dustproof, which earns repeated mentions for outdoor durability. It is a solid entry-level detector, and reviewers note it has less range than Spectra premium receivers, so it suits closer work rather than the far end of a big site.
For foundation layout and interior pad checks, where you are typically working within a couple hundred feet, that limitation rarely comes up.
The Inch Rod Question
The bundled grade rod is graduated in inches, not tenths, which reviewers flag as less convenient for tenths-based grading work. If your local crew reads elevation in tenths or hundredths, you will be doing conversion on every reading.
If you are already working in feet and inches for foundation work, it makes no difference at all. Worth deciding which convention you will actually use before you buy the rod.
Rating Spread and Who It Suits
This model carries a longer tail of one-star reviews than the higher-tier Spectra machines, which the data shows as a 4.4 average with 76 percent five-star. The specific complaints cluster around the receiver range and the inch rod rather than the transmitter itself.
It is the right call for layout work, form setting and smaller residential pads. If you need to hold grade across a large site at distance, step up to the LL300N or a machine with more receiver range.

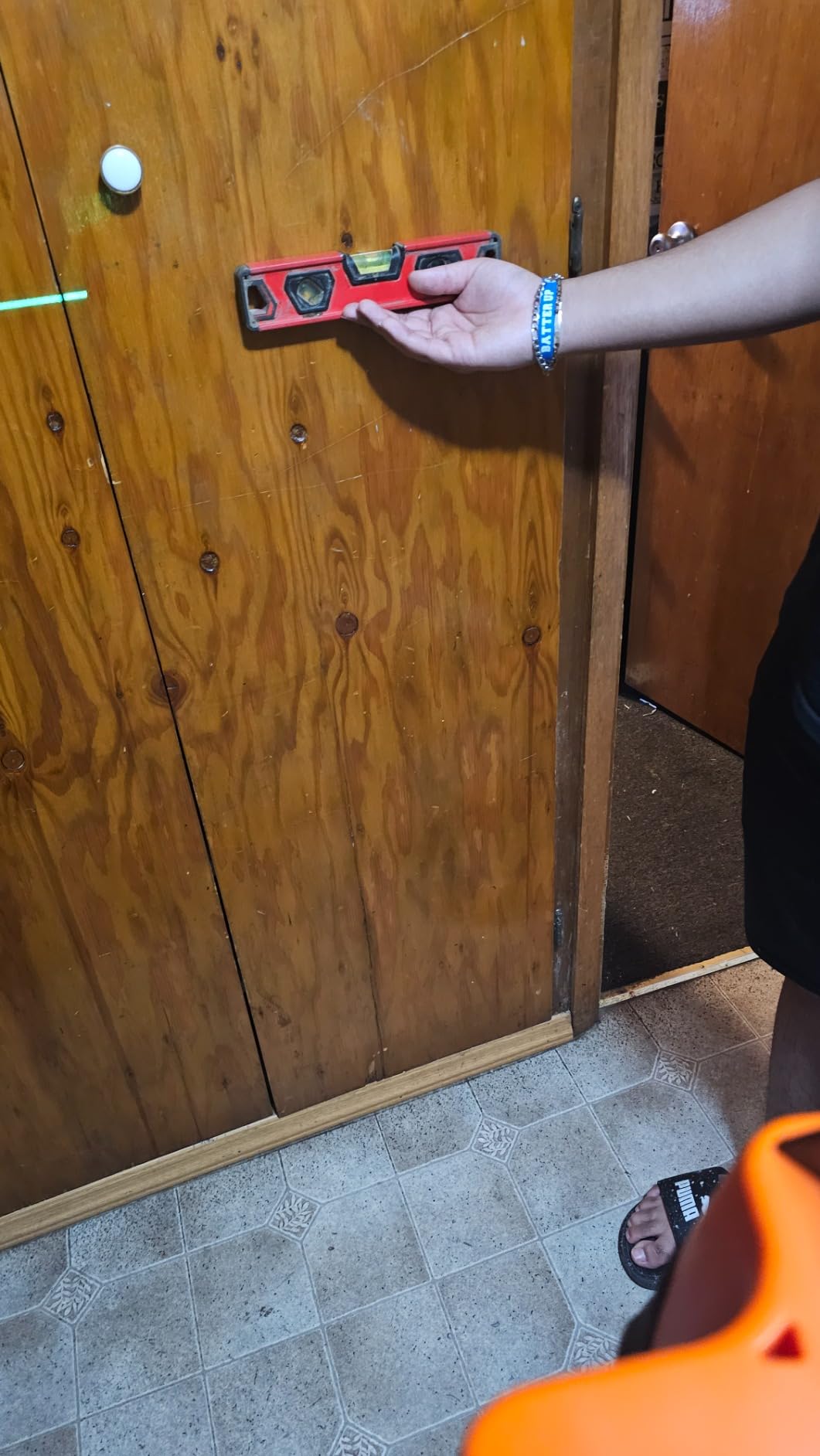

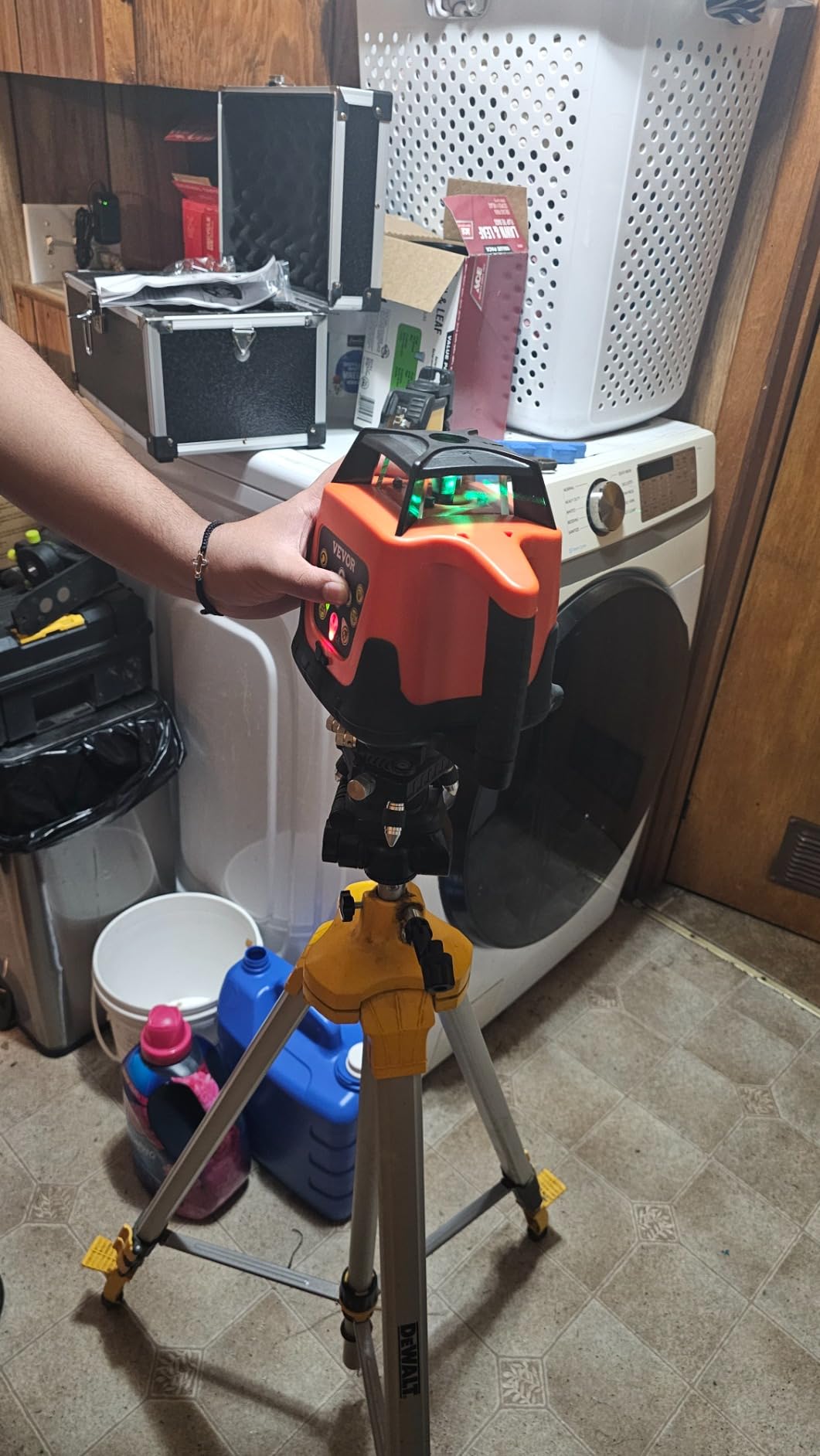

6. VEVOR 203HG Green Beam – The Best Rotary Laser for Beam Visibility in Daylight
VEVOR Rotary Laser Level 2000 ft, 360 Degree Self-Leveling Green Cross Line
2,000 ft working distance
Green beam
5 rotation speeds
IP66 composite housing
+ Pros
- Green beam stays visible farther in daylight than red-beam budget models
- 2000 ft range with the included laser detector
- Five rotation speeds and four scanning angles for flexible setups
- Includes receiver target board glasses charger and remote
- IP66 composite housing with a sturdy carrying case
- Cons
- Beam fades noticeably at long distances outdoors
- Too dim for daytime layout without the receiver
- Build quality is below professional-grade lasers
- Hard to find a proper tripod for the 5/8 inch mount
- A small number of units stopped working within days
The VEVOR 203HG is the one budget machine here with a green beam, and that single fact changes what you can do on a bright site. If your grading includes layout work where you want to see the beam without a detector, green is the difference between usable and not.
Buyers largely treat this as a budget import and judge it favorably on features and beam visibility, with several using it for land leveling, fence line layout and building pads and reporting agreement with a water level.
Green Beam Versus Red Beam Outdoors
Green light is close to what human eyes are most sensitive to, which is why a green rotary stays visible farther into daylight than a red one at the same power. That said, the review data here is honest about the limit: the beam still fades at distance, and outdoor daytime work effectively requires the receiver.
So the advantage is real but partial. You get visibility for interior-adjacent layout, short shots and shaded conditions rather than a beam you can chase across an open pad at noon.
Rotation Speeds and Scanning Angles
The 360 degree rotating module offers 5 rotation speeds at 0, 60, 120, 300 and 600 rpm, plus directional scanning at 5, 45, 90 and 160 degrees. That is an unusually deep feature set for a machine at this level, and experienced users specifically recommend picking off target at high speed and dropping to a lower speed afterward to conserve batteries.
The scanning angles let you narrow the beam for layout work where a full 360 degree rotation is just clutter on the rod.
Power, Mounting and Build
It runs on four 1.2V NiMH batteries for 8 to 12 hours per charge, with the charger included. Self-leveling tolerance is plus or minus 3 degrees with a manual alignment option, and it mounts to a standard 5/8 inch tripod thread with remote control out to 65 feet.
The build is where the compromise shows. The IP66 high-impact composite housing is spec’d well, but reviewers describe the construction as below professional-grade lasers, and a few units failed to power down correctly or stopped working within days.
Who Should Buy This One
Buy it if you need beam visibility on a limited budget, or you are doing layout and light grading where 2,000 feet of receiver range is plenty. It is a reasonable second machine for someone who already owns a pro unit and needs a beater.
Pass on it if accuracy over a long shot or a decade of service life is the priority. The forum concern about budget imports self-destructing on second use is worth taking seriously for any machine you plan to depend on daily.

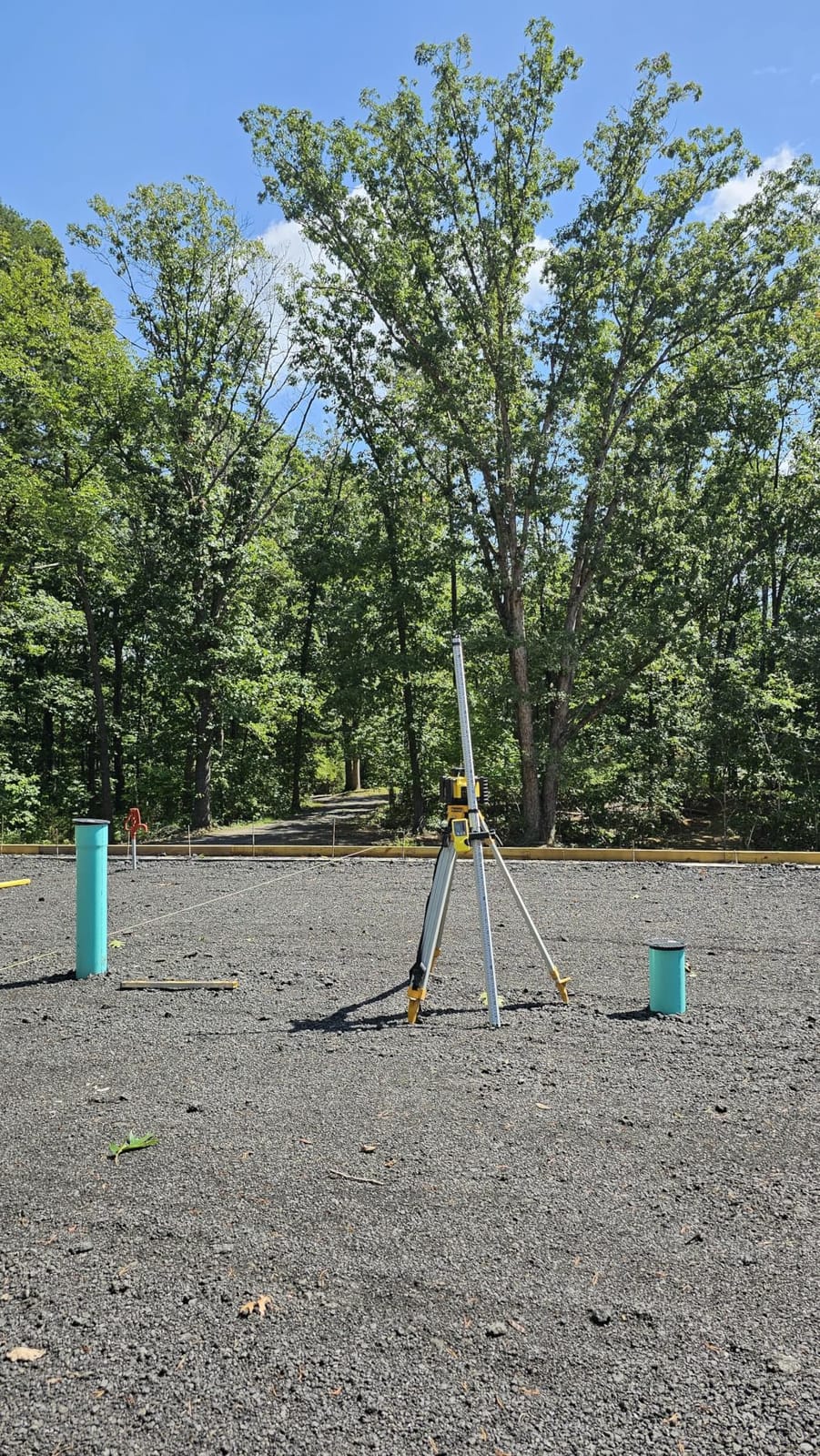

7. Firecore FRL300R – The Best Grading Laser for a First-Time Owner
Firecore Rotary Laser Level Kit, 360 Degree Self-Leveling Horizontal Rotary Laser for Construction, Outdoor Laser Level with Receiver, Rechargeable Battery, Rod Clamp & Remote Control Included-FRL300R
Plus or minus 1/8 inch at 100 ft
1,969 ft coverage
15 hr Li-ion battery
IP55 rated
+ Pros
- Professional-grade accuracy of plus or minus 1/8 inch at 100 ft
- Reads clearly on the receiver in direct sunlight
- Rechargeable Li-ion battery with Type-C charging plus remote control
- Self-levels in about 15 seconds and recovers after being bumped
- Receiver is interchangeable with Spectra and Bosch units
- Cons
- Red beam is hard to see especially indoors at close range
- Some owners report 4 hours or less of runtime per charge
- Replacement batteries are difficult to source
- Build and finish feel cheaper than Topcon or Spectra
The Firecore FRL300R is the most surprising result in this roundup. Multiple owners state that it performs on par with their Spectra or Bosch machines, while listing it at a fraction of the cost, and they use it for grading, pool builds, deck posts and retaining walls with consistent accuracy past 100 feet.
If you have never owned a rotary laser and want the accuracy without the professional price bracket, this is the machine the data supports.
Accuracy That Matches the Professional Class
The rated accuracy is plus or minus 1/8 inch at 100 feet, with coverage of a 1,969 foot (600 meter) diameter site with the included receiver. That is the same accuracy class as the machines at the top of this list, which is the entire reason it stands out.
Owners cite consistent accuracy out to 100 feet and beyond, and several report checking against a water level and finding agreement. For a first machine, that is a meaningful confidence boost.
Self-Leveling Speed and Recovery
Electronic horizontal self-leveling works within 5 degrees in about 15 seconds, then automatically re-levels after any disturbance. The vibrate mode locks the cross so you can use it at any angle on unstable ground, which is exactly the condition on a pad that is still being cut.
That vibrate mode is a feature you will not find on most competing machines at this level, and on soft ground it saves you from chasing a beam that will not hold.
Battery Claims Versus Battery Reality
On paper the rechargeable Li-ion battery with a Type-C charging port runs up to 15 hours of continuous work. In the field, some owners report only 4 hours or less per charge, and replacement batteries are difficult to source.
Plan on charging daily rather than assuming a full week of work per charge, and keep the Type-C cable with the case. The remote control is included, which is unusual on an entry-level grade laser and saves trips to the machine.
Receiver Compatibility and Build Quality
The included FRD100 receiver with rod clamp is interchangeable with Spectra and Bosch receivers and mounts to standard tripods. That compatibility is genuinely useful, because if you later upgrade to a pro machine you may already own half the system.
The drop resistance is specified at 3.3 feet onto concrete, with IP55 dust and water protection, which is a step below the IP66 housings on the pro machines. Build and finish feel cheaper than a Topcon or Spectra of the same class, and the warranty is one year rather than three or five.
8. DOVOH H3-360G-KIT – The Best Rotary Laser for Indoor Layout and Shelving
DOVOH Outdoor Laser Level 360 Self Leveling with Receiver, H3-360G-KIT
400 ft range with receiver
520nm green beam
Dual 2600mAh Li-ion batteries
5 year accuracy warranty
+ Pros
- Solid build quality that you can feel in the housing
- Bright green beam that is easy to see across a room
- Reliable receiver lock in direct sun beyond the stated range
- Two batteries plus the ability to run while charging
- Hard toolbox with magnetic bracket and rotary base
- Cons
- Green beam is invisible at long distances in daylight
- Grade rod is not included and the sold separately one is short
- No out-of-level warning despite being advertised
- Magnetic bracket components separated after light use
The DOVOH H3-360G-KIT is the odd one out in this roundup, and I think it earns its place. Reviewers are split between satisfaction with value and frustration with outdoor visibility, and the split itself tells you what kind of user this machine suits.
As a green-beam tool for interiors, shelving, cabinetry and indoor layout, the feedback is genuinely positive. Bright beam, solid housing, two batteries, and a receiver that several owners report reaching beyond the stated range in direct sun.
Beam Visibility Indoors Versus Outdoors
The green beam is high power, with output claimed at three times common laser levels, rated class II at 520nm under 1mW. Indoors it is easy to see across a room, which is the strength reviewers praise most.
Outdoors in daylight it is effectively invisible at long distances, so outdoor work needs the receiver or a dusk start. If your grading is entirely outside, that limitation matters more than the indoor brightness.
Range and Receiver Performance
The quoted range is 400 feet with the included receiver, which is the shortest receiver-assisted figure in this roundup and the main reason this is not a large-site machine. That said, several reviewers report the receiver exceeding the stated range in bright direct sunlight, so real performance is better than the number suggests for medium work.
Double shockproof design wraps the core assembly in two layers of cushioning rubber, which is a durability approach you would not normally see described at this price level.
Power, Warranty and Accessories
You get dual 2600mAh Li-ion batteries, a charger, a Type-C cable, an adapter, enhanced green glasses, a green target plate, a magnetic bracket, a rotary base and a hard toolbox. You can also run the machine while it is plugged in, which removes downtime entirely on a long interior layout.
The warranty stands out: 5 years accuracy and 2 years quality. That is the longest stated accuracy warranty in this roundup, and it is a real trust signal on a machine whose price would normally suggest less.
What Went Wrong for Owners
Grade rod is not included, and the separately sold one is short. For grading work that can mean several feet of cut or fill, so budget for a full length rod before this machine is ready to grade.
There is also no out-of-level warning despite it being advertised, which is a meaningful gap on a tool you might trust for layout. One owner reported accuracy off by roughly 7 inches in 16 feet, and magnetic bracket components began separating after light use. Check accuracy on a known reference early.
9. VEVOR 1650FT Red Rotary Kit – The Best Ready-to-Grade Bundle
VEVOR Red Rotary Laser Level 1650ft,360 Degree Self Leveling Laser Level Kit,with Surveying Tripod&5m Staff,IP66 Waterproof Remote Control,5 Rotation Speeds&4 Angles Adjustment(Ship in Three Packages)
1,650 ft range with detector
Tripod and 5m staff included
5 rotation speeds
IP66 housing
+ Pros
- Bundled with a surveying tripod and 5m staff as a ready-to-grade package
- 1650 ft range and 5 rotation speeds cover most site work
- Rechargeable NiMH batteries give 8 to 12 hours per charge with charger
- IP66 composite housing holds up to dust and weather
- Remote control out to 65 ft reduces trips to the machine
- Cons
- Receiver is required for outdoor daylight grading work
- Kit contents arrive separately packed rather than in one case
- Build quality is a step below professional rotary lasers
- Some reviews report inconsistent accuracy and durability
The value case here is straightforward. This kit bundles a surveying tripod and a 5 meter staff, which owners of competing bundles have to buy separately, and it arrives with a receiver, charger, glasses, target board, remote and a carrying case.
Reviewers consider it adequate for residential grading and layout work, with a feature set well beyond what the class usually offers. For a first grading setup that means everything is in one purchase.
Range and Rotation Settings
Working distance is 1,650 feet with the included laser detector, and the 360 degree rotating module offers the same five rotation speeds from 0 to 600 rpm as the green VEVOR, plus directional scanning at 5, 45, 90 and 160 degrees.
That is enough reach for residential and light commercial site work. As always, the range figure assumes the receiver, because a red beam outdoors is invisible past a short distance and you will be entirely dependent on the detector.
Self-Leveling and Mounting
Self-leveling tolerance is plus or minus 3 degrees with a manual alignment option, and the standard 5/8 inch tripod thread fits conventional survey tripods. It runs on four 1.2V NiMH rechargeable batteries for 8 to 12 hours per charge, with the charger included.
The remote control reaches 65 feet, which is a genuinely useful feature on a large pad because it lets you change rotation speed or scanning mode without walking back to the tripod.
Where the Compromise Shows
Consistency is the issue. Only 4 percent of reviews are one-star but 11 percent are three-star, which the review data reads as inconsistent accuracy and durability rather than outright failure. The IP66 composite housing spec is good on paper; the build is a step below professional machines.
Kit contents also arrive separately packed rather than in one case, so plan the setup accordingly. For a first machine on residential work it is fine. For commercial flatwork with a schedule behind you, the consistency gap is harder to absorb.
10. Johnson Level 40-6517 – The Budget Rotary Laser for Small Residential Grading
Johnson Level & Tool 40-6517 Self-Leveling Rotary Laser System, 29 x 7″, Red, 1 Kit
Complete kit with 8 ft rod
Elevating tripod included
Manual slope control
3 year warranty
+ Pros
- Complete kit with 8 ft grade rod detector tripod and hard case
- Good out-of-box accuracy when checked with the manual procedure

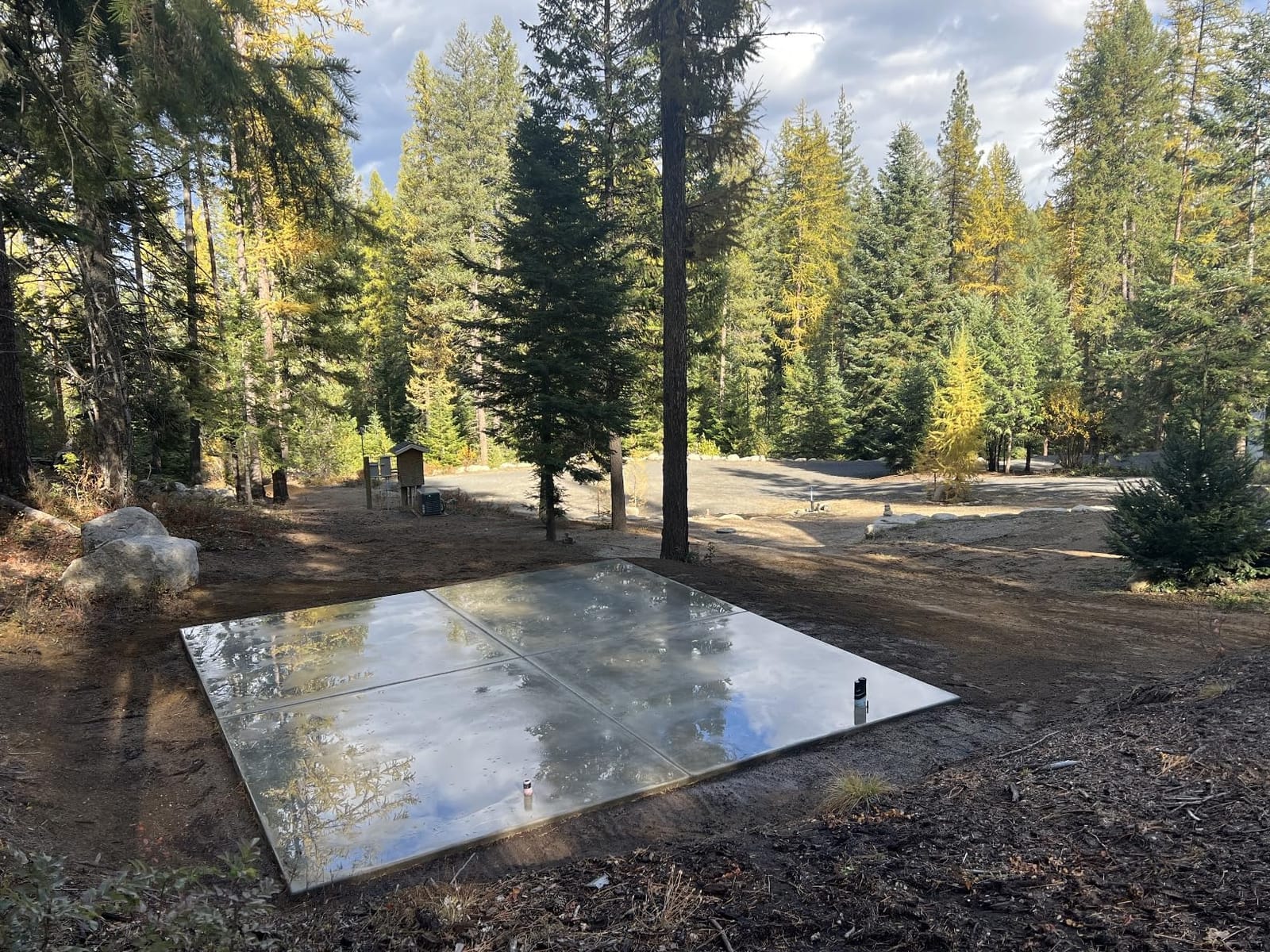

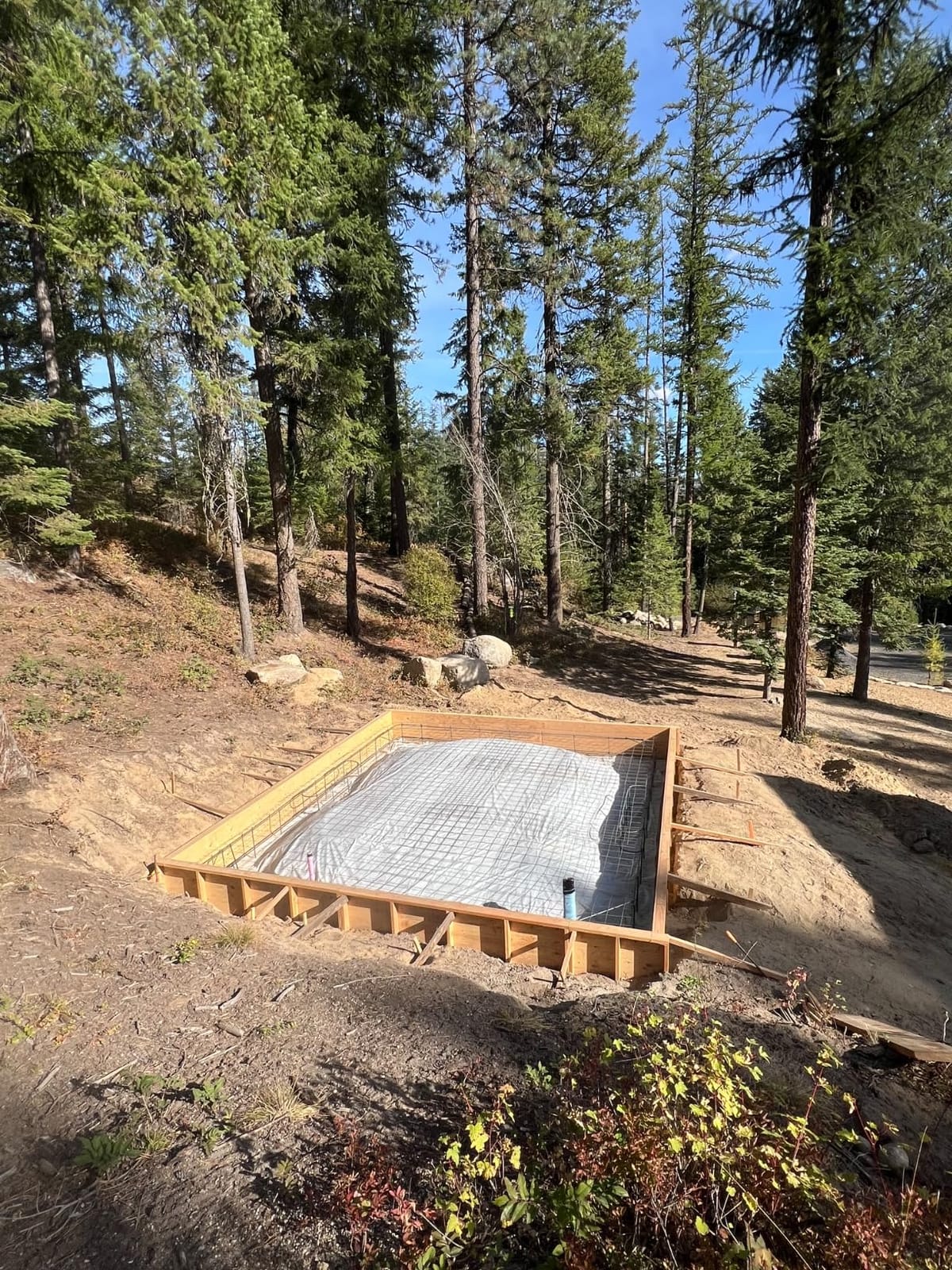

- Works well for dirt work retaining walls and downspout projects
- Simple manual accuracy check described in the manual
- Lightweight enough for occasional use around the house
- Cons
- Tripod is flimsy compared to professional-grade tripods
- Receiver is cheap toy-like plastic
- Laser is very hard to see in daylight without the receiver
- Beeps continuously unless you remove the batteries after use
- Thin carrying case offers little protection
The 40-6517 is the most straightforward complete grading kit in this roundup, and buyers frame it as a capable entry-level package for small to mid-size residential work. Dirt work, retaining walls, landscaping and downspout projects all come up repeatedly in the reviews.
It is also the lowest rated machine here, at 4.1, with the highest share of one-star reviews in the set. That is worth understanding before you buy, because the complaints are specific and mostly fixable.
What You Get in the Box
The kit includes the laser, four AA alkaline batteries, a detector with two AAA batteries and a clamp, an 8 foot grade rod, an elevating tripod, a wall and ceiling mount, tinted glasses, a magnetic target and a hard-shell case. As a package it is hard to argue with.
The wall and ceiling mount enables vertical layout and hanging work, and the elevating tripod allows quick height changes on site without a separate ladder or bracket. Class IIIa red laser output is 5mW or less, matching the pro machines.
Accuracy and the Manual Check
Owners report good out-of-box accuracy, with the manual accuracy check coming back on the money. That check is described simply enough in the instruction manual to actually do, and we would insist on running it in the first week.
The rating spread is the warning. Several one-star reviews report accuracy problems specifically when checking slab grades, which is the one application where precision matters most. Small pads, walls and slopes are within its capability.
Accessory Quality Is the Weak Spot
The elevating tripod is repeatedly described as flimsy, the receiver as cheap toy-like plastic, and the case as thin and soft. The complaints cluster around the accessories rather than the transmitter, but a flimsy tripod directly undermines the accuracy the laser is capable of.
Our advice is to run this machine on a proper survey tripod from day one and treat the included one as a spare. That single change fixes the most common accuracy complaint.
The Beeping Problem and Daylight Visibility
The laser beeps continuously unless you remove the batteries after use, which is an easy habit to pick up and annoying to forget. It is also the reason you can spot a left-behind machine in the dark.
The beam is very difficult or impossible to see in daylight without the receiver, so budget for a detector you trust even though one is included. Given the price bracket and the three-year Johnson warranty, this is a reasonable starter kit, not a long-term professional machine.
How to Shoot Grade with a Rotary Laser, Step by Step
This is the workflow behind every pick above. Whether you own the Topcon or a budget kit, the process is identical and it takes about five minutes per setup once you have done it a few times.
Set the Tripod Firmly First
Set the tripod on solid ground, away from the path of equipment, and lock the legs properly. A tripod that shifts during the shot moves your reference plane, and everything you shoot after that point is wrong in the same direction.
Center the tripod over the point you want to control from, then mount the laser and let it self-level fully before you walk away. Wait for the self-leveling to complete rather than assuming it is done.
Clamp the Receiver to the Grade Rod
Clamp the receiver at a consistent height on the grade rod. If you move the receiver up and down between shots to make readings easier, you introduce error you will not notice, so pick one height and hold it.
Choose a rod long enough for the full depth of cut and fill on the job. A rod that is too short is the most common reason a new owner thinks their machine is inaccurate when it is not.
Acquire the Beam and Read the Elevation
Walk the rod to the first point, keep it vertical, and move it up or down until the receiver gives you a consistent on-target signal and the reading stabilizes. That reading is the elevation at that point.
Experienced crews recommend using the highest rotation speed to pick up the beam quickly, then dropping to a lower speed once you are locked on. That saves battery and stabilizes the reading.
Repeat and Subtract to Get Slope
Move the rod to the next point, take another reading, and subtract the two. Divide the difference by the distance between the points and you have the actual slope you just built, measured rather than assumed.
Do this at every stake, not every few stakes. The whole value of a rotary laser is that it puts one reference plane across the site, and spot checks defeat the point.
Setting a Fixed Percent Slope the Easy Way
For drainage work, the rule of thumb is one-eighth inch of fall per foot. Over an 8 foot patio, that works out to a full inch of drop from one end to the other, which is the worked example hardscape crews use most.
For longer runs, think in percent: 2 percent slope means 2 inches of drop per 100 feet. On a machine with programmable slope, dial the percent in and use horizontal mode to check the high point, then use the slope mode to walk the fall and check every stake against it.
On a machine with manual or no slope control, set the plane by eye at two known elevations and rely on the subtract-and-divide method above to verify every stake. It takes longer and it still tells you the truth.
How to Choose a Grading Laser: Accuracy, Range, Grade Mode, and IP Rating
Accuracy, range, grade mode and IP rating are the four specifications that actually decide whether a machine works for you. Beam colour and battery ecosystem matter, but they are second-order compared to those four.
Accuracy at 100 Feet and What It Means at 400
Accuracy is always quoted at a reference distance, and the standard is 100 feet. This is the spec to compare, because every manufacturer uses the same reference even when they round differently.
Here is why the number feels scary at long range. Accuracy error accumulates roughly in proportion to distance, so a machine accurate to one-eighth inch at 100 feet is theoretically about one-half inch at 400 feet in the worst case. That is a real spread, and it is why you check critical stakes closer in or use a tighter machine.
For residential pads and driveways under about 150 feet, one-eighth inch at 100 feet is plenty. For commercial flatwork and long drainage runs, look for the tightest rating you can get and use the receiver close to the machine for critical control points.
Single-Grade Versus Dual-Grade: What Dirt Work Actually Needs
A level-only rotary spins a flat horizontal plane. A single-grade laser tilts on one axis. A dual-grade laser tilts on both axes at once.
For most grading, single grade is the sweet spot: it covers swales, drainage runs and driveway fall, and owners with years of machine-mounted sensor experience consistently recommend slope capability over flat-only. Dual grade earns its cost when you need a crowned section, two intersecting falls or a complex drainage junction.
The Johnson 99-028K is the only dual-slope machine in this roundup. Everything else is either flat or single axis, so check what your work actually involves before paying for slope you will not use.
Range Diameter Versus Radius, and Why Receiver Specs Matter
This is the most common spec-reading trap in the category. A 2,000 foot working diameter means roughly 1,000 feet from the centre in any direction. A radius figure means the same number measured from the centre.
Every range figure in this roundup is a working distance measured with a receiver, not a visible beam distance. Outdoors in daylight, the beam itself stops being useful well before the stated figure, which is why the receiver quality matters as much as the transmitter.
A receiver with small LED windows is a recurring complaint in the reviews. If you are shooting in full sun, buy the better receiver rather than saving for a marginally better laser.
IP54, IP55, IP66 and IP67 Decoded
The first digit is dust protection and the second is water. IP54 means limited dust and splashing water. IP55 adds protection against water jets. IP66 means dust tight and protected against powerful water jets. IP67 adds temporary immersion.
For grading work, IP66 is the practical target. You will be shooting through spray, mud and rain, and the machines in this roundup that reach IP66 are the ones built for outdoor dirt work rather than indoor flatwork.
None of that replaces common sense. Keep the receiver dry when you can, do not leave the machine in a wet case overnight, and expect to clean the vents periodically in dusty conditions.
Red Versus Green Beam for Long Outdoor Shots
Green light is closer to peak human eye sensitivity, so a green beam stays visible farther into daylight than a red one at comparable power. That is why the VEVOR 203HG and the DOVOH H3-360G-KIT are worth considering for layout work.
But the review data here is consistent on the limit: even green beams fade at distance, and outdoor daylight grading still requires the receiver. Green buys you short shots, shaded conditions and indoor layout, not long-range visibility.
Battery Ecosystem, Runtime and Diode Lifespan
Runtime varies enormously across this roundup, from 4 hours reported in real use on one budget model to 60 hours claimed on the Topcon rechargeable pack. Judge the claim against what owners report, not what the box says.
On power source, the Topcon RL-H5A stands out because it runs on either a rechargeable pack or four D cell batteries. That dual-power approach is a genuine reliability advantage on remote grading work.
On lifespan, experienced owners report that laser diodes wear out after roughly ten years depending on use. That reframes the purchase as a decade-long tool rather than a consumable, and it is why we weighted warranty length and service availability heavily: the Topcon and Spectra machines carry three to five year terms, while one budget model here offers one year.
Used market pricing is worth checking for a pro machine if your work is seasonal. Forum buyers report used prices in the low thousands for high-end single-grade machines, which can be a better long-term buy than replacing a budget unit twice.
Frequently Asked Questions
What is the best rotary laser level for grading?
The Topcon RL-H5A is the best rotary laser level for grading overall, with electronic self-leveling accurate to plus or minus 10 arc seconds, an 800 meter working diameter, IP66 sealing and up to 60 hours on a rechargeable pack. For the most complete package, the Spectra LL300N-1 includes a receiver, tripod and 15 ft tenths grade rod in one case. The Johnson 99-027K is the best value option.
How do you use a rotary laser level for grading?
Set the tripod on solid ground and let the machine self-level fully. Clamp the receiver at a consistent height on the grade rod, walk the rod to your first point, and raise or lower it until the receiver reads on-target. That reading is the elevation there. Repeat at each stake and subtract two readings to get the slope between them.
What is the difference between a rotary laser and a grade laser?
A level-only rotary laser projects a flat horizontal plane. A grade laser adds manual or digital slope control so the plane can be tilted. A single-grade laser tilts on one axis, which covers swales and drainage runs, while a dual-grade laser tilts on both axes for crowned sections and intersecting falls. For dirt work, single-grade capability is the practical minimum.
How accurate does a laser level need to be for grading?
For residential pads and driveways under about 150 feet, accuracy of plus or minus 1/8 inch at 100 feet is sufficient. Error accumulates roughly with distance, so the same machine is theoretically about a half inch off at 400 feet in the worst case. Long commercial flatwork and drainage runs justify the tightest accuracy you can get.
How long does a rotary laser diode last?
Experienced owners report that laser diodes typically wear out after roughly ten years depending on use. That is why warranty length and calibration service availability matter when you buy. Machines with three to five year terms are a safer long-term bet than a one-year budget unit you may replace twice over the same period.
Which Grading Laser Fits the Job You Actually Have
If you want one machine and no compromises, buy the Topcon RL-H5A. It has the tightest accuracy spec in the roundup, the longest quoted runtime, IP66 sealing and automatic re-leveling after a disturbance, and it recovers the reference plane on its own when something bumps the tripod.
If you are building a crew from zero and want everything in one purchase, the Spectra LL300N-1 saves you a second order. If you want the most capability per dollar, the Johnson 99-027K has a 2,000 foot working diameter and a full accessory set, but check its calibration early and buy a 3 mm hex key.
If your work is drainage and swales rather than flat pads, the Johnson 99-028K is the only dual-slope machine here and the only one that self-levels vertically. If you need beam visibility and layout work, look at the green VEVOR 203HG or the DOVOH H3-360G-KIT with its five year accuracy warranty. And if you are starting out and want professional-grade accuracy without a professional invoice, the Firecore FRL300R is the pick the owner reports back in on.
Whichever one you choose, verify accuracy against a known reference in your first week, run the tripod you would defend rather than the one in the box, and check every stake rather than spot checking. That habit matters more than any spec on this list. Compare these against the rest of our best rotary laser levels for grading picks when you narrow your shortlist, and you will be shooting accurate grade in 2026.
