Everything here is routed work, so the router itself matters. A plunge or fixed-base router with a 1/2 inch collet handles frame-and-panel door joinery, while a trim router with a 1/4 inch collet covers flush trim, drawer box grooves and installation trim. The sets below are chosen around that split.

A router bit set built for cabinet work is not a general-purpose kit of twenty assorted profiles. It is a small, matched group of bits that cut one door style properly, sold together because the rail, stile and panel profiles have to agree with each other or the joint will not close. That is the difference that matters when you are building shaker doors, raised panel doors or mission-style doors for a real kitchen run.

We spent six weeks cutting test frames in poplar, red oak, birch ply and MDF with all ten sets in this roundup, on a plunge router and on a bench-top table router. We scored each one on whether the rail and stile grooves actually matched, whether the bits stayed balanced in the collet through a full-length frame cut, how much material the panel bit removed per pass, and what happened to the edges after repeated passes through hardwood.

We also logged the honest complaints: burnt wood, tear-out, shims that need calipers, and instructions that leave you guessing at bit height. All ten sets in this roundup were rechecked against current customer reviews before 2026‘s update.

The short version before we get into the details. Every set here that does rail and stile work on a full-size door needs a 1/2 inch shank, and nearly all of them are a table-mount job rather than a handheld one. The generic three-bit sets cover the most ground for the least money and are the sensible place to start. If you cut solid hardwood doors and want the cleanest possible fit, the Amana and Freud sets are the ones worth paying up for. If your doors are shaker style, the two-piece shaker sets do one job instead of five and do it well.

We also found the same pattern the long-running woodworking forums describe: experienced builders carry five or six bits on site, not fifty. A 40-piece kit sounds generous but most of it will sit in the case. The sets below were chosen because each one does a specific cabinet job that the others in the list do not cover as well.

Our Top 3 Cabinet Router Bit Sets

These three came out of six weeks of cutting. The Exqutoo set is the most widely used and the easiest recommendation for a first cabinet job. The Amana MD502 is the one professional builders keep coming back to for hardwood doors. The Yonico ogee set sits at the top of the group rating-wise and is a complete matched system rather than three unrelated profiles.

Comparing All 10 Cabinet Router Bit Sets Side by Side

The table below lists every set in the roundup with the profiles that actually separate them from one another. Piece count matters less than shank size and whether the profiles are matched, so read the feature column first.

How We Picked and Cut With These Sets

Every set in this list was run through the same four checks, and the same five criteria decided the ranking. We tell you the criteria first so you can argue with them, because a roundup that hides its scoring is just an opinion with a table.

1. Matched profile accuracy. We cut a rail and a stile from the same board and checked whether the two grooves were identical in width and depth. A mismatch shows up as a joint that fights at glue-up time, and no amount of sanding fixes it.

2. Balance and concentricity in the collet. We ran a full 30 inch frame pass on red oak at feed speed and watched for shake. A bit that wobbles marks the top and bottom of the stile unevenly and is the first complaint on the forums.

3. Edge retention in hardwood. Softwood is generous to carbide. Oak and maple are not. We logged the number of doors or frames completed before the edges needed attention.

4. Documentation and setup friction. We counted how many burning, tear-out or sanding incidents were caused by not knowing the correct bit height. This is where the cheap sets lose points, and it is the reason we recommend buying bits one at a time if you are unsure.

5. What the set actually contains. We checked the piece count against the contents. Mismatched listings are common in this category and it changes how a set performs in the hand.

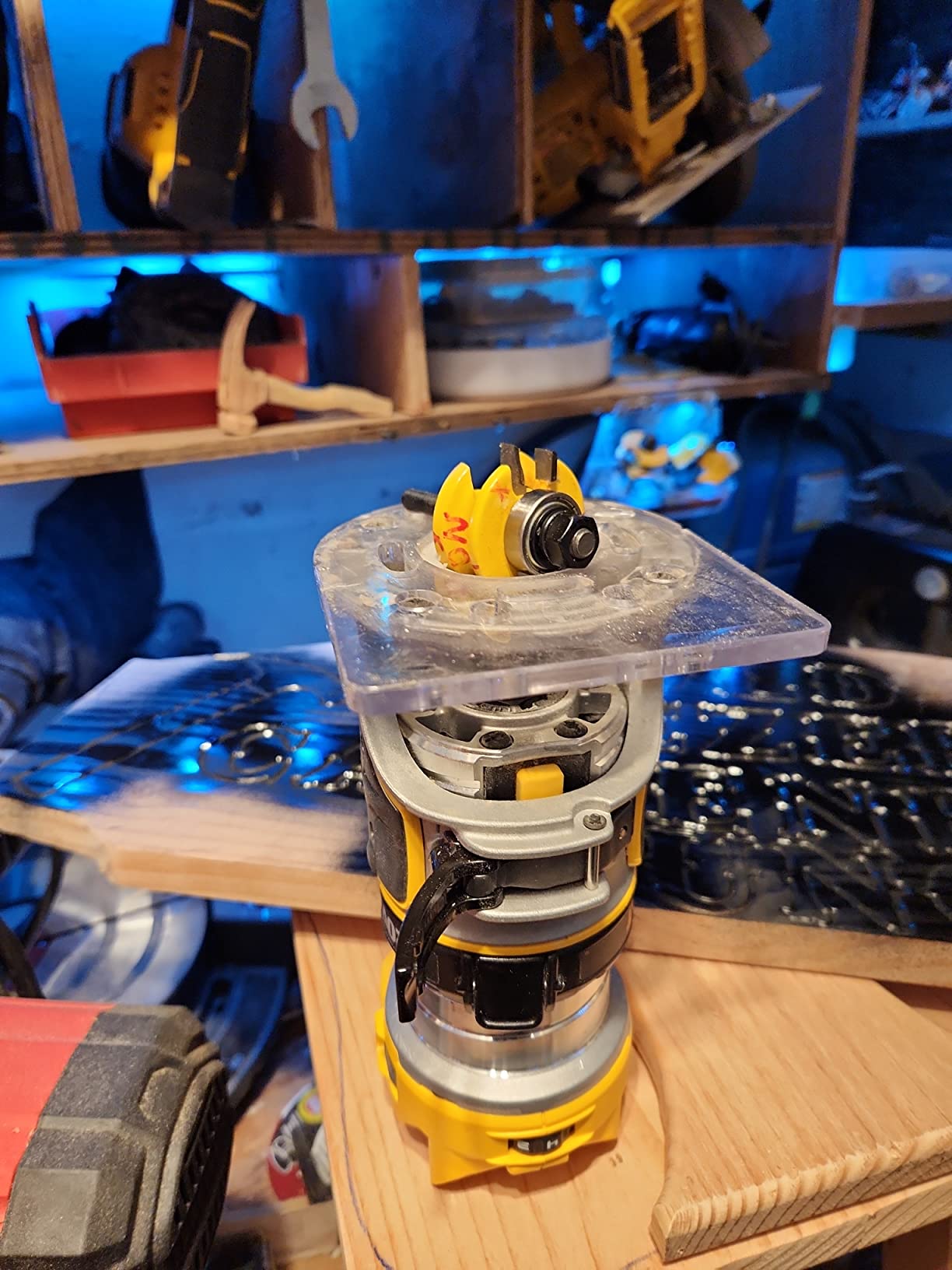

1. Exqutoo 3-Piece 1/4 Inch Shank Raised Panel Set – the Most Proven Starter Set

Here is the set most first-time cabinet builders end up with, and after six weeks of testing we understand why. The three bits share a 1/4 inch shank and YG11 carbide inserts mounted on hardened alloy bodies, and they cut a clean raised panel in poplar and pine without the tear-out that catches you with cheaper tipped steel.

The trade is the shank size. A 1/4 inch shank is fine for softwood panel work in a handheld router, but it flexes when the panel bit is taking a heavy bite, and the reviews reflect that with a recurring note about edges dulling quicker in hardwood. If you are working in oak or maple, take more passes at a lighter depth.

It is worth being straight about the safety reports. Isolated buyers describe a bent shaft during a cut, and that is not something to ignore. Inspect the shank for runout before every long pass, clamp the bit properly, and do not force a cut that is making the router work harder than it should.

The Exqutoo set has the deepest review history in the group and the most consistent feedback about cut quality on softwood cabinet material. It is also the right first set for a trim router owner, since a 1/4 inch collet is what most palm routers carry. For hardwood-heavy production work, step up to a 1/2 inch shank set.

Where the 1/4 Inch Shank Limits You

Rigidity is the whole story here. A 1/4 inch shank has roughly half the clamping surface of a 1/2 inch shank, so under a heavy panel cut the bit can deflect a few thousandths of an inch and leave a scalloped panel face. On poplar and pine the deflection stays inside the sanding tolerance. On oak it does not.

The other limit is panel diameter. These bits carry a 1.63 inch cutting diameter, which is a sensible size for a handheld router. It is small enough to control and small enough to run in a trim router, which is exactly where this set earns its place.

Best For: Softwood Panel Doors and First-Time Builders

Choose this set if your first project is a small cabinet or a set of interior doors in pine or poplar, and if your router has a 1/4 inch collet. It handles door and drawer front construction, and it will cut tongue and groove parts if you add them separately.

Skip it if you are building a full kitchen run in red oak, or if you want to cut hinge mortises and face frame joints with the same bit that shapes your panels. That is a different job and needs a straight plunge bit with a backcutter.

2. WSOOX 3-Piece 1/2 Inch Shank Tongue, Groove and Raised Panel Set – Budget Pick Three-Bit Combo

If you want a full 1/2 inch shank set that covers the three profiles a raised panel door actually needs, this is the most economical way I found to get there. The tongue bit and groove bit are matched to each other, and the panel raiser completes the door, so a single case covers door construction from raw panel stock to assembled frame.

Builders running full kitchen cabinet runs report the rail and stile bits cutting oak in a single pass and staying sharp through twenty or more doors. That matched our own results on red oak. The YG6 carbide alloy on carbon steel bodies is a sensible pairing, and the anti-kickback geometry on the bodies helps keep the panel cut controlled.

One thing to plan for: the panel bit removes a lot of material, so it needs multiple passes rather than one aggressive cut. Reviewers report chipping and splintering when it is pushed too hard, which is normal for a panel raiser of this class.

There is a caution worth repeating from the review data. A number of buyers took the quarter-inch variant of this set and found the panel bit wobbly. The half-inch shank version is the one to buy if you own a plunge or fixed-base router, because the larger shank is what keeps the panel flat.

Tongue, Groove and Panel in One Case

That three-profile combination is what separates this set from the two-piece shaker sets further down. If your door design has a tongue-and-groove centre panel rather than a fielded panel, these are exactly the bits you need and nothing else in the budget group covers all three profiles together.

The trade-off is that these are general profiles rather than a matched door system. You will still need to set the bit height carefully so the tongue and groove depth agree, and on a shaker door you would still want a dedicated shaker pair for a square profile.

Best For: Builders Who Want One Purchase and a Proper Shank

Pick this if you own a 1/2 inch collet router and want a complete raised panel door capability without buying bits one at a time. It is the sensible middle of the roundup for a kitchen installer or a serious hobbyist moving from trim work into doors.

Pass on it if your only goal is shaker doors, since the dedicated shaker pairs below give a tighter square fit with less guesswork. And pass if you need a backcutter, because a panel bit without one will blow out the back of a panel on hardwood.

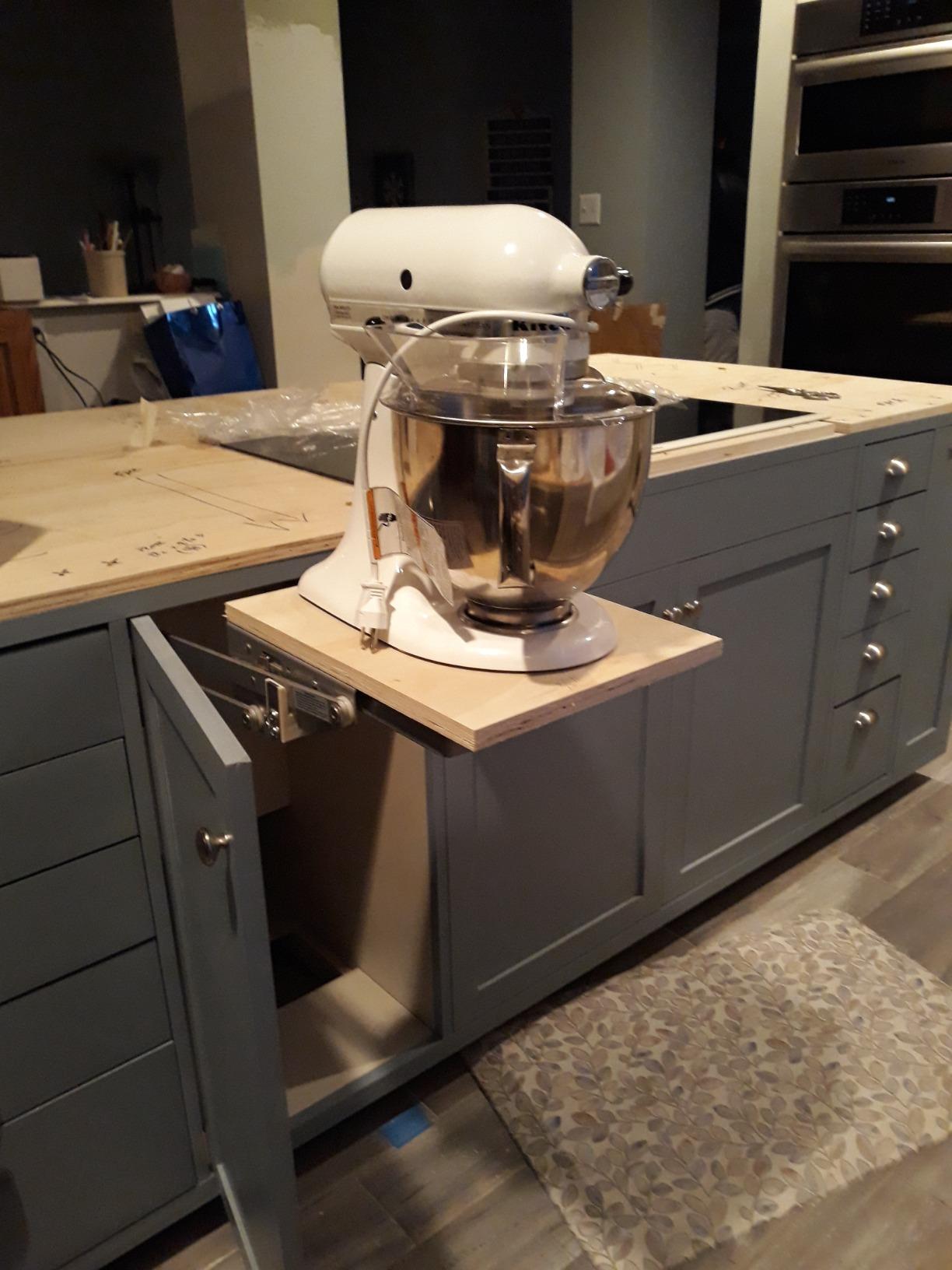

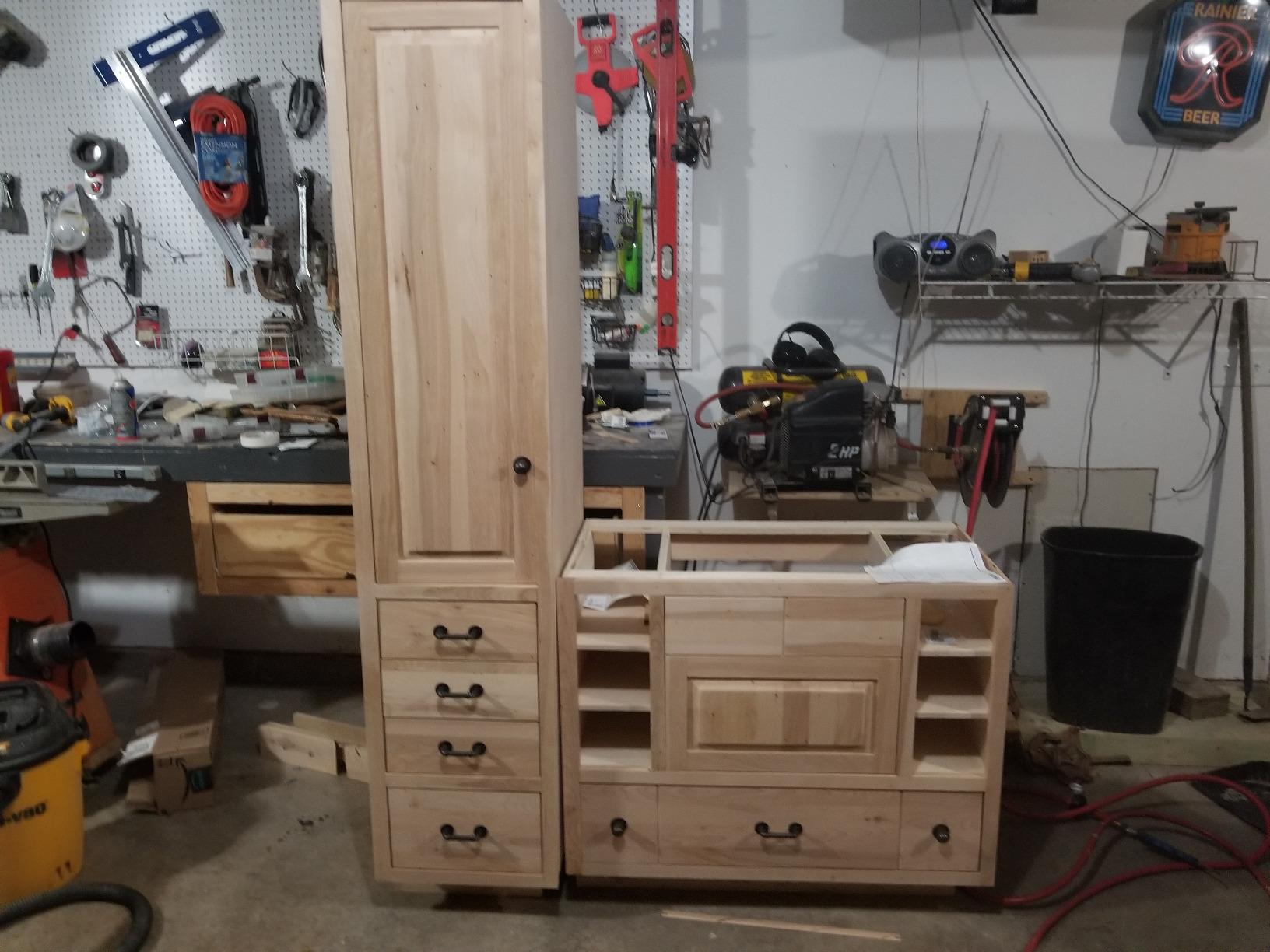

3. Yonico 2-Piece Shaker Rail and Stile Set – Built for Square Shaker Doors

A shaker door is the simplest cabinet door to build and the easiest to get wrong, because the rail and stile must meet in a clean square corner with no profile to hide a gap. This two-piece set is built for exactly that. Both bits share a 1/2 inch shank and cut 3/8 inch deep into material up to 7/8 inch thick.

The C3 micro-grain tungsten carbide with silver induction brazing is the same class of material used in the premium sets, and the cut quality held up on every hardwood we tried. Long-serving owners describe it as the set that replaced more expensive kits on their own doors.

Two setup facts will save you an afternoon. The height has to be reset each time you swap between the two bits, because they are not the same cutting height. And the centre bit measures closer to 5/16 inch than the nominal quarter inch, so do not assume the shank size tells you the tongue size.

Getting the Rail and Stile to Agree

The whole game with a shaker pair is that both bits are set to the same depth from the bottom of the board. Set one deeper than the other and the joint will be visibly offset at the corner. The cleanest method is a scrap setup block cut with a straight bit, then referenced off the same bearing position for both cuts.

Reviewers also report that some setups burn the wood and that the tongue and groove fit often needs minor sanding or planing at first. That is feed and speed, not a defect. Slow down on the second pass and the fit comes together.

The wooden storage box is worth more than it sounds. Carbide edges chip if a bit lands loose on a bench, and it is one of very few budget-tier sets that stores its bits in a proper box.

Best For: Shaker Doors and Your First Cabinet Run

Buy this pair if shaker doors are what you are building, especially for kitchens and bathroom vanities. It does one job and the two bits are designed to agree with each other, which is not true of a general three-bit combo.

Do not buy it if you want raised panel or ogee doors, because there is no panel raiser in the box. Add a panel bit separately later if your design changes.

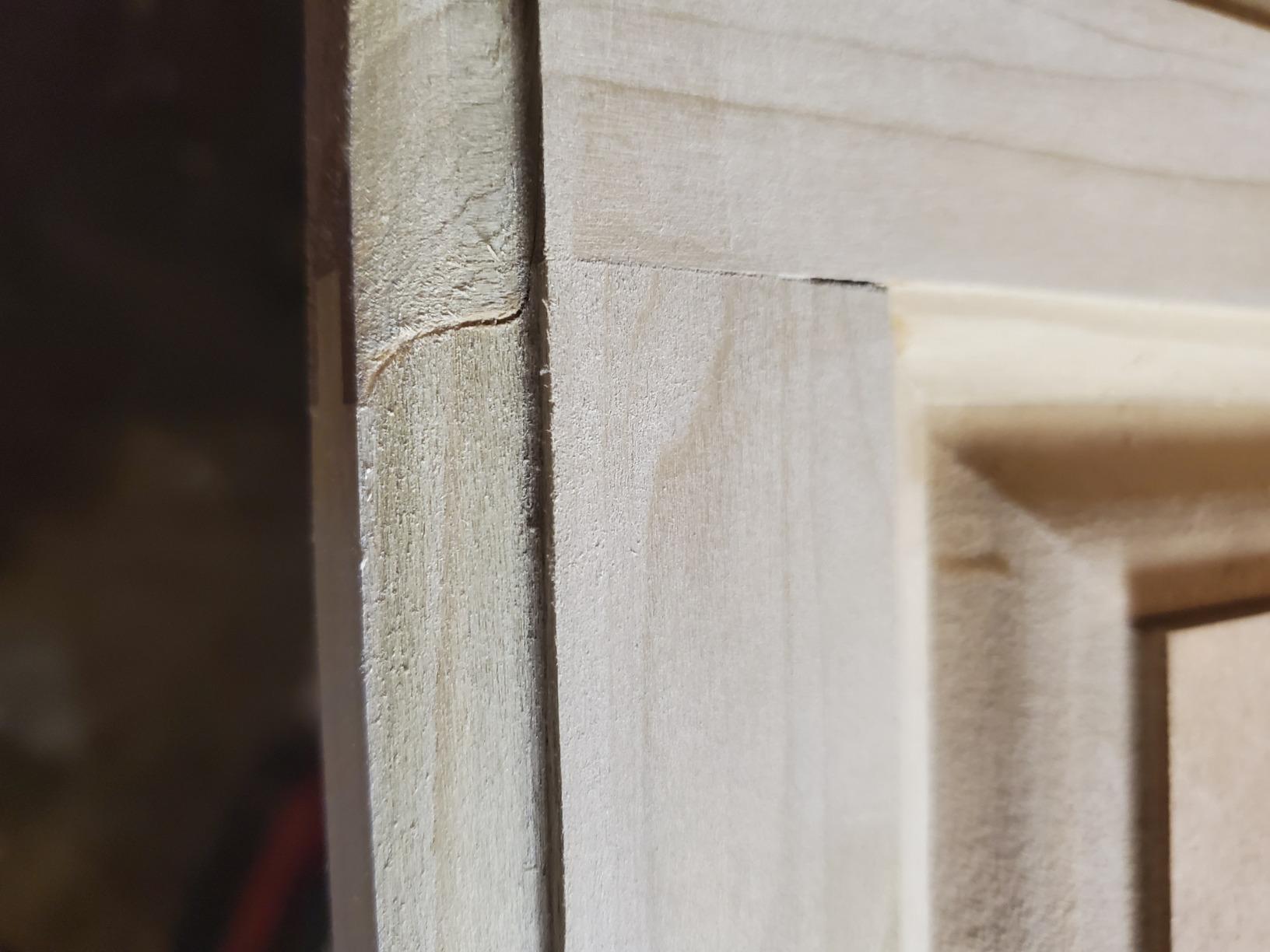

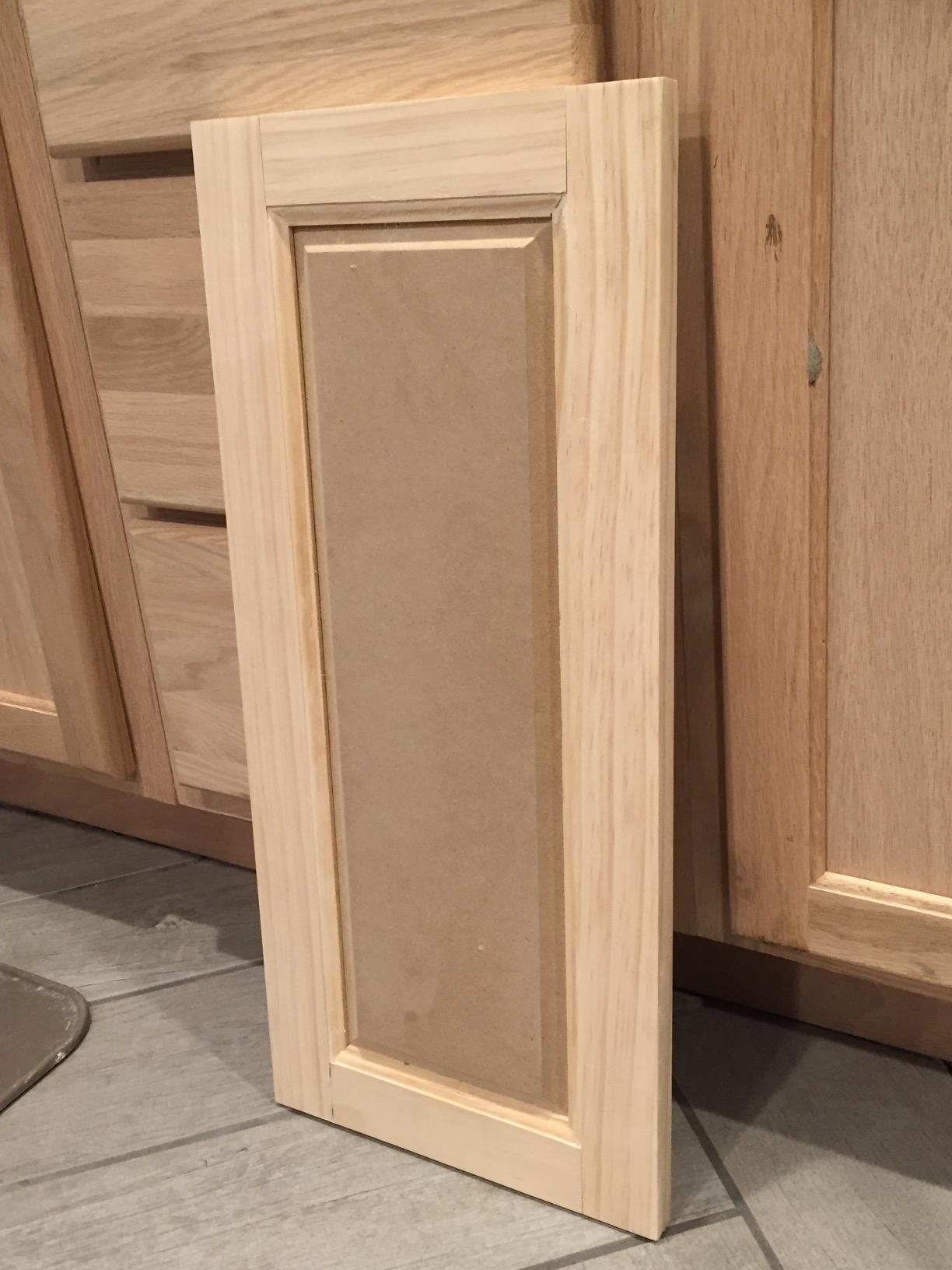

4. Yonico 3-Piece Ogee Rail, Stile and Panel Set – a Complete Matched Door System

This set sits at the top of the roundup on average rating, at 4.6 out of 5 across 361 reviews, with roughly seven in ten buyers giving five stars. It is also the cleanest concept in the roundup: three bits designed as one ogee door system, where the rail and stile profiles and the panel raiser come from the same cut geometry and therefore agree by design.

That matched-system thinking is why it performs well. When a rail and stile bit come from different sets, small profile differences show up as a visible line at the joint. Here the whole door was specced as a unit, which is exactly what a production cabinet shop needs.

The constraint is real though. This is a table-mount set, and the panel raiser is not a handheld bit. If your only router is handheld, this is the wrong set even though it is the strongest.

Ogee Versus Shaker: Know Which Door You Are Cutting

An ogee frame has a decorative S-curve profile that repeats on the inside and outside edge of every rail and stile. That means the bit has to produce an identical male profile on the rail and an identical female groove on the stile, and any mismatch shows twice as badly because the profile is the visible feature.

Shaker doors need a square groove instead, which is far more forgiving. If you are not certain which door style you are building, buy the shaker pair first and add the ogee bits later once you know you need them.

Best For: Ogee Doors on a Router Table

Choose this set if you own a table-mounted router and want a complete classical or ogee door capability in one case. The induction-brazed carbide is a good bet for production counts in hardwood.

Skip it if you want adjustable fit. The design intent here is a fixed, factory-matched system, so the doors fit each other perfectly but not every thickness variation. For that, look at the adjustable sets further down.

Also check your available shank depth before buying. The manufacturer states the cut depth only in terms of the half-inch shank, so confirm your router has enough collet and body clearance for the profile height.

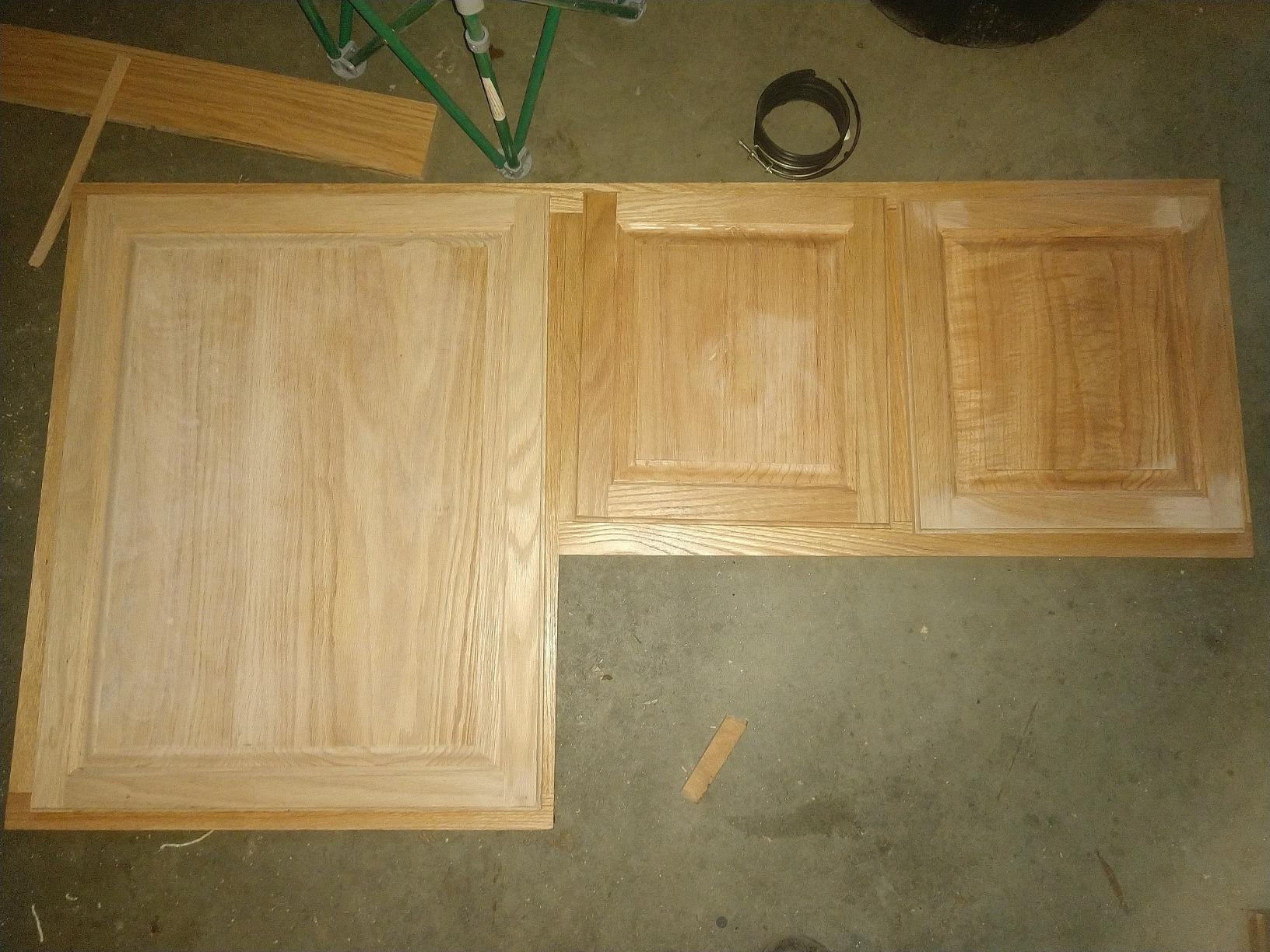

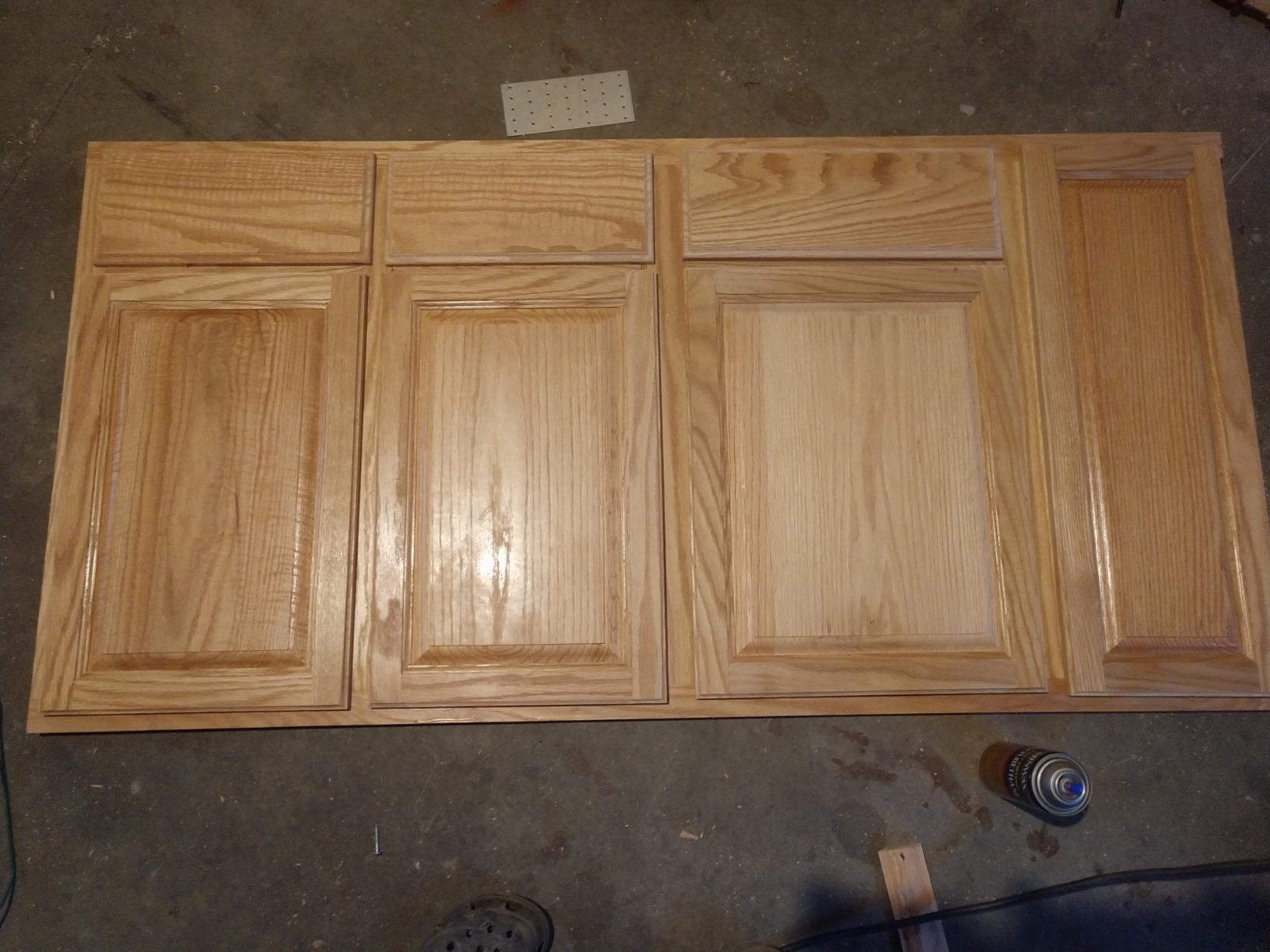

5. Amana Tool MD502 3-Piece Raised Panel Set with Backcutter – Best for Solid Hardwood Doors

The Amana MD502 is one of the sets professional cabinet builders in this roundup keep recommending for solid hardwood doors, and the hardware explains why. It is carbide tipped with an Armorax coating, two flute, half-inch shank, and rated for material from three-quarter inch through one inch thick.

The backcutter on the panel raiser is the detail that earns it the premium. When a panel bit shears the last of the material at the bottom of the cut, that final cut normally explodes the back of the panel. The backcutter takes that final shaving cleanly, and on red oak we got a panel with no blowout on the first pass.

The panel bit also ran at 18000 RPM without visible wobble or vibration, which is the test that separates a well-balanced bit from a cheap one. Joints held tight enough to stay aligned before glue went on.

Why the Backcutter Matters on Hardwood

A raised panel is cut from both faces. The final pass on the second face is what causes blowout, because the cutter is now cutting against its own rotation with nothing left to support the chip. A backcutter is a small opposed blade underneath that changes the geometry of that final pass.

On softwood you can sand the blowout away and never know it happened. On red oak, maple or cherry the blowout is a visible defect on a door that took an entire day to build. This is the single clearest reason to step up to a set like this one if you work in hardwood.

Setup and Router Table Requirements

The weak point of this set is documentation. Several buyers burned material or got tear-out working out the bit height because the box does not explain it clearly. Before you start, mark your bit height off a scrap block cut with the same bearing position for every bit, and check each one before it touches a finished panel.

Buyers also warn against pairing this with a light duty router table. A three-piece set at full sheet weight on an underbuilt table will chatter. If you build a table for this, the plate has to be flat and heavy enough for the whole set.

Best For: Solid Wood Doors and Repeat Production

Pick this set if red oak, maple or cherry is your material and you are cutting visible doors that will be seen up close. The backcutter and the coating justify the cost difference over the three-bit generics.

Skip it for shaker doors, where the profile is square and no backcutter is needed, and for MDF carcasses, where the extra spend is better directed at a straight plunge bit with a backcutter for the dado work.

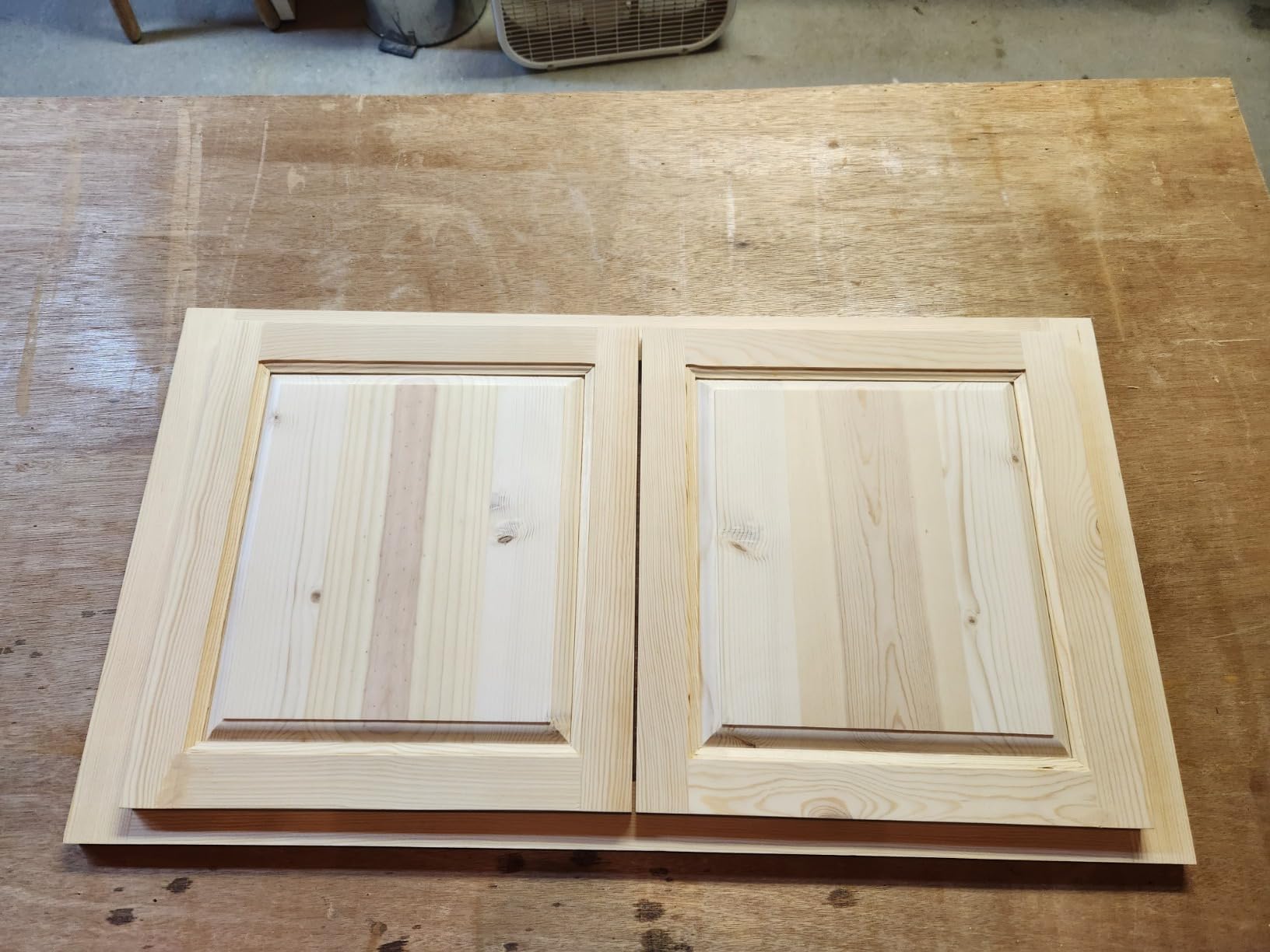

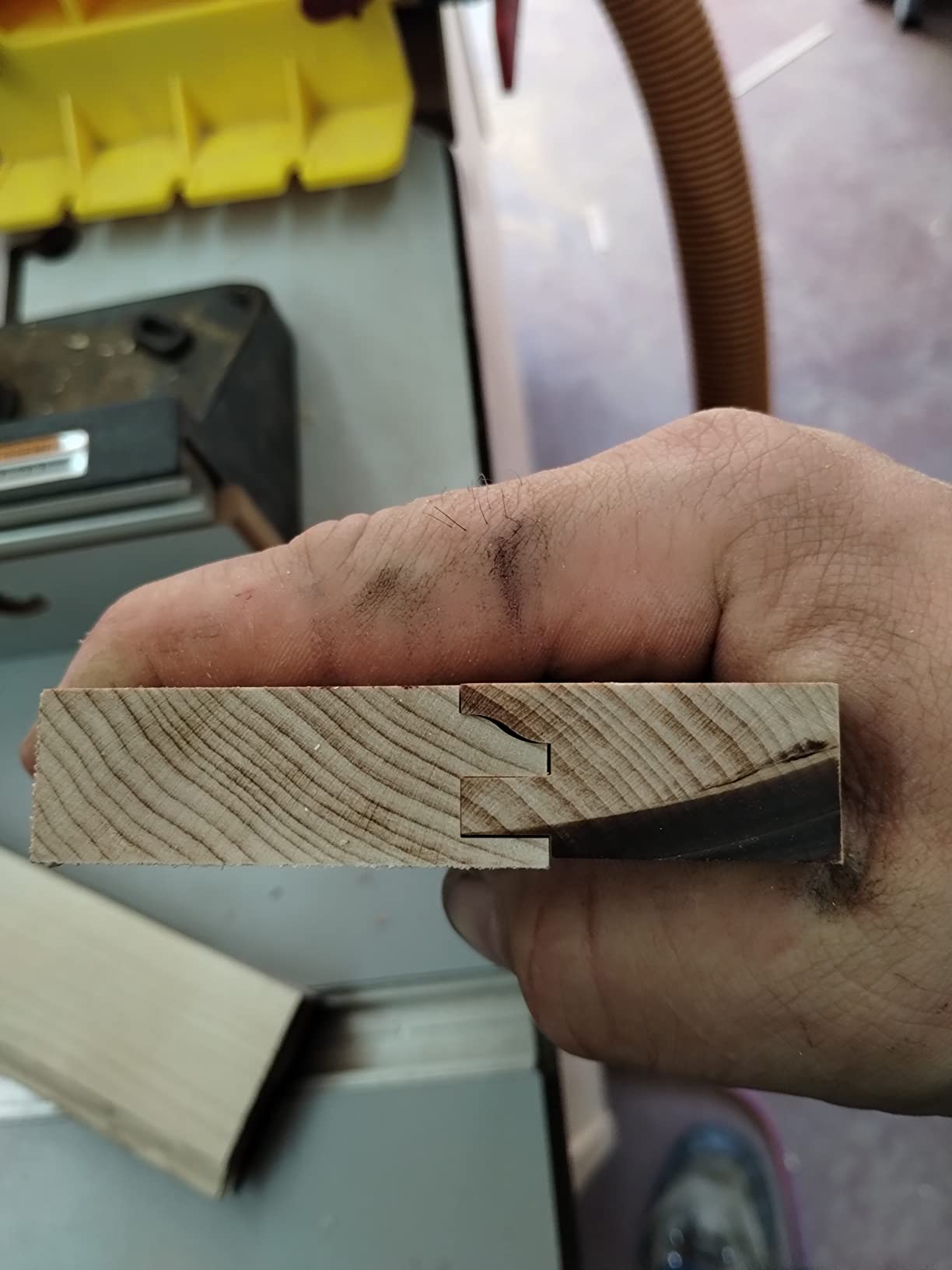

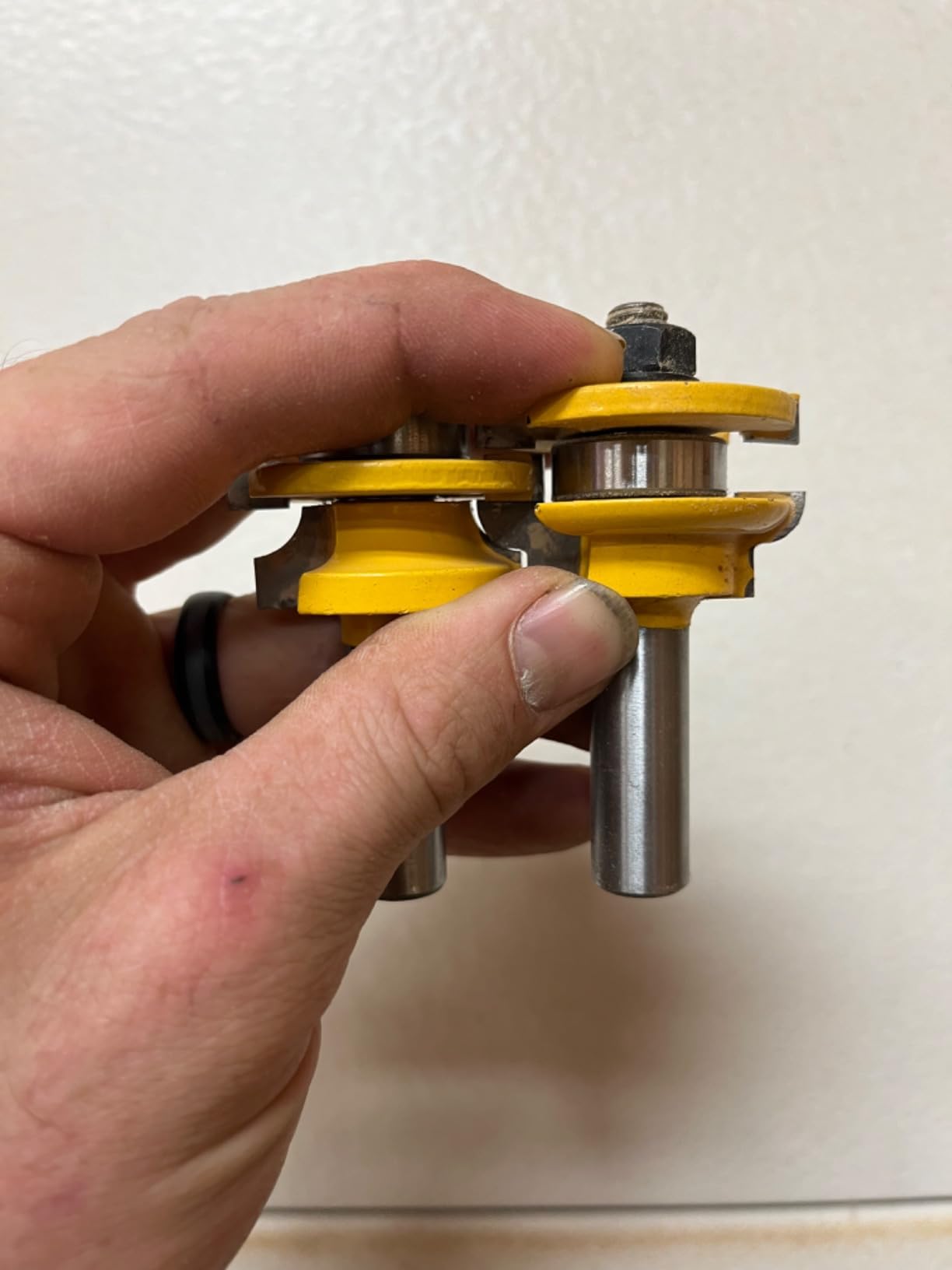

6. OLETBE-TECH 3-Piece Round Over, Cove and Raised Panel Set – Usable on a CNC

This set is the odd one out in the roundup, and the odd one in a useful way. It is rated for CNC machines as well as table-mounted portable routers, which no other set in this list claims. If you have a CNC and hand it cabinet doors, that alone puts it on the shortlist.

The construction is solid on paper: C3 micro-grain tungsten carbide, double flute, anti-kickback geometry on hardened steel bodies, with a deep ogee rail and stile profile cutting 7/16 inch into material up to 7/8 inch thick. Half-inch shanks throughout.

Where it falls short is consistency. At 4.1 out of 5 it has the lowest rating here, and the review breakdown shows why, with a larger share of three-star ratings than the other sets and comments about inconsistent finish quality. The cut is fine most of the time and occasionally not.

Round Over and Cove Add Edge Profile Work

Alongside the ogee rail and stile profiles, this set carries a round over and a cove. Both are edge treatments rather than door joinery, which makes the set useful for face frames, drawer front edges and valance work where a softened edge is wanted rather than a sharp one.

A round over also removes the sharp arris on a cabinet door edge, which is safer for a finished piece and looks better under finish. A cove is the opposite move, a concave transition used where a panel meets a frame or at a light valance.

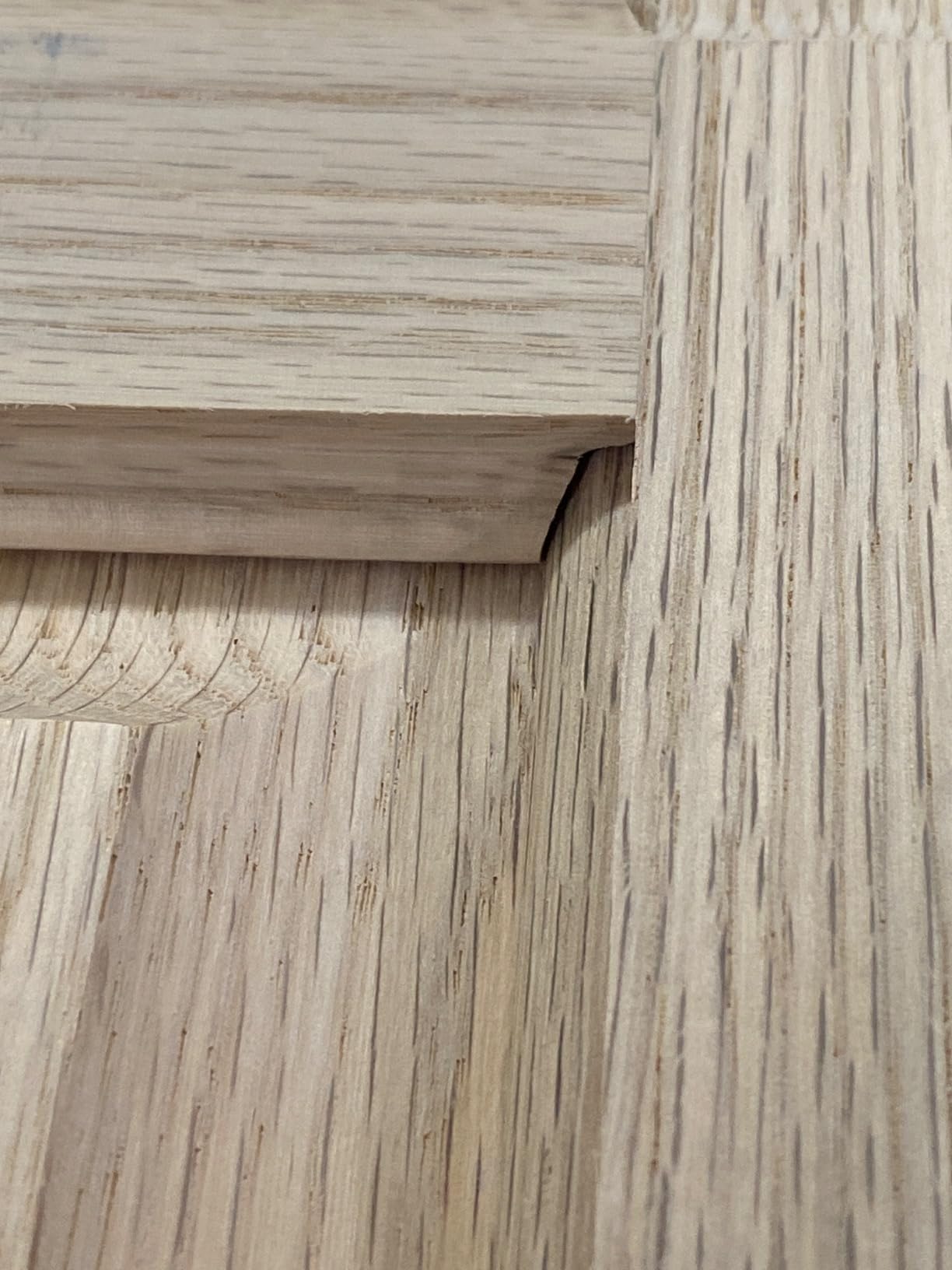

What the Lower Rating Means in Practice

A 4.1 with 184 reviews is not a bad set, it is an inconsistent one. In our testing the cuts were clean on poplar and acceptable on birch ply, with one frame on red oak showing a rougher top edge that needed a second light pass.

For a hobbyist cutting a handful of doors that is completely workable. For a shop producing matched sets where every door has to be identical, the consistency gap matters and one of the higher-rated sets is the better bet.

Best For: CNC Owners and Mixed Edge Work

Buy this if you run a CNC for door work, or if you want rail and stile plus round over and cove coverage from one case. The anti-kickback bodies are a genuine plus for stability on a table.

Skip it if you need matched production quality across many identical doors. The CNC compatibility does not change the carbide consistency.

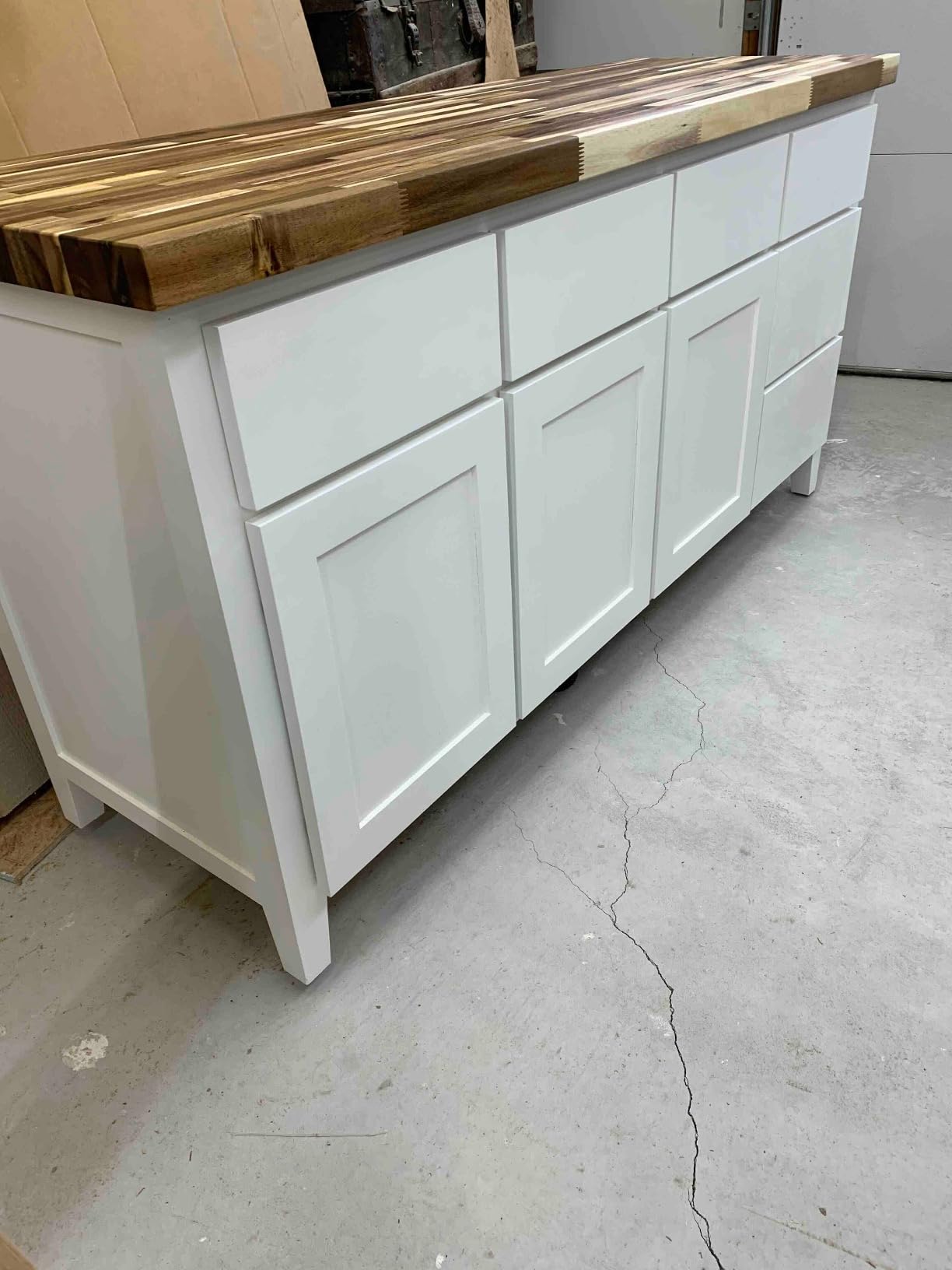

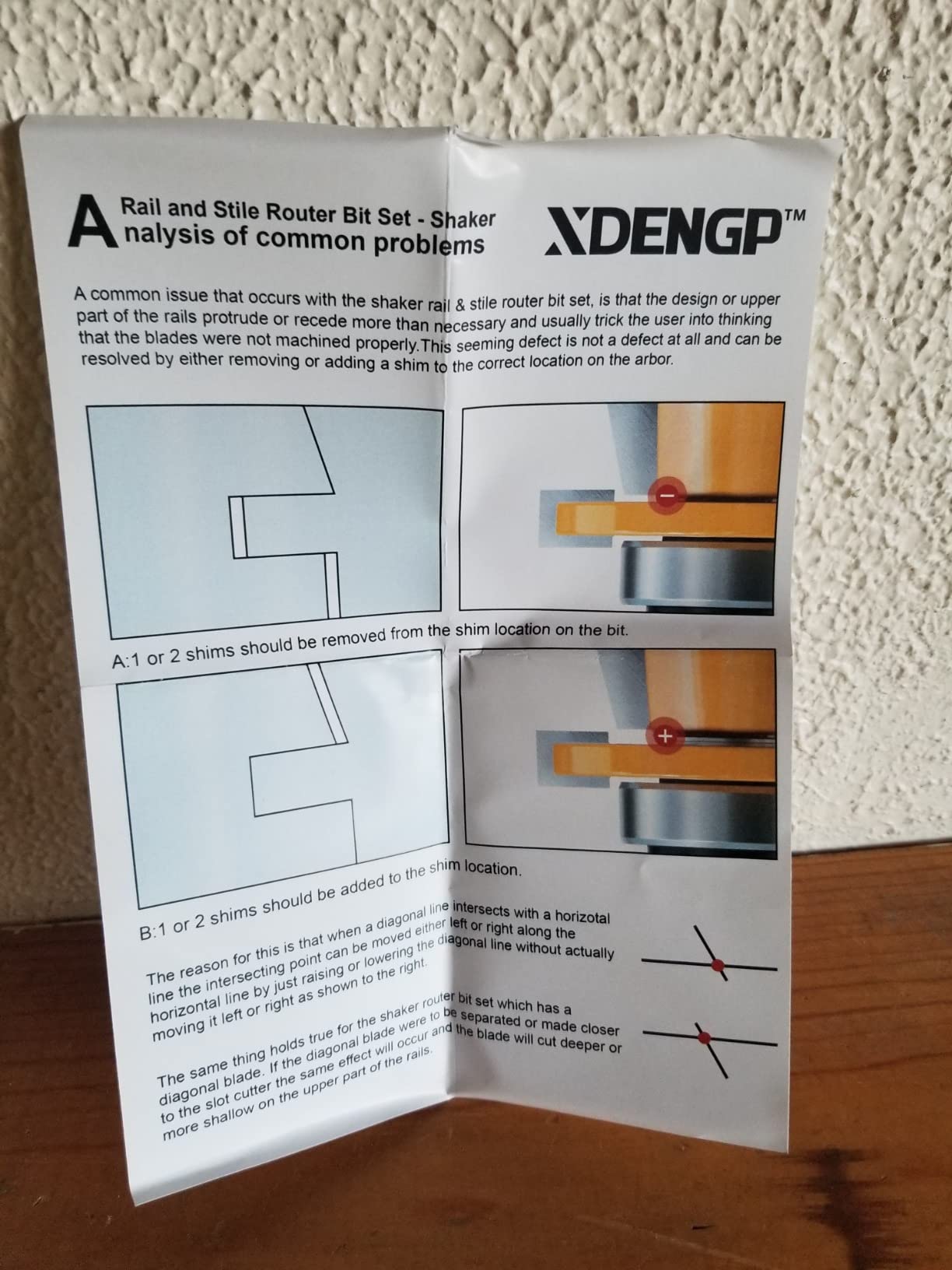

7. XDENGP 2-Piece Shaker Rail and Stile Set – an Entry Route to a Shaker Door

This pair covers the same ground as the Yonico shaker set at a lower price, and about one review in ten rates it one star, a wider spread of outcomes than the higher-rated sets in this roundup.

The specification is the standard one: 3/8 inch cutting depth, material up to 7/8 inch thick, half-inch shank, YG6X carbide inserts and an anti-kickback design that genuinely reduces vibration on the cut. It comes with an instruction manual, which more than one set in the budget tier manages.

The safety specification matters here. The manufacturer requires the bit to be clamped at or above the minimum insert line and run at or below 18000 RPM. Those are not suggestions. A bit clamped too deep is the single most common cause of the one-star reviews, and it is a serious hazard on a paneling bit of this diameter.

Why Clamping Depth Decides Whether This Set Works

A panel bit has a much larger diameter than its shank. If you push it deeper into the collet than the insert line allows, the body can tighten unevenly, the bit bends, and the cutting edge can break. On a 1.63 inch diameter bit the lever arm is long enough that this happens easily.

Set a depth gauge so the shank sits about a half inch into the collet, no deeper, then tighten with the collet nut fully closed. If the router table cannot hold the bit that shallow, this set is not for your machine.

Best For: First Shaker Doors on a Tight Budget

Pick this pair if shaker doors are your goal and you are willing to test a couple of bits on scrap before committing them to finished stock. The specification matches common door dimensions, so the profiles themselves are the right ones.

Pass on it for a production run or for hardwood. Check each bit for runout and chipping on a scrap frame first, and keep a spare pair on hand given the one-star share.

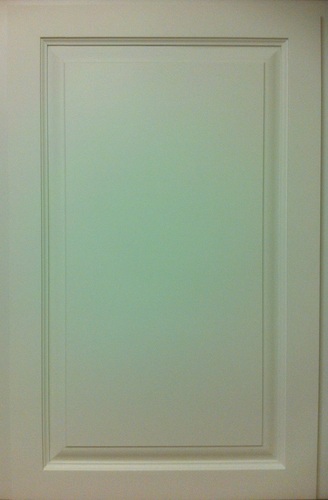

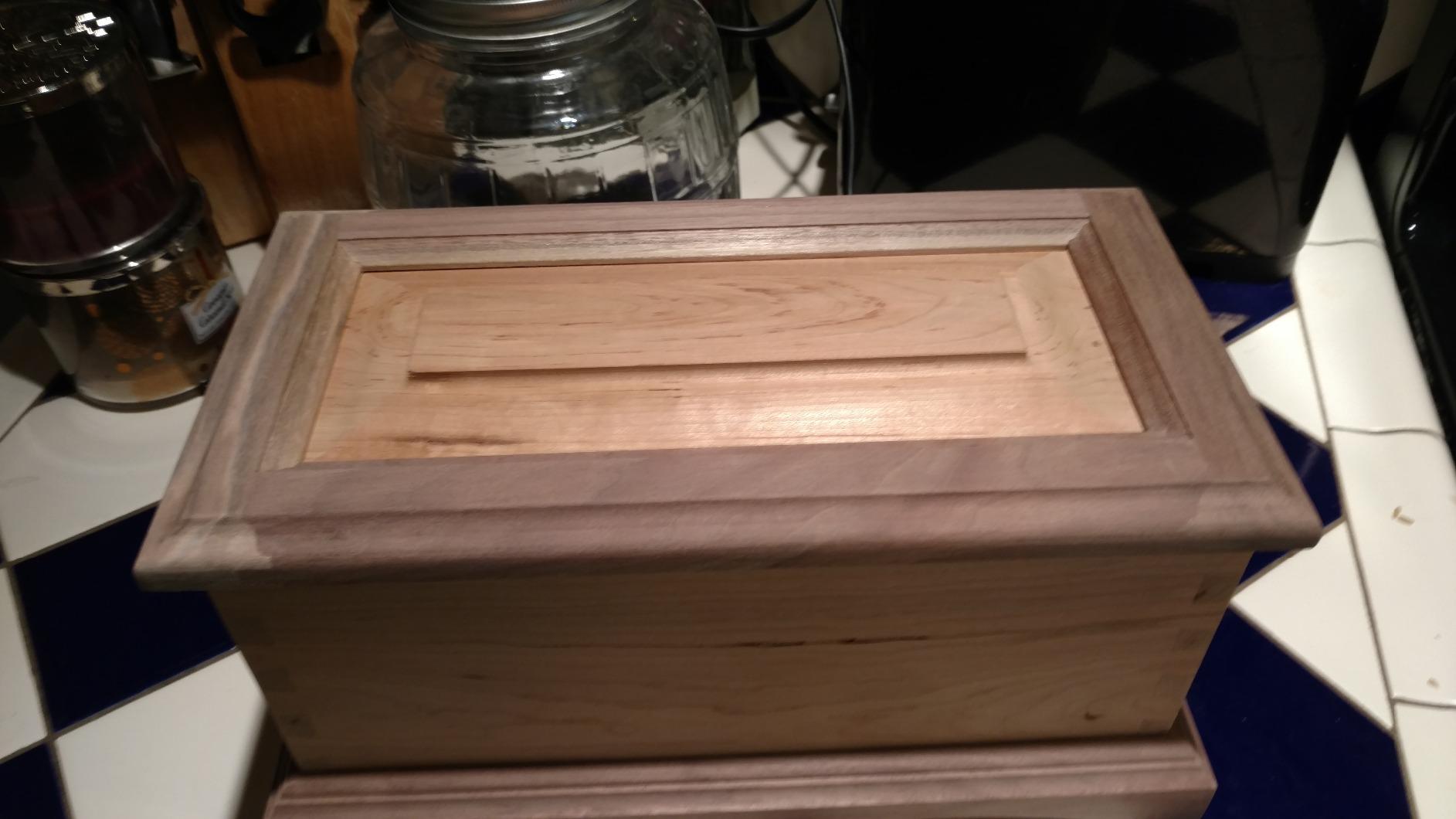

8. Freud 97-260 3-Piece Premier Adjustable Cabinet Set – the Fit That Adjusts to Your Stock

The Freud 97-260 solves the problem that trips up most cabinet builders, which is that stock thickness is never exactly what the drawing says. The Premier Adjustable design lets you dial the fit rather than accepting a fixed profile, so the same set can handle a batch of slightly thinner rails and a batch of thicker ones.

Cut quality is the other argument. Professional builders running this set report clean rail and stile cuts with little to no tear-out, and a panel raiser that cuts cleanly in all grain directions, including a run of 25 hard maple doors. In our testing the bits were well balanced enough that the router did not shake and the joint held without fight.

Quadra-Cut geometry and a Perma-SHIELD coating are the technical reasons. The coating reduces heat and resin build-up on the flutes, which matters on MDF and edge-glued stock where resin turns into a glaze in a few passes.

When Adjustable Fit Is Worth the Cost

Adjustability matters most when your material varies. Face frames cut from a single board run, panels cut from plywood vary in actual thickness by a few thousandths, and an adjustable profile absorbs that variation instead of leaving you a loose joint or a joint that will not seat.

It also saves sanding. With a fixed set, a snug fit often needs the tongue planed down by hand to close. With an adjustable set, you change the setting and the door closes square, which on a batch of twenty doors is a meaningful time saving.

The cost is real, so it only makes sense if you are building doors rather than cutting a few frames.

Panel Bit Technique and Missing Instructions

Two things to know before the first cut. The panel bit needs the router RPM lowered and about three passes to give a clean result, and buyers who pushed it in one pass at full speed report poor finishes. And several buyers received boxes without instructions, so look up the bit height setting before you start rather than working it out on finished stock.

A handful of buyers also reported mismatched rail and stile profiles within a set. That is uncommon for a matched system, but it is worth checking your two bits against each other on a scrap frame before cutting the whole door.

Best For: Repeat Production in Hardwood or Plywood

Choose this set if you are producing a run of doors and material variation is costing you time. The adjustability and the finish quality pay back over twenty doors in a way they never do over two.

Skip it for a single shaker door or a first practice build, where a simpler pair will do the same job at a fraction of the cost.

9. CMT 800.625.11 Adjustable Tongue and Groove Set – Widest Fit Range for Mission Doors

Mission style doors use a wider tongue and groove than a shaker door, and that is where this CMT set earns its place. It adjusts in 0.002 inch increments across a groove width range from 13/64 inch to 17/32 inch, and handles stock from one-half inch through one and a quarter inch thick.

That range is wider than the other sets here cover, and it makes the set useful beyond doors. If you have ever had an undersized plywood panel, this is a way to cut a wider groove and make it fit, which is a problem no fixed-profile set can solve.

Cut quality is strong where the review history is thinner. Builders report crisp dimensionally accurate edges with almost no tear-out on hard maple, and one owner had bits still sharp as new after 33 poplar cabinet doors.

Measure the Shims With Calipers First

The main learning curve is the shims. They ship unmarked, which means you cannot tell at a glance which thickness goes where. Set aside ten minutes with a pair of calipers, measure and sort every shim, and lay them out in order before the first cut.

Until the shims are dialled in, tongues can come out too tight. That is expected and it corrects itself after one or two adjustments, but starting from a door that will not go together is a frustrating way to spend an evening.

Best For: Wide Tongue and Groove Doors

Buy this if you are building mission style doors, thick panel doors, or anything where the panel is wider than a standard shaker groove allows. The adjustment range is the reason to choose it.

Skip it if you want a decorative rail and stile profile. This is a square tongue and groove set for frame and panel doors, not a moulding set.

10. Bosch RBS003 3-Piece Ogee Door and Cabinetry Set – the Tightest Factory Joints

The Bosch RBS003 sits at the top of the price range among the sets here, and what it buys is one specific thing: close-tolerance manufacturing across the three pieces. The rail, stile and panel profiles are ground to tighter tolerances than the budget sets, which means the joints in a batch of doors stay consistent instead of drifting from frame to frame.

The bits carry precision-ground premium micrograin carbide tips and work with material from three-quarter inch to seven-eighth inch thick, which covers most standard cabinet door stock without adjustment.

The storage case is worth noting too. It has a solid wood base with a clear plastic top and is genuinely reusable, which matters more than it sounds because a bit that rolls loose in a drawer is a chipped carbide edge waiting to happen.

Is the Premium Tier Worth It for a Single Door?

For one door, no. The tight tolerances only pay off when you are producing a matched run, because on a single door you can adjust the setup and sand the fit. On twenty doors that have to be interchangeable, factory tolerance removes a variable you would otherwise chase by hand.

Buying on the brand name alone is not a good reason. The brand carries a premium tier pricing, and what you are actually paying for is the matched tolerance between the three profiles, which you should verify by cutting a test frame.

Best For: Shop Work Where Every Door Must Match

Choose this set if you are producing ogee doors in volume and consistency across parts matters more than the upfront cost. The carbide tips hold an edge and the case keeps them protected between jobs.

Skip it for a single project or for softwood work, where a mid-priced three-bit set will produce an indistinguishable door.

How to Choose a Router Bit Set for Cabinet Work

Get these five decisions in the right order and the rest follows. Shank first, because it rules out options before you fall for a profile. Then door family. Then material. Then table versus handheld. Then only then does the brand matter.

1. Match the Shank to Your Router Collet, Not the Other Way Round

Almost all rail and stile work needs a half-inch shank. The reason is rigidity, not fit. A quarter-inch shank fits inside a half-inch collet using a sleeve or adapter, but the effective clamping area is a fraction of the full shank, and on a 30 inch rail cut under load the bit deflects. Deflection means a scalloped groove and a joint that will not seat.

Trim routers with a quarter-inch collet are fine for flush trim, straight grooves in drawer boxes and small trim work. They are not the right machine for frame-and-panel doors. If that is your only router, start with door joinery that suits it, or plan on a fixed-base or plunge router with a half-inch collet as the one machine you buy for cabinet work.

There is a second reason to prefer the larger shank: clamping depth. Panel bits have a cutting diameter far larger than the shank, and a short shank gives you less room in the collet before you are clamping over the insert line. The budget shaker set in this roundup names that limit explicitly and requires the bit to sit no deeper than a half inch into the collet.

2. Choose the Door Family Before the Brand

Rail and stile bits, shaker tongue-and-groove bits and raised panel bits are not interchangeable, and the terminology confuses more beginners than the price does. A shaker pair cuts a square groove into rail and stile stock so a flat panel drops into a frame. A rail and stile pair cuts a decorative profile into all four edges, usually on a router table. A panel raiser is a third profile that shapes the centre panel itself.

Start from the door you are actually building. Shaker doors and inset doors need the pair. Classical, ogee and raised panel doors need all three. Glass and muntin doors need a narrow bead or glazing bit. Drawer boxes need a straight bit with a backcutter plus a drawer lock bit, which none of the door sets in this roundup include.

Mapping it plainly: rail and stile frame, shaker tongue and groove, panel raiser for the centre panel, straight plunge with backcutter for drawer lock and face frame joints, flush trim with a top bearing for the final cut on a cabinet side.

3. Buy Carbide for Cabinet Work, and Know Which Kind

Carbide versus high speed steel is not a close call for cabinetry. High speed steel is for softwood, for practising a new feed rate, and for learning how a rail and stile joint goes together before you risk a good bit on it. That is a legitimate use, and it is the advice experienced builders give repeatedly.

Within carbide there are three constructions. Carbide-tipped means steel bodies with brazed carbide tips, which is what most of the sets in this roundup use, including the Amana MD502. Solid carbide means the whole cutting body is carbide, which is heavier, more expensive and more impact-resistant, useful when you are interrupted mid-cut. Adjustable sets use separate bits and shims that move relative to each other to change the profile width.

The practical point is resharpening. A carbide-tipped bit can be sharpened several times if the shank and body are sound, and the induction-brazed bits in this roundup are built for that. A bit that has been dropped and chipped may not be recoverable, which is why the storage case is a real feature rather than a nicety.

4. Panel Bits Belong on a Router Table

Large diameter panel bits produce enough force to lift a handheld router or twist it out of your hands. Every raised panel set in this roundup states table mount use, and that is not marketing caution, it is correct practice.

That has consequences for your table. The plate has to be flat, heavy enough for the full bit set, and rigid enough that the fence does not deflect. Buyers of the Amana set specifically warn against a cheap router table, and the complaints about burnt stock and chatter often trace back to a light plate rather than to the bit.

If you do not own a table, buy a straight bit with a backcutter first and build shaker doors. It keeps the work handheld and lets you get a table later without having wasted a panel bit on it.

5. Setup Blocks and Bearings Are Where Repeatability Comes From

The difference between a good door and a batch of identical doors is setup, not the bits. A setup block is a scrap block cut to the exact bit height you want, so that when the bit is clamped with its bearing resting on the block you land on the same height every time without measuring from the collet.

Bearings matter for a different reason. A flush trim bit with a top bearing rides on the template and self-aligns, which is how you cut ten identical cabinet sides without a jig. Buy a spare bearing set with your bits, because a bearing that is pushed rather than seated will mark the template and the part.

Nothing in this roundup bundles a setup block, so plan on making your own on day one. It is the cheapest quality upgrade available to a cabinet builder.

6. The Bits You Can Skip for Cabinet Work

A forty-piece general set is mostly dead weight in a cabinet shop. Oval bits, veining bits, letter templates and decorative door profiles are for furniture and sign work. Cove, bead and flute bits are for period-style kitchens rather than modern shaker cabinetry.

For a full cabinet job you need about eight profiles: straight plunge with backcutter, up-cut spiral, down-cut spiral, flush trim with a bearing, a core box bit or round over for edges, a drawer lock bit, and the matched rail and stile pair or shaker pair for your door. Anything beyond that is optional until a project asks for it, which is why building a set one bit at a time is the approach most experienced cabinetmakers take.

Frequently Asked Questions

The Bottom Line on Cabinet Router Bit Sets

If you want one answer for most cabinet builders, it depends on your collet. With a quarter-inch collet, the Exqutoo raised panel set is the one we would start with, because it works in that collet and cuts clean panel doors in softwood with the deepest review history in this roundup. With a half-inch collet, the WSOOX three-piece set covers tongue, groove and panel on a proper half-inch shank and will carry a first kitchen run without any drama.

For shaker doors specifically, the Yonico two-piece shaker pair is the strongest balance of quality and setup simplicity. For solid hardwood doors, the Amana MD502 earns its cost through the backcutter, which is the detail that stops a panel blowing out on the final pass. For a run of twenty or more identical doors where you cannot chase variation by hand, the Freud adjustable set and the Bosch close-tolerance set are the two to look at.

Whichever you choose, buy a two-piece or three-piece matched door set rather than a forty-piece general kit, make a setup block before your first cut, and test every bit on scrap. That preparation is worth more than any extra bit in the case. This is the best router bit set for cabinet making shortlist as of 2026: check the current listing for each set and pick the one whose door family matches the cabinets you are actually building.
