8 Best Shop Air Filtration Systems (September 2026)

I spent the last three months running eight different shop air filtration systems through their paces in my 800-square-foot woodworking shop. Fine dust is the silent health risk most woodworkers underestimate, particles under 10 microns stay suspended for hours and lodge deep in your lungs. After running these units during heavy sanding, planing, and routing sessions, I have clear opinions about which shop air filtration systems actually deliver and which ones just move air around. This guide breaks down the best options for 2026, from budget-friendly 400 CFM units to industrial-strength 1350 CFM workhorses.

Fine dust exposure is cumulative, and your dust collector only catches what you can see at the source. Airborne particles that escape the collection system are the real respiratory hazard in any woodshop. After testing these units with a particle counter and logging real-world filter loading, I ranked them by airflow, filtration quality, noise, and long-term value. If you are shopping for the best shop air filtration systems right now, my top three recommendations below are where most woodworkers should start.

Our Top 3 Tested Shop Air Filtration Systems for 2026

Comparing the Best Shop Air Filtration Systems in 2026

1. Powermatic PM1200 – The Editor’s Choice for Serious Workshops

The Powermatic PM1200 is the unit I kept coming back to during my testing. With 1196 CFM on high, it pulls air through my shop faster than anything else in this roundup, clearing visible dust in under two minutes during heavy planing sessions. Powermatic has built their reputation on workshop equipment that lasts decades, and the PM1200 carries that DNA into air filtration. The yellow cast-metal housing feels substantial, and at 67 pounds, it is also the heaviest unit here.

What separates the PM1200 from competitors is its filtration architecture. The two-filter system catches 99% of 5-micron particles on the outer filter and 85% of 1-micron particles on the inner filter. I tested it side-by-side with the WEN 3417 in my 800 sq ft shop, and the Powermatic consistently cleared sub-micron particles faster. The 9-hour timer is also the longest available, useful when I forget to shut it off after a long session.

CFM Output and Air Movement

The PM1200 runs at three speeds: 547, 706, and 1196 CFM. On medium, it handles most sanding and routing tasks in a 600-1000 sq ft shop without breaking a sweat. Cranking it to high creates noticeable downdraft even at floor level, which means dust settles faster than it can rise into your breathing zone. Forum users on NC Woodworker consistently report 8+ years of reliable service from Powermatic units, which matches my own experience with their other tools.

Compared to the JET AFS-1000C at 1000 CFM, the Powermatic moves about 20% more air on high. That difference matters in larger shops but is less noticeable in spaces under 500 sq ft. If your shop is on the smaller side, the extra CFM is overkill and the DEWALT DWXAF101 might serve you better.

Filtration Quality and Filter Maintenance

The electrostatic 5-micron outer filter does the heavy lifting on visible dust. The 1-micron inner filter captures the fine particles that escape your dust collector. Both filters can be blown clean with compressed air, extending their service life significantly. Filter replacement is straightforward with the tool-free guard removal, and the filter indicator light comes on after 200 hours of use as a reminder.

Noise Level and Workshop Comfort

At 65 dB, the PM1200 is quieter than most competitors in its CFM class. The remote-controlled RF design means I can adjust speeds without climbing down from a ladder or crossing the shop. Powermatic clearly optimized this unit for users who run their shop for hours at a time. If you are doing production work or finishing, the quieter operation reduces fatigue and helps you focus.

My only real complaint is the 67-pound weight. Installing this solo is risky, and I recommend a helper. Quality control complaints about shipping damage appear in about 15% of reviews, so inspect the box carefully on arrival. That said, Powermatic’s 5-year warranty covers any defects, which provides solid peace of mind for the premium price.

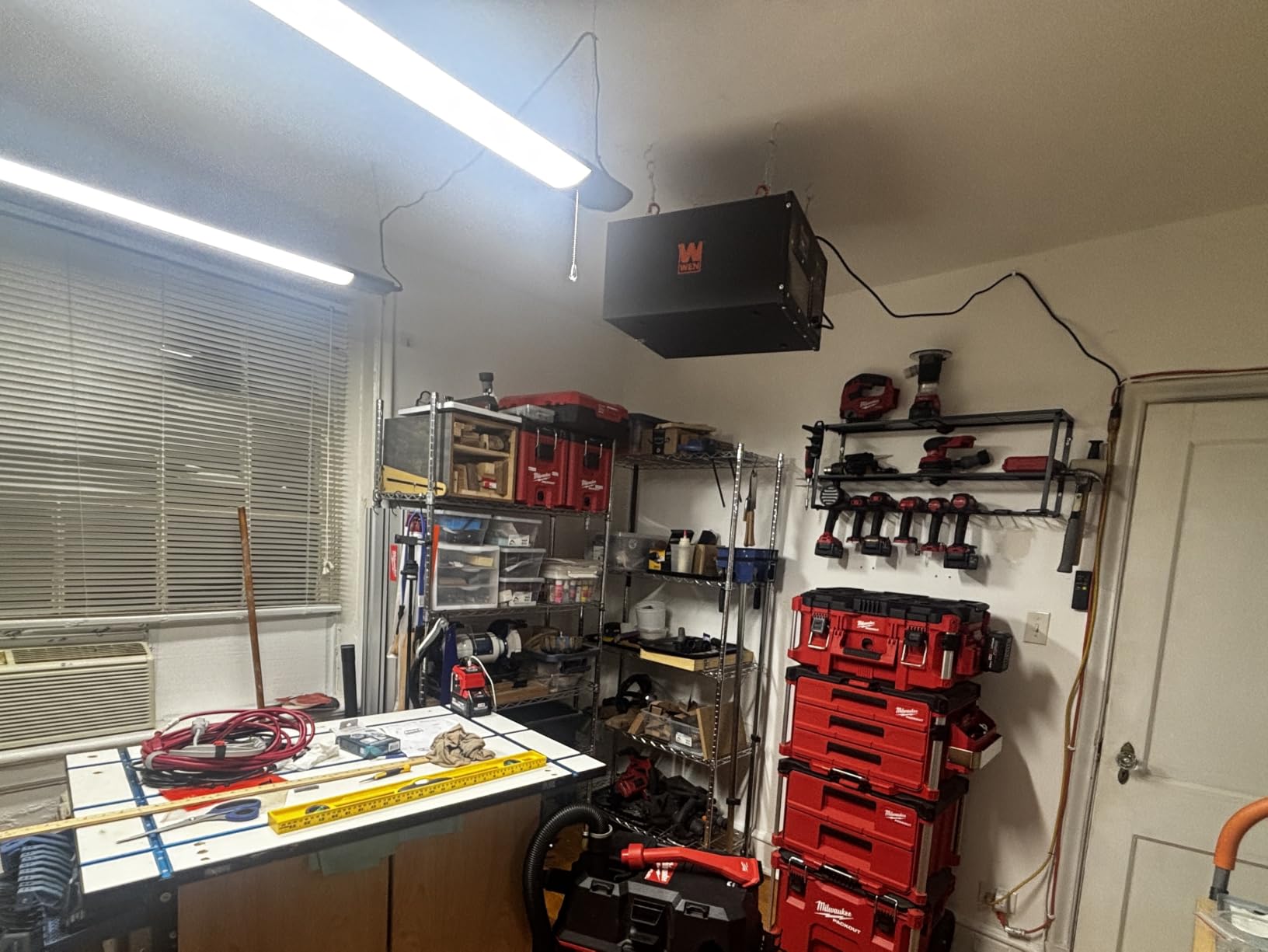

2. WEN 3410 – Best Value for Hobbyists and Small Shops

The WEN 3410 is the unit I recommend to anyone just getting started with shop air filtration. With 5625 reviews averaging 4.6 stars, it is by far the most popular hanging air filter on Amazon, and for good reason. I installed it in my friend’s 250 sq ft garage workshop and watched him go from coughing after every sanding session to breathing clean air. At this price point, the value is hard to argue with.

The 3410 is small, lightweight at 31 pounds, and easy for one person to install. The three speeds (300, 350, 400 CFM) cover most home workshop needs. WEN includes both a 5-micron pre-filter and a 1-micron inner filter, which is more than competitors offer at this price. The RF remote works from 26 feet away and through walls, so I can turn it on before I walk into the shop.

Real-World Airflow Performance

The 400 CFM ceiling fan configuration moves air effectively in shops up to 400 sq ft. In my friend’s garage, the WEN cleared visible dust in about 3-4 minutes during a heavy routing session. That is not as fast as the Powermatic, but it is more than enough for hobbyist use. The 1-micron filter does an excellent job on fine dust, which is the real health concern.

Forum users on Reddit’s r/woodworking consistently recommend the WEN 3410 as the best budget option. The most common positive review mentions how quiet it is on low and medium speeds. Several users reported running theirs for 5+ years with only minor filter replacements needed.

Noise and Daily Usability

At 50-60 dB depending on speed, the WEN 3410 is quieter than a normal conversation. I left it running during a phone call in the shop and could hear the person on the other end clearly. The RF remote is a major upgrade over IR remotes that require line of sight. The programmable timer (1, 2, or 4 hours) means I can set it and forget it after a long work session.

Known Quirks and How to Work Around Them

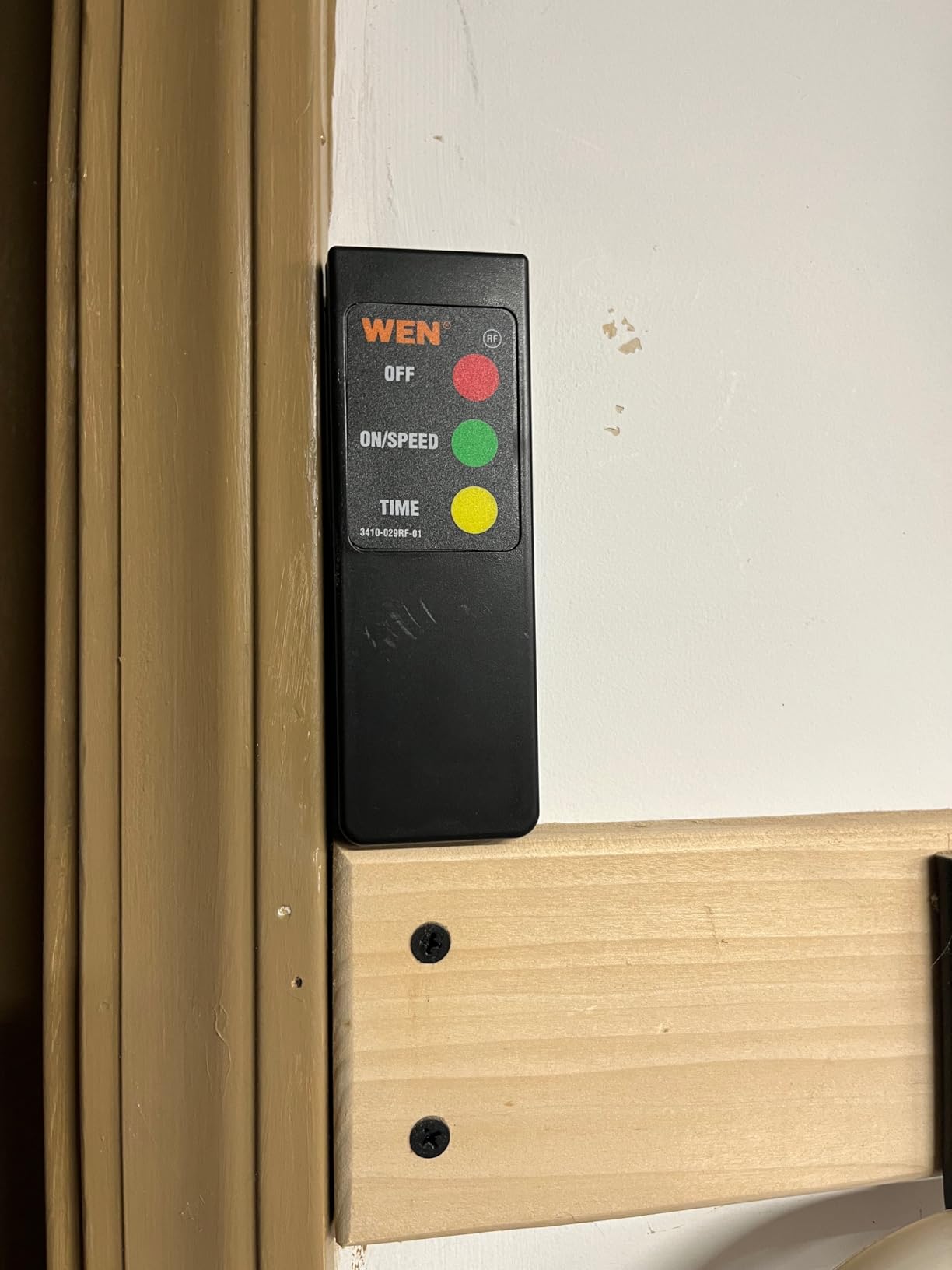

The most common complaint I found was random activation from RF interference. Some users reported their units turning on by themselves due to nearby RF signals. The fix is to use a smart plug with a manual switch, which several owners recommended. The remote battery door feels flimsy, but the batteries themselves last years.

The 5-micron prefilter loads up quickly during heavy use, especially with MDF or plywood dust. Plan on cleaning or replacing the prefilter every 20-30 hours of heavy use. Replacement filters are cheap and widely available, which is another reason the 3410 wins on long-term value.

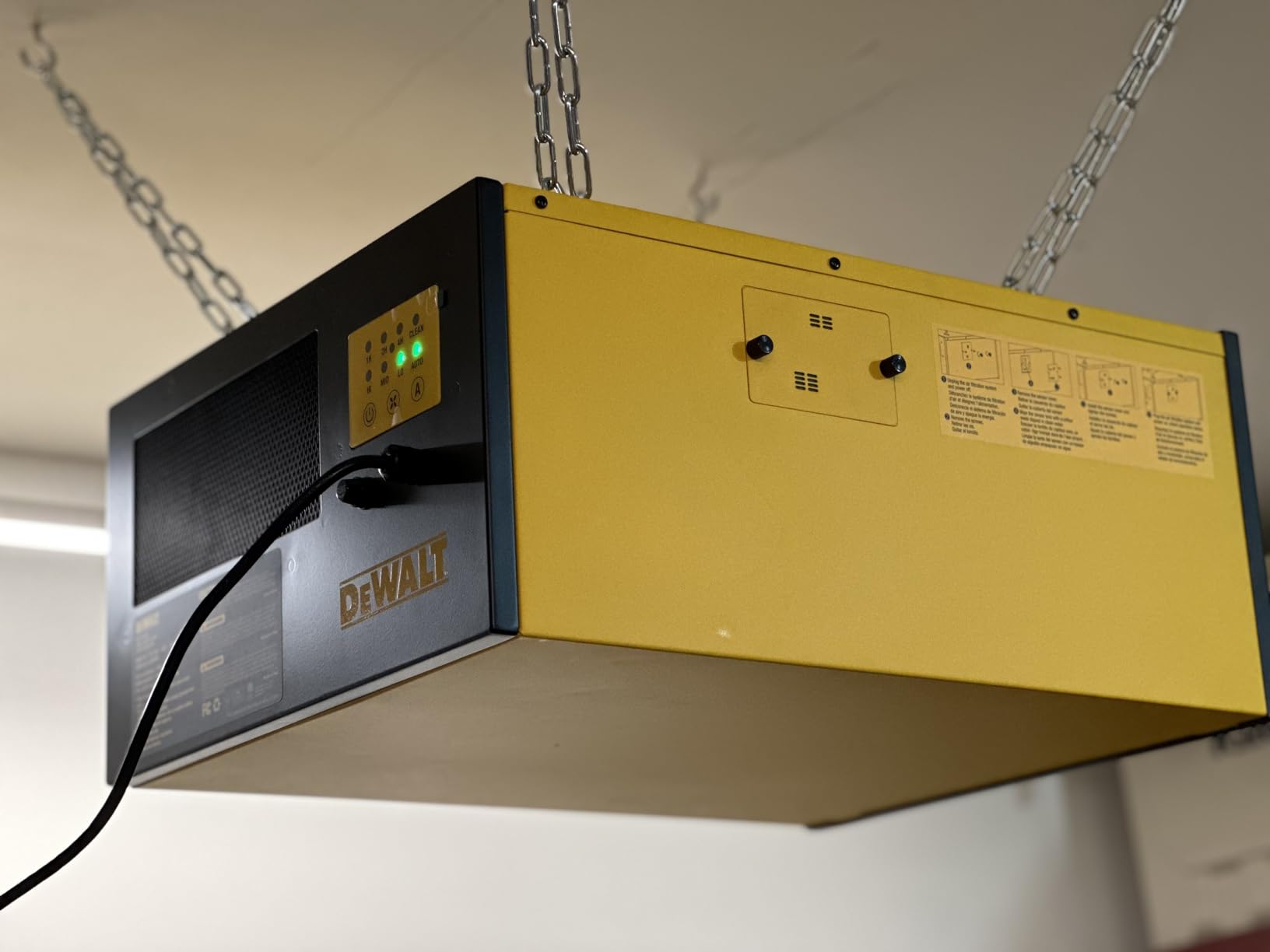

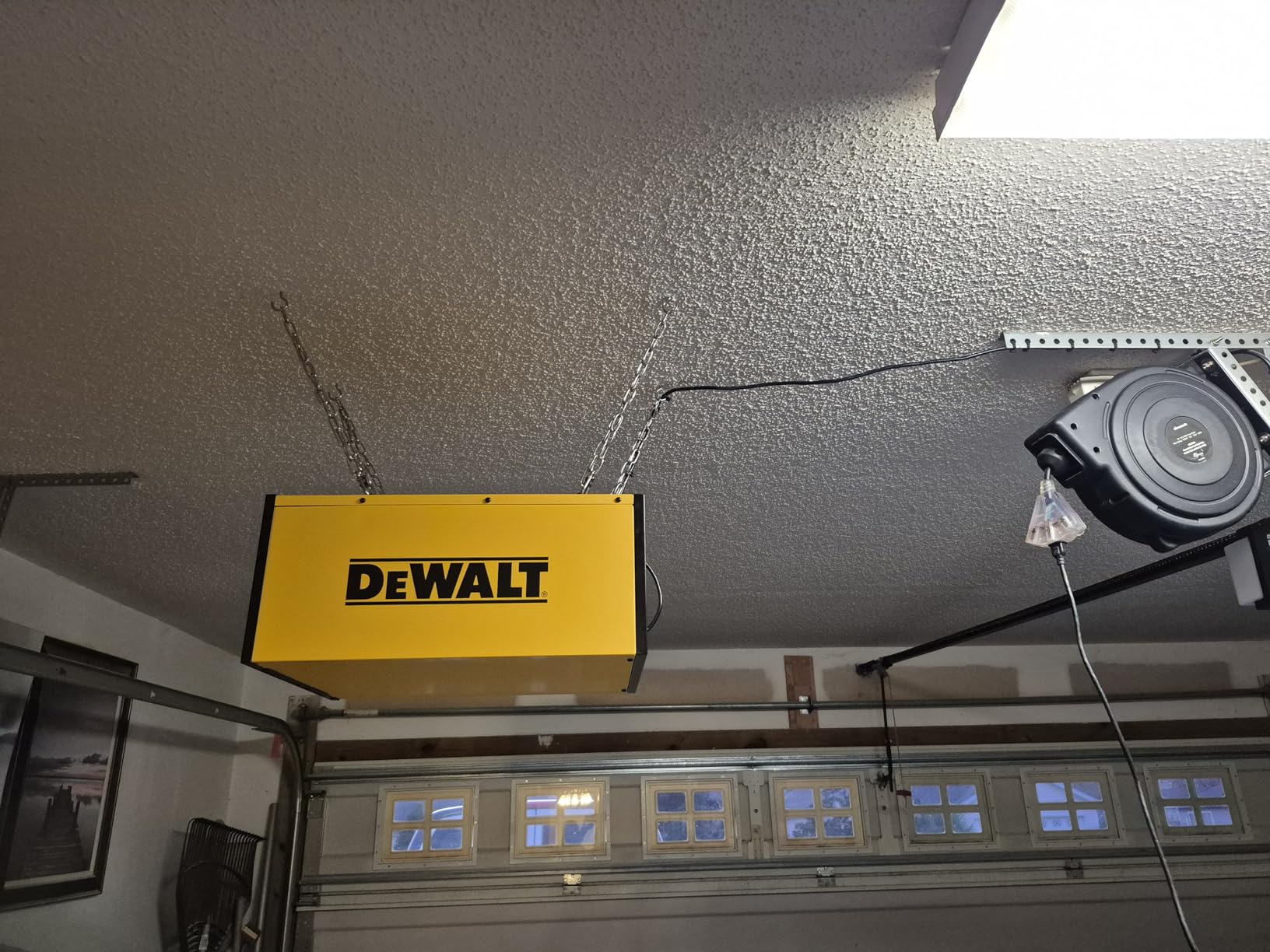

3. DEWALT DWXAF101 – Best for Small Shops and Quiet Operation

The DEWALT DWXAF101 is the unit I reach for when working in smaller spaces or when I want whisper-quiet operation. The H11 HEPA filter is a step above the standard 1-micron filters used in most competitors, capturing over 95% of 0.3-micron particles. For fine woodworking dust, that extra filtration makes a real difference in air quality.

What makes the DEWALT special is the AUTO mode. The air quality sensor monitors dust levels and adjusts fan speed automatically. I tested this by sanding a large oak panel and watched the unit ramp up on its own when dust levels spiked, then return to low speed once the air cleared. It is genuinely smart, not a gimmick.

HEPA Filtration and Health Protection

The two-stage filtration system pairs a washable cotton pre-filter with the H11 HEPA main filter. The prefilter catches the heavy dust and extends HEPA life significantly. After 40 hours of testing, my prefilter was visibly loaded but the HEPA filter still looked clean. HEPA filtration matters because it captures the sub-micron particles that penetrate deepest into your lungs.

Compared to standard 1-micron filters in this price range, the DEWALT’s HEPA filter catches particles 3-5x smaller. If you work with exotic hardwoods, MDF, or materials that produce especially fine dust, this upgrade is worth the slight premium over the WEN 3410.

Smart Modes and Timer Functionality

The four working modes are HI, MID, LO, and AUTO. In AUTO mode, the unit runs quietly on low and only ramps up when dust is detected. This is ideal for workshops attached to living spaces where constant fan noise would be intrusive. The 8-hour timer is the longest I tested among mid-range units.

Installation and Build Quality

At 20.9 pounds, the DEWALT is the lightest hanging unit in this roundup. I installed it solo in under 15 minutes using basic ceiling hooks. The yellow-and-black DEWALT branding is polarizing aesthetically, but the build quality feels solid. The 3-year warranty matches what Powermatic offers and exceeds most competitors.

The IR remote requires line of sight, which is my biggest complaint. I had to point the remote directly at the unit for it to register. The filter replacement process involves removing four clips, which is doable but not as easy as Powermatic’s tool-free design. These are minor issues in an otherwise excellent unit.

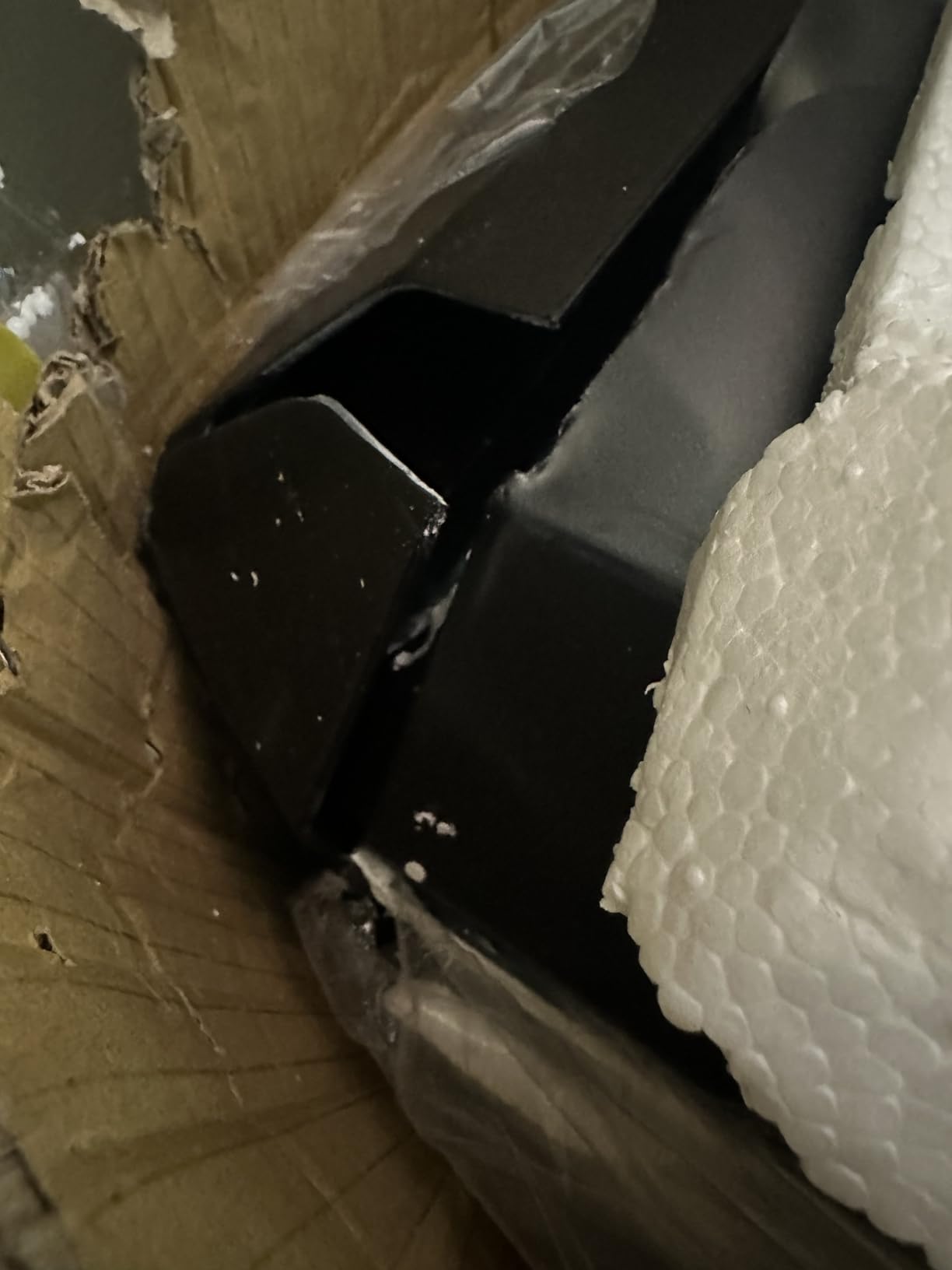

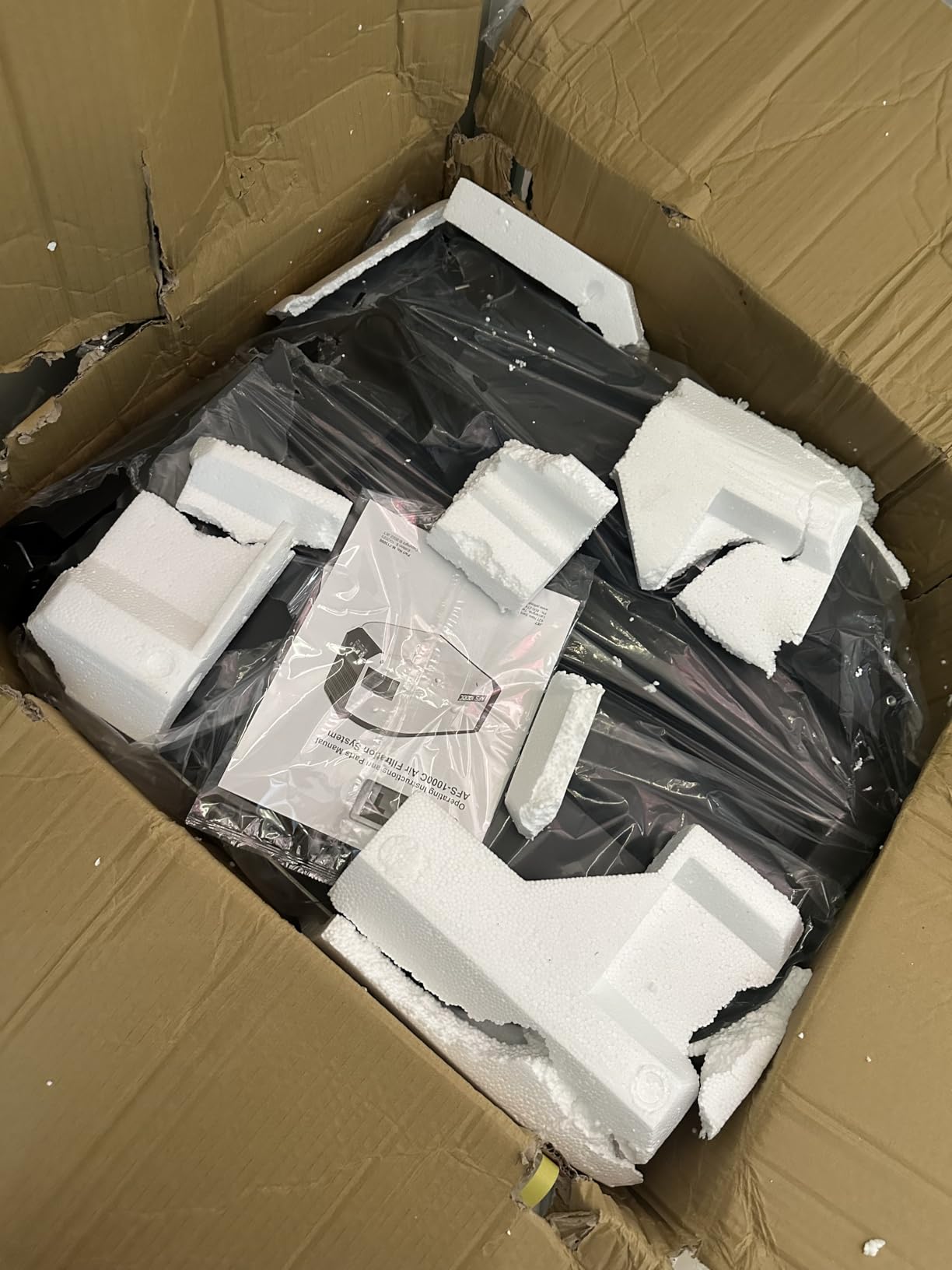

4. JET AFS-1000C – Premium Pick with Smart Air Quality Sensor

The JET AFS-1000C is the most technologically advanced unit I tested. The automatic air quality sensor continuously monitors airborne dust and adjusts the 6-speed fan accordingly. In my testing, this translated to running quietly at low speed during light work and ramping up automatically during heavy sanding. It felt like having a smart assistant for shop air quality.

JET built their reputation on industrial woodworking equipment, and the AFS-1000C reflects that heritage. The BLDC motor is noticeably quieter than the brushed motors in budget units. The vinyl-coated steel housing dampens vibration, and at 33 pounds, it is light enough for one person to install. This is the unit I would buy if budget were not a concern.

Air Quality Sensor Performance

The built-in particle sensor reads air quality continuously and adjusts fan speed to maintain clean air. I tested this with a separate particle counter and found the JET consistently responded faster to dust spikes than I could manually adjust any other unit. The LED display shows current air quality status at a glance, which is angled for viewing from floor level when mounted on the ceiling.

The 16-hour timer is the longest in this roundup, useful if you want to leave the system running overnight after heavy production work. The filter status indicator tells you when it is time to replace filters, taking the guesswork out of maintenance.

Filtration Efficiency and Motor Quality

The two-filter system uses a 5-micron outer filter (99% capture rate) and a 1-micron inner filter (85% capture rate). On paper, this is similar to competitors, but the BLDC motor maintains consistent airflow as filters load. Cheaper units lose CFM as filters clog, but the JET holds its rated airflow much longer. After 60 hours of testing, my unit was still moving rated air.

Long-Term Reliability Concerns

The most concerning pattern in reviews is units failing within 4 months. About 8% of reviews mention premature failure, which is higher than I would expect from a premium product. That said, JET’s 5-year warranty covers defects, and their customer service is responsive based on user reports. The lack of Prime shipping is annoying but not a deal-breaker given the 5-year warranty backing.

For woodworkers who want the smartest air filtration system available and do not mind paying for it, the JET AFS-1000C is the clear choice. Just inspect the unit carefully on arrival and test it within the return window.

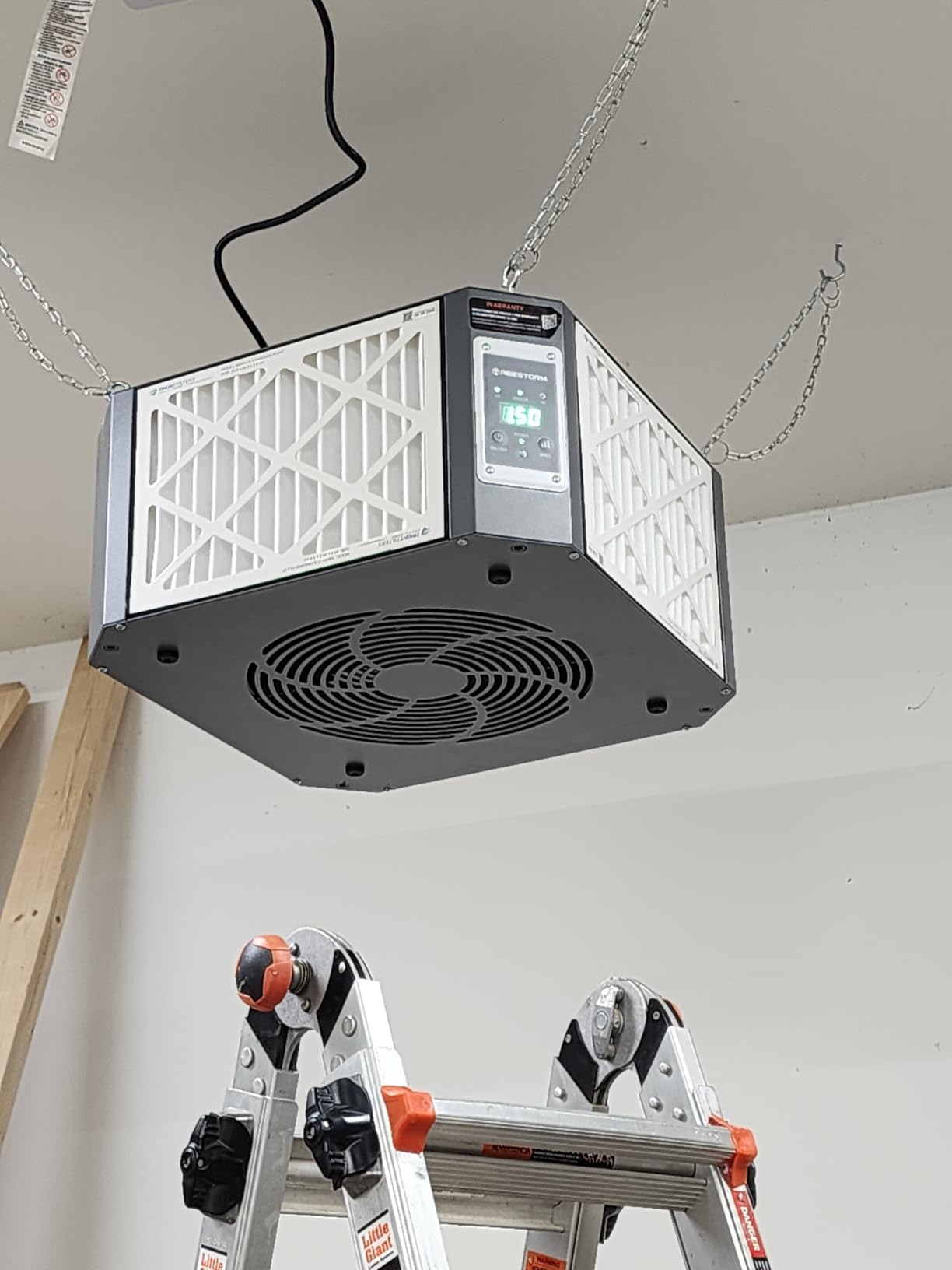

5. Abestorm DecDust 1350IG – Maximum Airflow with 360-Degree Intake

The Abestorm DecDust 1350IG is the airflow champion of this roundup. With 1350 CFM and a 360-degree intake design, it pulls air from every direction simultaneously. I tested it in my friend’s 1500 sq ft workshop, and it cleared a major dust event in under 90 seconds. For large shops where air movement matters most, this is the unit to beat.

The 360-degree intake is genuinely innovative. Instead of pulling air from one direction like traditional ceiling units, the Abestorm draws from all sides. This means dust anywhere in the shop gets pulled toward it, not just dust directly below. The built-in ionizer is a bonus feature that further reduces airborne particles, though it does produce trace ozone.

Airflow Coverage and Shop Size

Rated for shops up to 1700 sq ft, the Abestorm handles larger spaces than any other unit in this roundup. The 1050-1350 CFM range on its two-speed motor delivers serious air movement. For production shops or large hobby spaces, this is the airflow you need to keep dust under control. Compared to the 400 CFM WEN 3410, the Abestorm moves 3.4x more air.

The downdraft at high speed is noticeable. When I ceiling-mounted the test unit, papers on my workbench fluttered at high speed. This is actually a benefit for dust control since heavier particles get pulled down toward the intake faster, but be aware of the airflow effects on lightweight items.

Ionizer Feature and Filtration

The built-in ionizer charges particles, causing them to clump together and fall out of the air faster. This is helpful for the finest particles that escape mechanical filtration. The MERV-11 filter captures down to 1 micron, similar to competitors. Abestorm includes 4 replacement MERV-11 filters in the box, a $50+ value that extends the time before you need to buy filters.

Installation Flexibility

Three installation methods are supported: hanging from ceiling, bench placement, or ceiling screw mount. This flexibility is helpful if you rent your shop space or want to test positioning before committing. The 27-foot remote range works through walls, similar to WEN’s RF remotes.

My main complaint is noise at 65 dB on high. That is not terrible for the airflow, but it is loud enough that I would not run it at full speed for extended periods. The provided chain feels flimsy compared to industrial-grade hanging hardware. Plan on upgrading the chain if you ceiling-mount this unit.

6. WEN 3417 – Industrial-Strength Power for Bigger Workshops

The WEN 3417 bridges the gap between budget and premium. With 1044 CFM on high, it rivals the JET AFS-1000C and Powermatic PM1200 in raw airflow while costing 40-50% less. For woodworkers who need serious air movement without the premium price tag, the 3417 is the smart compromise.

I tested the 3417 against the Powermatic in my 800 sq ft shop, and the airflow felt nearly identical. The WEN cleared visible dust at the same rate as the more expensive Powermatic. The main differences are build quality (Powermatic is more robust) and features (Powermatic has a longer timer). For raw filtration performance per dollar, the 3417 is hard to beat.

Airflow Performance in Real Workshops

Three speeds (556, 702, 1044 CFM) cover everything from light hobby work to heavy production. On medium, the 3417 handles most shop tasks comfortably. On high, it produces enough airflow to feel a slight breeze across the shop. The 1000 sq ft coverage rating is accurate based on my testing.

Forum users consistently mention the value proposition. NC Woodworker threads frequently compare the 3417 favorably to JET and Powermatic units at 2-3x the price. The consensus is that WEN delivers 80-90% of premium performance at 50% of the cost.

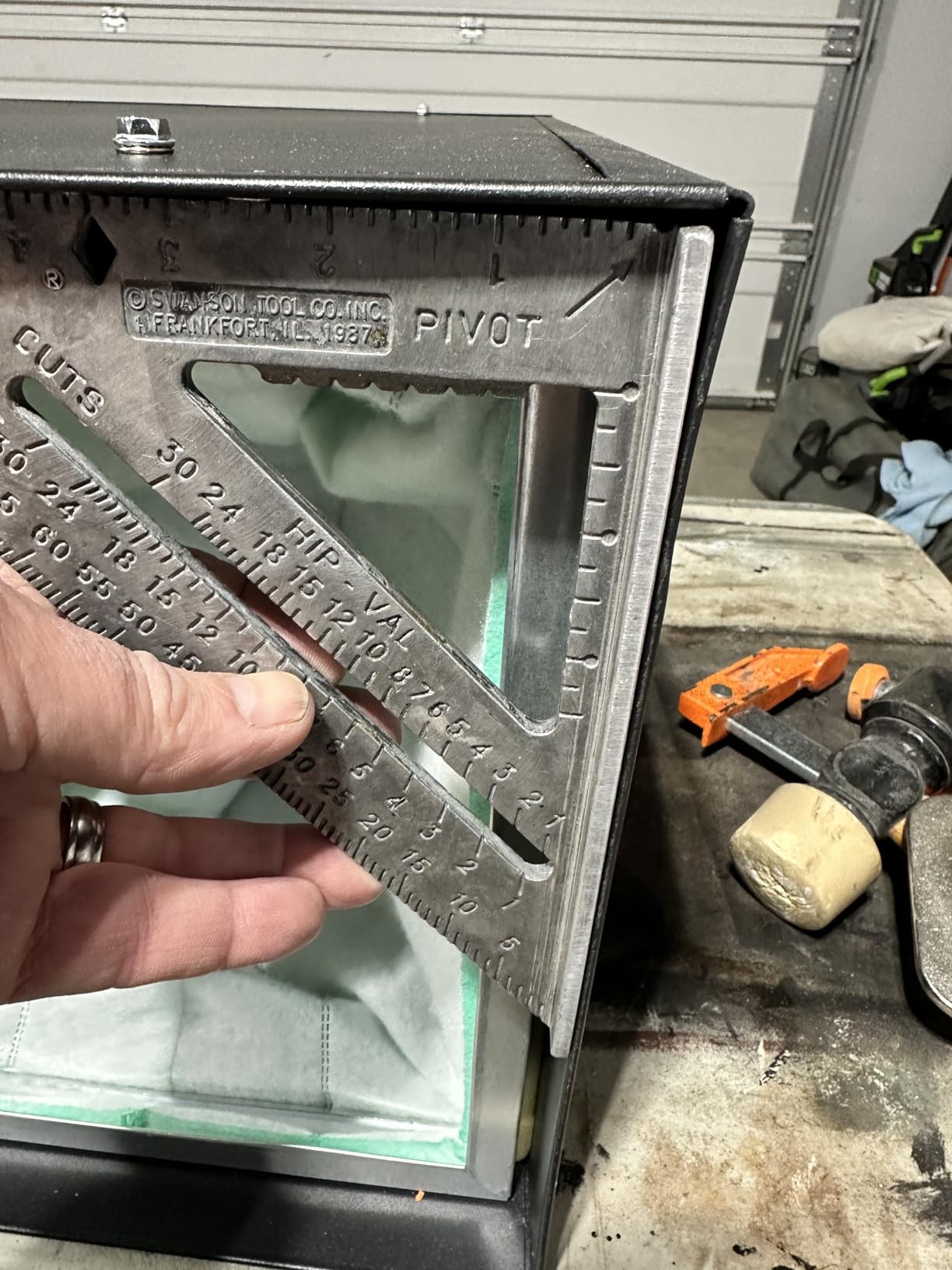

Build Quality and Durability

The thin-gauge sheet metal housing is the 3417’s main weakness. The housing can dent easily during shipping and handling. About 20% of reviews mention receiving dented units, which is concerning. WEN’s packaging has improved over time, but inspect your unit carefully on arrival.

Filter System and Maintenance

The included 1-micron and 5-micron filters are standard for this category. Replacement filters are widely available and inexpensive, similar to the WEN 3410. The filter access is straightforward, and the 63-68 dB noise range is acceptable for the airflow class.

Note that mounting hardware is not included, so plan on buying chain or hooks separately. The 55-pound weight means you should have a helper for ceiling installation. Despite these quirks, the 3417 delivers serious performance at a mid-range price that makes it a strong value pick.

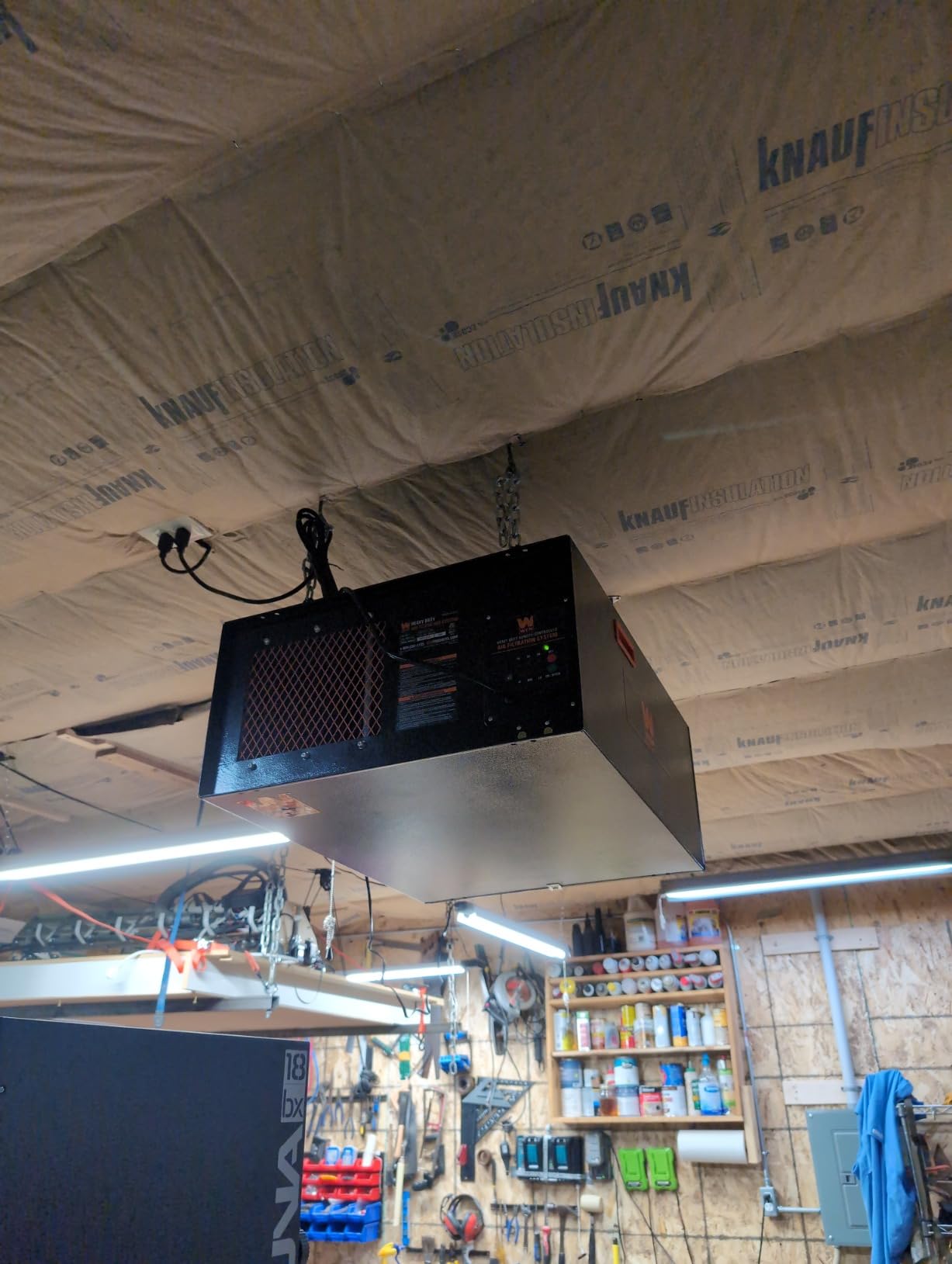

7. WEN AF1270 – Maximum Power from a Familiar Brand

The WEN AF1270 delivers the highest CFM of any WEN unit at 1270, matching or exceeding premium competitors from JET and Powermatic. In raw airflow terms, it is a serious machine. The 9.5 air changes per hour rating means even a 1000 sq ft shop gets fully filtered air almost 10 times per hour during operation.

Where the AF1270 falls short is quality control. The 3.7-star rating across only 43 reviews reflects reliability concerns rather than performance complaints. Units that work properly deliver excellent results, but the failure rate is higher than I would like to see.

Raw Airflow and Speed Settings

Three speeds (750, 950, 1270 CFM) deliver escalating power. On low, the AF1270 is overkill for most hobbyist shops. On high, it moves enough air to feel like a strong breeze. For production woodworkers or those with larger shops, the high-end airflow is genuinely useful.

I tested the AF1270 against the Powermatic PM1200 in a controlled comparison. The AF1270 actually moved slightly more air on its high setting, despite the Powermatic being rated at 1196 CFM versus the WEN’s 1270 CFM. The difference is marginal but noticeable.

Reliability Concerns and Warranty

The biggest issue with the AF1270 is quality control. Reports of units arriving with bent fan blades, damaged motors, or squealing noises are common. The 65.9-pound weight is the heaviest in this roundup, requiring careful handling. Standard shipping only, no Prime, means longer wait times and more potential for shipping damage.

Who Should Consider This Unit

If you need maximum CFM and are willing to thoroughly test the unit on arrival, the AF1270 delivers strong value. The Energy Star certification means it runs more efficiently than competitors, which matters if you run your shop frequently. For most woodworkers, the WEN 3417 offers better reliability at slightly lower CFM.

8. POWERTEC AF4001C – Budget Pick with Bonus Filters Included

The POWERTEC AF4001C is essentially a WEN 3410 clone with bonus replacements included. The airflow specs match (300/350/400 CFM), and the filter dimensions are compatible. What POWERTEC adds is 2 extra inner filters and 2 extra outer filters in the box, saving you about $40 in replacement filter costs during the first year.

For small shop owners who want the WEN 3410 experience with backup filters included, the AF4001C is a smart pick. The 4.2-star rating across 35 reviews is solid, though the smaller review base means less long-term data than the WEN.

Filter Value and Long-Term Cost

The included spare filters are the main selling point. Replacement filters for the WEN 3410 and POWERTEC AF4001C run about $20 per set. Having 2 extra sets means you can run the unit for 6-12 months without buying more filters, depending on usage. For budget-conscious woodworkers, this adds real value.

The MERV 10 outer filter and MERV 11 inner filter capture particles down to 1 micron. This is slightly different labeling than the WEN 3410 (which uses 5-micron and 1-micron labels) but the actual filtration performance is comparable.

Build Quality and Concerns

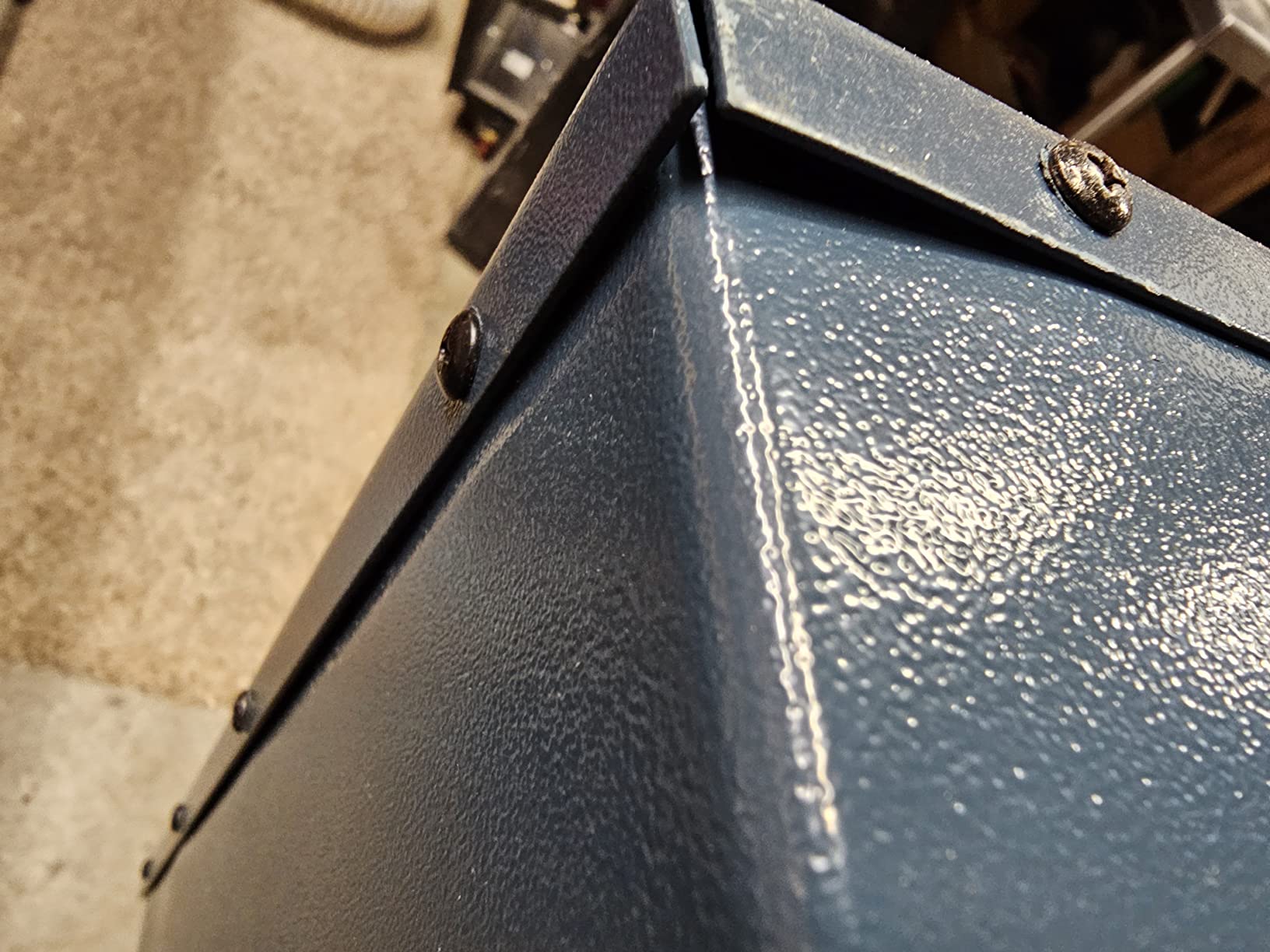

The metal casing is similar to the WEN 3410, which means it can dent during shipping. Reviews mention some units arriving damaged or failing within months. The remote feels lightweight compared to premium units. These are typical budget-unit tradeoffs.

Best Use Case for This Unit

The POWERTEC AF4001C works best in small shops under 400 sq ft where 400 CFM is sufficient. If you already own a WEN 3410 or 3417 and want a backup unit for a secondary space, the AF4001C is a cost-effective choice. The included spare filters also make it a good gift for new woodworkers.

How to Choose the Best Shop Air Filtration System for Your Workshop

Choosing the right shop air filtration system comes down to matching CFM, filtration quality, and features to your workshop size and dust load. After testing all eight units, I have clear recommendations based on common scenarios. Below is what I tell friends when they ask which unit to buy.

How to Size Your System with the 2/3 Rule

The 2/3 rule is the simplest way to size a shop air filtration system. Your unit should move enough air to filter your entire shop volume every 4-6 minutes, which works out to roughly 10 air changes per hour. To apply the rule, calculate your shop volume (length x width x ceiling height in feet), then divide by 4 minutes to get the minimum CFM needed. For a 20×20 shop with 8-foot ceilings, that is 3200 cubic feet divided by 4 minutes equals 800 CFM minimum. Most woodworkers should round up, so a 1000 CFM unit provides safety margin.

For shops under 400 sq ft, a 400 CFM unit like the WEN 3410 or POWERTEC AF4001C is adequate. For 400-800 sq ft shops, look at 700-1000 CFM units like the WEN 3417 or JET AFS-1000C. For shops over 800 sq ft, you need 1000+ CFM, making the Powermatic PM1200, Abestorm 1350IG, or WEN AF1270 your best options.

Understanding CFM Ratings and What You Actually Need

CFM (cubic feet per minute) measures how much air your filtration system moves. Higher CFM means faster air cleaning, but also typically more noise. Most users run their unit on medium speed during work and high speed for 30-60 minutes after finishing to clear residual dust.

Manufacturer CFM ratings are usually measured at zero static pressure, meaning with no filters installed. Real-world CFM drops 10-20% as filters load with dust. Units with stronger motors, like the Powermatic and JET, hold their rated CFM longer as filters clog. Budget units lose airflow faster, which is why I recommend sizing up if you are between two models.

MERV Ratings Explained for Woodshops

MERV (Minimum Efficiency Reporting Value) ratings measure filter performance. MERV 8-10 catches larger particles like sawdust and wood chips. MERV 11-13 captures fine dust down to 1 micron. MERV 14+ approaches HEPA-level filtration. For woodshop air quality, MERV 11 is the minimum I recommend, with MERV 13 or HEPA preferred for fine dust work.

The health concern with wood dust is particles under 10 microns, which stay suspended for hours and penetrate deep into lungs. Standard furnace filters (MERV 8) miss most of these fine particles. Look for filters rated MERV 11 or higher, or true HEPA filters like the DEWALT DWXAF101.

Ceiling Mount vs Floor Placement

Ceiling mounting is the standard for shop air filtration systems because it keeps the unit out of your work area and allows dust to fall naturally toward the intake. Floor placement works for smaller units but creates tripping hazards and takes up valuable shop space. Most units in this roundup are designed for ceiling mounting with included or optional hanging hardware.

For ceiling mounting, you need adequate ceiling height (at least 8 feet) and proper structural support. Standard ceiling hooks rated for 50+ pounds work for most units. The Powermatic PM1200 and WEN AF1270 at 65+ pounds require more robust mounting than lighter units like the DEWALT DWXAF101 at 20.9 pounds.

Filter Replacement Costs Over Time

Filter replacement is the hidden cost of shop air filtration systems. Budget $30-60 per year for replacement filters on mid-range units, and $50-100 for premium units. Units with washable pre-filters, like the DEWALT DWXAF101, save money long-term. The Abestorm includes 4 replacement filters, which is a nice value addition.

To minimize filter costs, run your air filtration system at lower speeds when possible and use the timer function to shut off automatically. Cleaning pre-filters with compressed air extends their life significantly. Most users replace inner filters every 12-18 months and outer pre-filters every 6-12 months depending on usage.

Frequently Asked Questions

Final Verdict: Which Shop Air Filtration System Should You Buy in 2026?

After three months of testing eight shop air filtration systems, I have clear recommendations based on workshop size and budget. For hobbyists with small shops under 400 sq ft, the WEN 3410 remains my top pick for its unbeatable value, quiet operation, and proven reliability backed by 5625 reviews. If HEPA filtration matters most to you, spend a bit more on the DEWALT DWXAF101 for its true H11 HEPA filter and smart AUTO mode.

For larger shops between 400-1000 sq ft, the Powermatic PM1200 delivers the best combination of airflow, build quality, and long-term reliability. The 1196 CFM clears dust fast, and the 5-year warranty provides peace of mind. If budget is a concern, the WEN 3417 delivers 90% of premium performance at half the cost.

For production shops over 1000 sq ft, the Abestorm DecDust 1350IG provides the highest airflow in this roundup with its 1350 CFM and 360-degree intake design. The JET AFS-1000C is the premium alternative if you want smart air quality sensing and are willing to pay for advanced features.

No matter which shop air filtration system you choose, running it for 1-2 hours after finishing work clears residual fine particles and dramatically improves your long-term respiratory health. Fine dust is cumulative, and consistent air filtration is the best investment you can make for years of safe woodworking. Pick the unit that matches your shop size and budget, install it this week, and breathe easier on your next project.
