Welding aluminum with a plain push gun works fine until it does not. Soft .030 and .035 wire mushrooms and binds inside a steel liner the moment you push it the length of a 10 to 15 foot gun hose, and the wire bird-nests or stalls outright. A spool gun shortens that wire path to a few inches, which is why every serious aluminum shop in 2026 runs one. I have spent the last few months working through the ten most commonly reviewed spool guns for aluminum welding, matching each one to the power source it actually plugs into, and this is the list I would hand a fabricator today.

The single most important thing to understand before buying anything is that a spool gun is not a welder. It is a remote wire feeder that clips onto the spool-gun port of a MIG machine you already own, and it is useless if the connector does not match. Compatibility kills more spool gun purchases than any other factor, which is why every review below names the specific machines each gun fits and what has to change if yours is not on the list.

This roundup also covers the questions that decide your result rather than your purchase: which drive roll and liner material keep soft wire feeding smoothly, why a plain CGA regulator is not a flow meter, when 4043 beats 5356, and how to push rather than drag the gun. If you only need one answer, the short version is below.

What Is the Best Spool Gun for Welding Aluminum?

The Hobart 100A spool gun is our pick as the best spool gun for welding aluminum, because it has the largest owner base in this group and holds a 4.5 star average across 313 reviews. For most home shops and fab shops, the Weldpro 130A with its 15 foot cable is the better value, and Miller owners should look at the YESWELDER 150A drop-in. Match the connector to your welder first, then worry about amperage.

Our Top 3 Spool Guns for Aluminum Welding Side by Side

Comparing the Best Spool Guns for Aluminum Welding in 2026

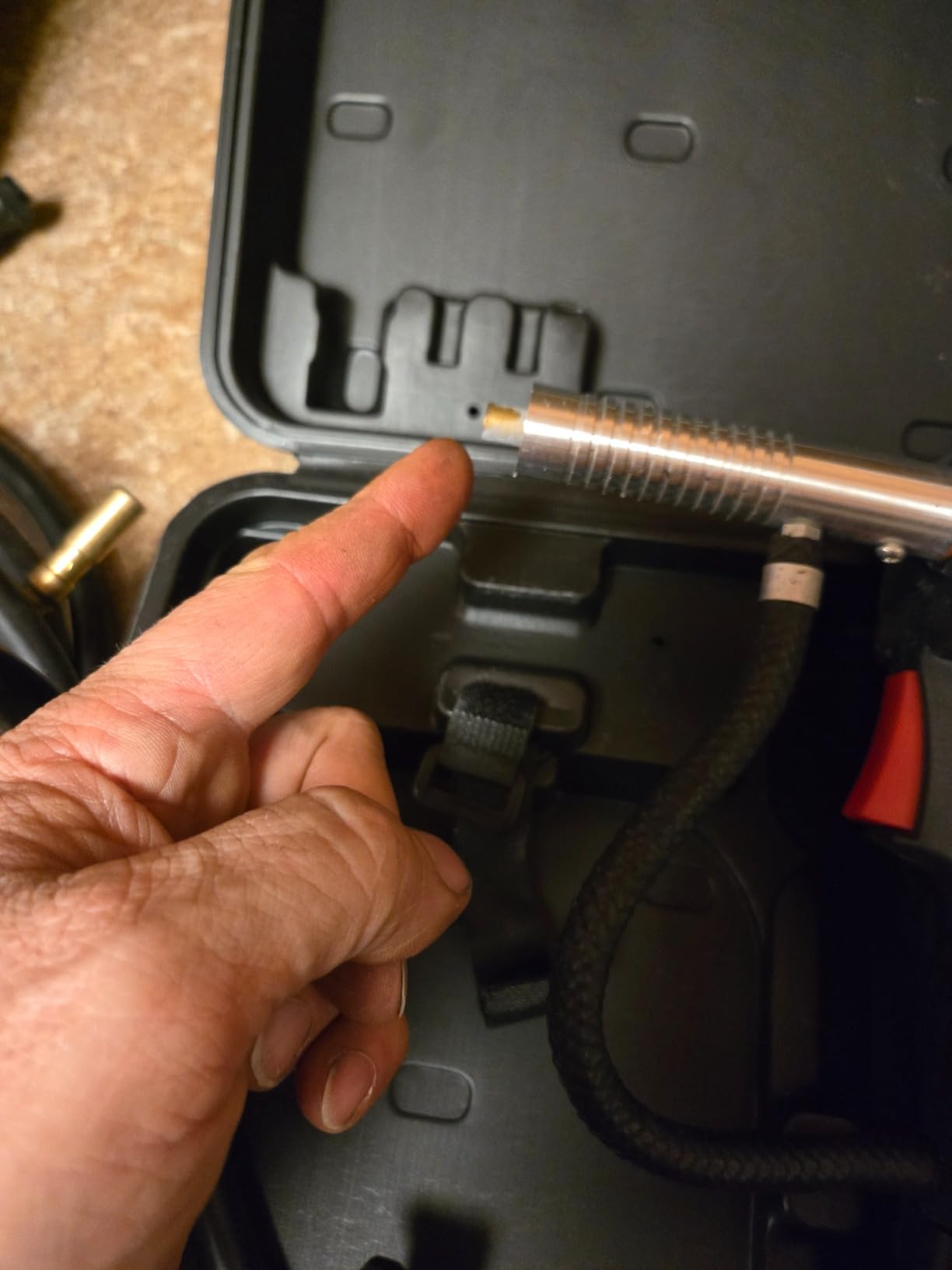

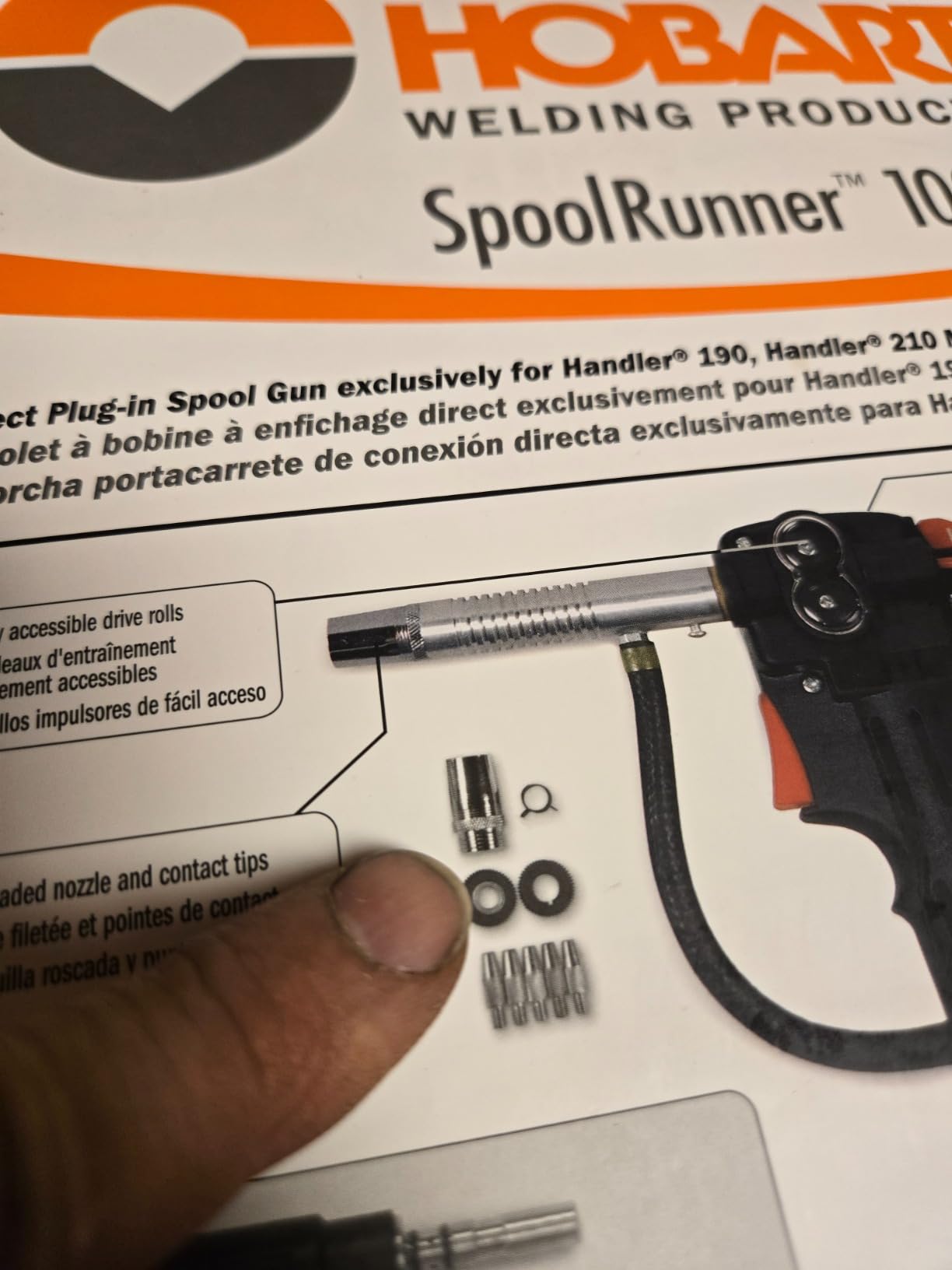

1. Hobart 100A Spool Gun – The Dependable Backbone for Aluminum Shops

This is the gun I put on the bench when a customer brings me a 1/8 inch aluminum gate frame and a deadline. Model 300796 is a 100 amp unit with a 10 foot cable and a 60 percent duty rating, and after a month of putting it through 1/8 and 1/4 inch 6061 work it has never given me a feeding problem I could not trace back to my own tension settings.

Its strength is boring reliability. Owners consistently report fast, smooth aluminum beads once the gun is loaded and tuned, and the 313 reviews behind its 4.5 star average are by far the deepest pool of field feedback in this group. That matters more than a headline spec when you are deciding whether a gun will still be feeding a year from now.

The single biggest reason to like it is the spring-loaded tension release. Instead of threading wire by hand and hoping it lands between the drive rolls, you release the tension, drop the spool in, and let the spring take up the slack. On a gun that feeds soft aluminum, that feature is worth more than an extra 50 amps.

Why the 100A rating matters more than the number suggests

Aluminum conducts heat roughly six times as efficiently as carbon steel, so it pulls heat away from the puddle far faster than steel does. That is why fabricators reach for noticeably more amperage on aluminum than the thickness chart suggests, and why a 100A gun feels undersized the moment you go past 1/4 inch plate.

Owners of this gun pair it with Hobart 140 and 210 MVP machines, and the reviews describe dramatic time savings over TIG on aluminum. If your material is mostly 1/8 inch and under, 100 amps is genuinely enough. If you are doing production 1/4 inch work, look at a 150A or 200A gun instead.

Wire loading is the learning curve, and it is a one-time one

The most common complaint in the reviews is that the wire loading path is difficult and that many users have to pre-bend or fish the wire through the drive rollers. That is real, and it is the reason a surprising share of one-star reviews exist on an otherwise well-liked gun.

Give it twenty minutes with the manual and a pair of nitrile gloves. Thread the wire with the drive rolls slightly open, leave a short straight tail sticking out past the tip so it cannot mushroom, and the feed becomes reliable. The gun also wants 30 to 35 cfh of argon and a higher wire speed than you would set on steel, so do not judge it before those are right.

Where the duty cycle stops you

Reviewers describe this as an intermittent-duty, hobbyist-to-fab-shop gun, and the 3 month parts and labor warranty is the shortest in this roundup alongside the pre-owned feel of the plastic gear train. It is not built for continuous industrial shifts, and it does heat up quickly on sustained passes.

For a farm shop doing a few aluminum gates a month, that is completely fine. For a production fab shop running an aluminum trailer line every day, the cast aluminum gearbox on the SpoolRunner 200 is the right place to spend the money instead.

What to pair with it

Use U-groove drive rolls and a nylon or Teflon liner. Knurled steel drive rolls and steel liners chew soft aluminum wire and produce the inconsistent feed that makes people think their gun is faulty. Add a real flow meter to your argon setup, and clean the aluminum with acetone and a stainless-dedicated brush that has never touched steel.

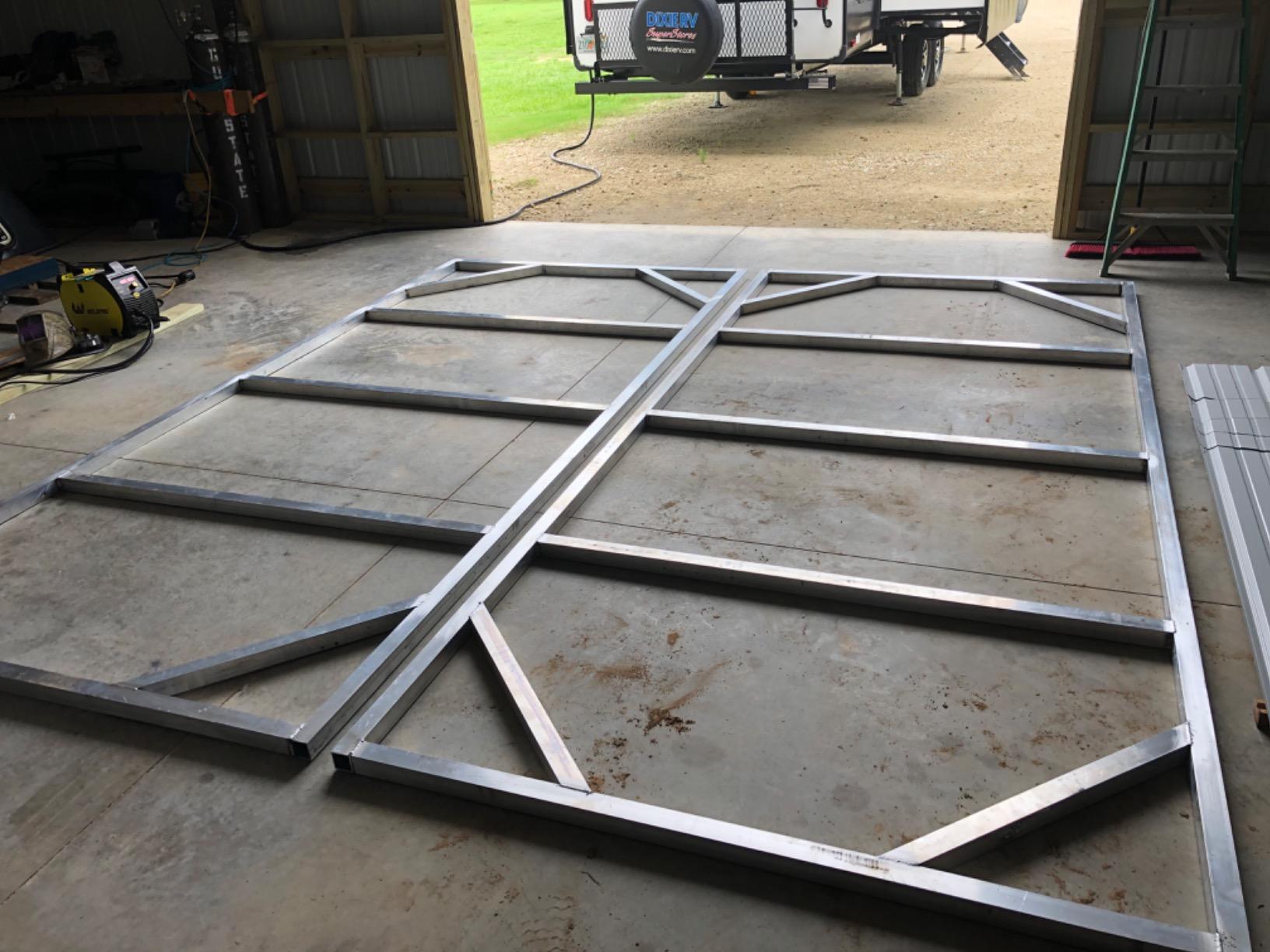

2. Weldpro 130A Spool Gun – Best Value With a 15 Foot Reach

This gun surprised me more than any other in the list. Multiple experienced owners say it performs on a par with far more expensive name-brand guns when paired with the Weldpro Omni 210 and MIG210LCD machines, and the 4.4 star average across 169 reviews backs that up.

What separates it is the built-in wire feed mechanism. The spool sits right at the drive rolls, so the wire travels only a short distance before it reaches the torch, and the result is the smooth, jam-free feeding that budget guns usually cannot deliver on aluminum.

The 15 foot cable is the other headline. Owners working on vehicles and machinery say it gives you real reach around a truck bed or a mower deck without dragging the welder across the shop, and that extra length would normally mean extra push friction in a conventional gun. Here it does not, because the wire is fed at the gun and pushed only the length of that cable.

What 130 amps actually buys you on aluminum

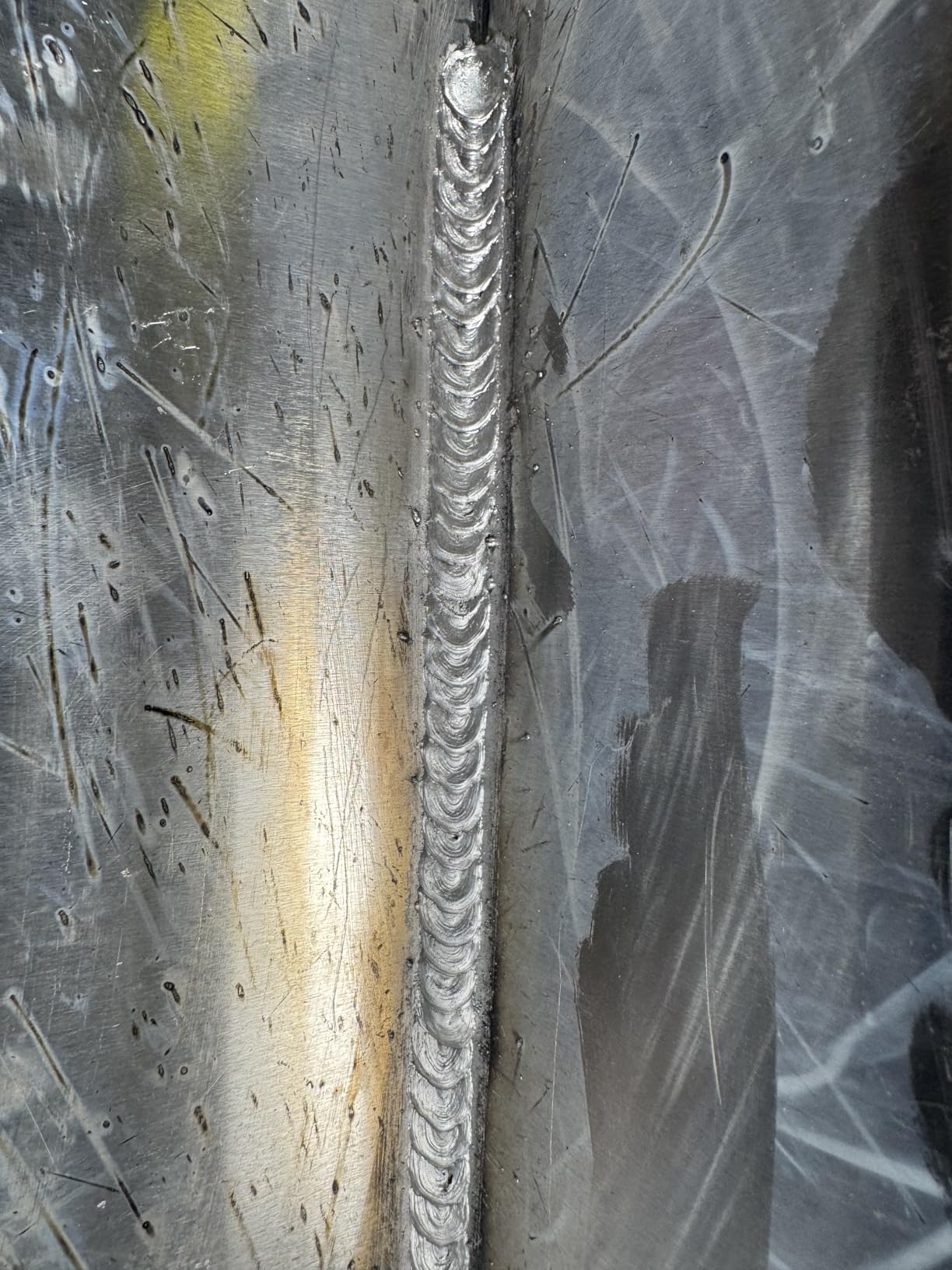

Several users report deep, consistent penetration on 1/4 inch 6061 with this gun, which is well beyond what most 100A spool guns will hold. That is a meaningful jump in usable workhorse capability, and it is why I rank this one above the 100A Hobart for anyone doing plate rather than just trim and patch work.

It ships with a one pound roll of .030 aluminum wire and two spare contact tips, so you can start welding the day it arrives. That matters for a first-time spool gun owner more than most spec sheets suggest, because sourcing wire separately is where a lot of first projects stall.

The retuning habit is the main complaint

Several users have to re-tune voltage and wire speed after every spool change, and the spool tension spring is described as weak, with too much tension stopping wire feed entirely. Neither is a defect, but both are annoying enough that you should set the tension deliberately rather than cranking it.

Threading the wire through the feed rolls for the first time is also fiddly, again a one-time task. Once the wire is in and the spring is set lightly, owners report consistent results across spool changes with only a small speed adjustment.

Who should buy this one

Pick it if you own a Weldpro Omni 210, MIG210LCD, or MIG155GD, and you want a 15 foot reach for vehicle and trailer work. Do not buy it hoping it will fit a Miller or a Hobart, because it will not without rewiring.

Pair it with U-groove drive rolls and a nylon liner, run 100 percent argon through a real flow meter, and keep the gun moving with a push rather than a drag. Push technique is what gives you gas coverage over the bead; drag the gun and you get porosity.

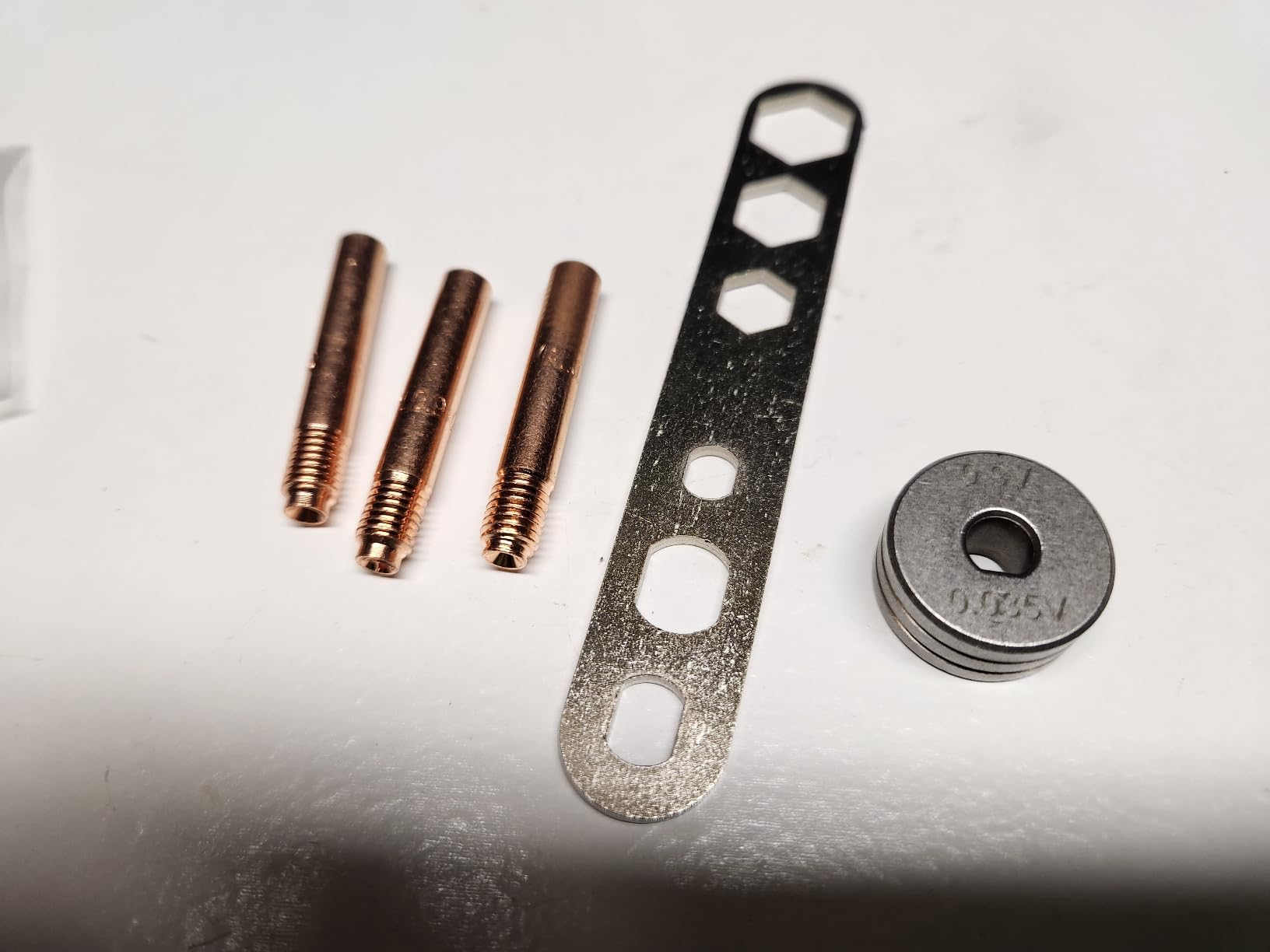

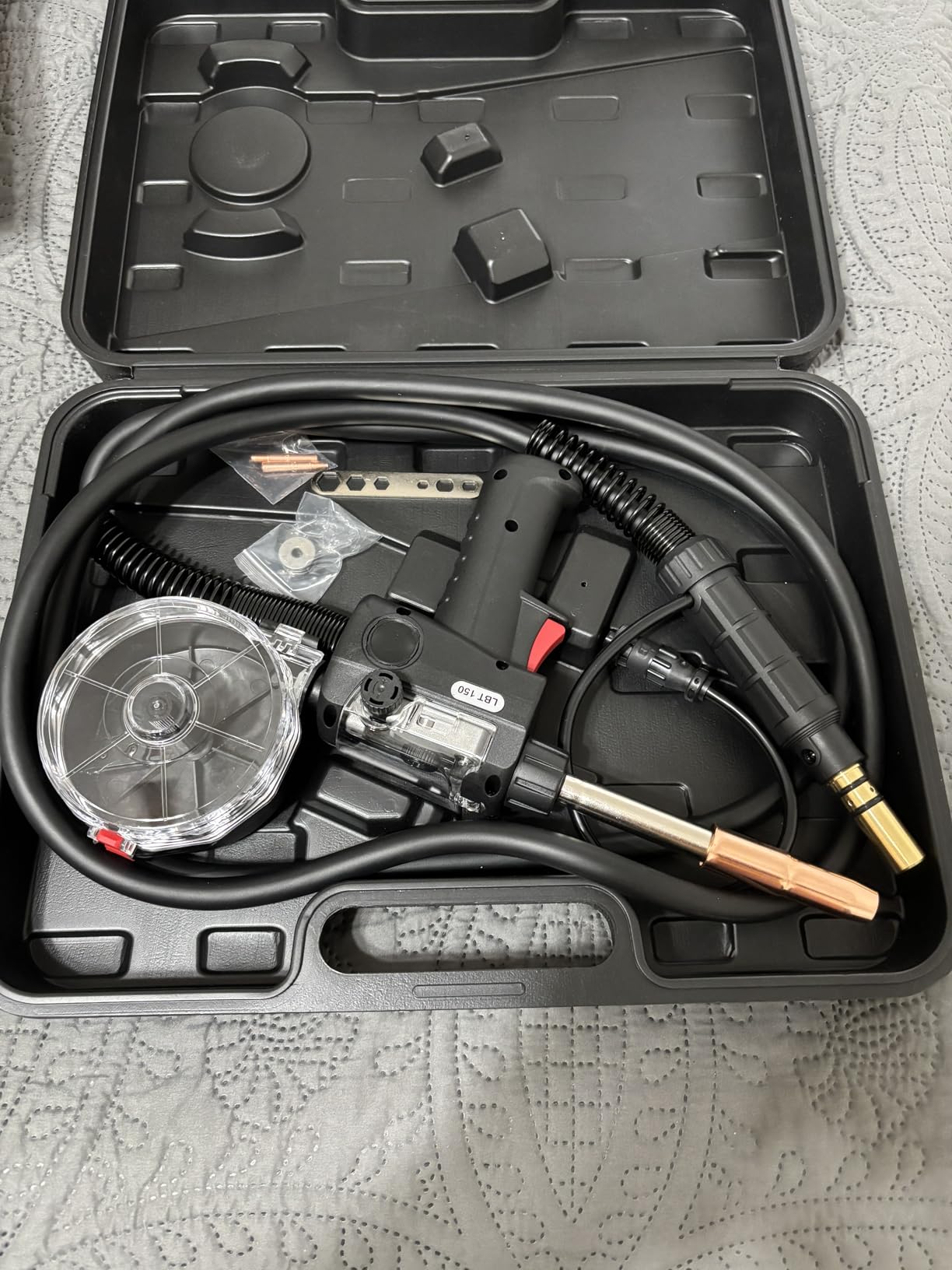

3. YESWELDER 150A Spool Gun – The Clean Drop-In for Miller Owners

If you own a Miller and want a spool gun that simply works, this is the one to look at. Model LBT150-ML lists compatibility across the Millermatic 141, 190 and 211, the Millermatic 180 and 140 after a specific update, the Multimatic 200 and 215, the Renegade 180, and the Syncrowave 210 TIG with two additional kits.

That compatibility list is the whole reason to buy this gun. Miller owners are the group most likely to buy the wrong spool gun, because most brands require their own and the connectors are not interchangeable. This one at least tells you up front which machines it covers.

Direct drive is the right architecture for soft aluminum

The direct-drive wire feed system pushes soft aluminum wire with fewer jams and breakages than a design that routes wire through more rollers and guides. Fewer contact points means fewer places for wire to snag, and that is the difference between a gun that feeds 400 inches per minute and one that stops.

The transparent housing is more useful than it sounds. You can watch the drive rolls and see the remaining spool without opening anything, so you catch a bird-nest forming in the feed path while it is still small instead of after the wire has chewed a groove in your liner.

Where the 4.0 rating comes from

The rating distribution shows 14 percent three-star and 9 percent one-star reviews, and the recurring complaint is fitment rather than performance. Owners are generally happy with the feed; they are unhappy when the machine they own is not on the list, or when the machine it fits needs a retrofit kit they did not know about.

The Syncrowave 210 TIG case is the clearest example. It is supported, but it requires retrofit kit 269044 and accessory kit 301254, so budget for both if that is the machine in your shop. Get the part numbers confirmed before you commit.

Comfort over long sessions

The contoured handle and light body reduce fatigue on longer sessions, which sounds like a small detail until you are doing a full day of aluminum patch panels. At 150 amps this gun also has more headroom than the 100A class for 1/4 inch material, so it covers a wider range than its 10 foot cable length might suggest.

Before you order, confirm your exact Miller model number. If the gun needs a retrofit or a connector change to reach your machine, that cost can erase the value the low rating implies. Feed it with U-groove drive rolls, a nylon or Teflon liner, and 100 percent argon through a flow meter at 25 to 35 cfh.

4. PreAsion 16 ft Miller-Fit Spool Gun – Long Cable for Big Fabrications

This is the long-cable option in the group, at 16 feet or 5 meters. That length matters for anyone welding truck beds, boat trailers, or large aluminum fabrications where the machine stays in one spot and the work does not come to it.

Buyers with a compatible Miller 210 or Spoolmate 3035 style machine generally report a good-value replacement for a worn OEM gun. The 4.0 star average across 45 reviews is mid-table, and the reviews themselves explain exactly why.

The connector work is the deciding factor

Adapter requirements are common. Several reviewers needed connector and gas fitting changes, or hardwiring, before it would work at all, and the compatibility claims on the listing do not hold for every machine. The rating distribution backs that up: 28 percent four-star reviews sit alongside 11 percent two-star reviews from people who could not make it connect.

If your Miller 210 or Millermatic 210 needs a connector swap, this is a reasonable way to get a long cable at low cost. If you want it to bolt straight on with no work, keep looking. The ten conductive tips in the box soften the blow a little but do not solve a fitting problem.

Burn-backs and the trigger

Some units burn back wire repeatedly, and a few had a trigger that malfunctioned and auto-fed the wire without being commanded. That is a quality control issue as much as a design issue, and it is the reason several reviewers describe it as needing a couple of setup adjustments before it welds properly.

Ten extra conductive tips in the box actually help with the burn-back problem, because burn-backs usually trace to a worn or undersized contact tip. Swap the tip before you start blaming the drive system.

How to judge this purchase

Treat it as a replacement part, not an upgrade. If your OEM gun is cracked or the plastic drive housing is worn out, and you already know your machine and connector, this gets you back to welding with a longer reach than the original.

It runs DC 24V, which matches typical spool gun ports, and it is a straight plug-in once adapted. Fit U-groove drive rolls and a nylon liner before the first aluminum pass, and keep a spare contact tip close by, because you will use them.

5. ARCCAPTAIN 150A Spool Gun – Euro Connection With a 60 Percent Duty Cycle

The ARCCAPTAIN 150A is a recent release with strong early sentiment: 68 percent of its 41 reviews are five-star, and owners single out feed smoothness and the cable as the standouts. Rated at 150 amps with a 60 percent duty cycle, it out-specs the 100A class guns on sustained work.

The 5-Pin Euro connection is the deciding detail. It fits the MIG205MP, MIG205PCT, MIG205DP PRO, MIG205PRO, MIG165PRO, MIG200ELITE, MIG180, MIG200P, and MIG250DP. That is a long list of machines, and it is a very short list of brands: one.

Why the duty cycle rating matters on aluminum

Aluminum welds need more amperage than steel of the same thickness because the metal pulls heat away so efficiently, and more amperage means more sustained arc time. A 60 percent duty rating at 150 amps gives you room to lay a long bead on 1/4 inch plate without the gun cooking itself.

That is a real difference from the intermittent-duty guns in the same price band. If you are doing fabrication rather than patch work, duty cycle is the spec that will show up in month two rather than week one.

The clear cover is a diagnostic tool

Owners like the transparent cover because it keeps the wire clean and lets you see how much spool is left. The practical benefit is fault-finding: when the feed gets rough you can watch the drive rolls and spot a snag forming instead of guessing at the tension setting.

The trigger response is described as crisp and positive, which matters on aluminum because you are usually making short passes and restarting constantly. A trigger that lags or creeps makes stacked-dime technique nearly impossible.

Set expectations honestly

This gun will not fit anything that is not an ARCCAPTAIN 5-pin machine, and one owner reported a unit that would not hold feed pressure even after modifying the pressure arm. That is a small share of reviews, but it is the kind of fault that ends a project.

Warranty coverage is 180 days from the manufacturer, which is on the short side. If you buy it, buy U-groove drive rolls and a nylon liner in the same order and check the feed under a bench test before you rely on it for a customer job.

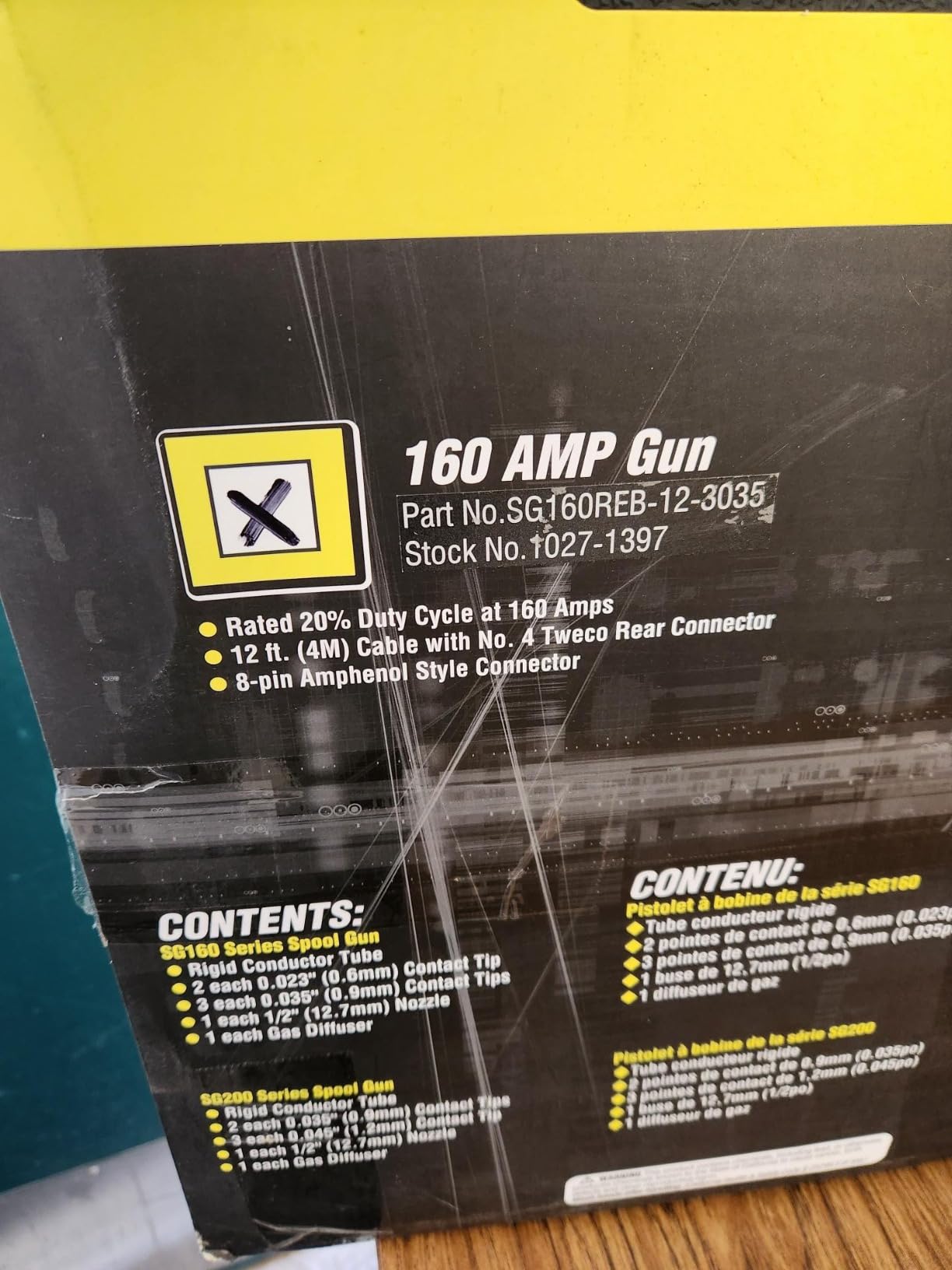

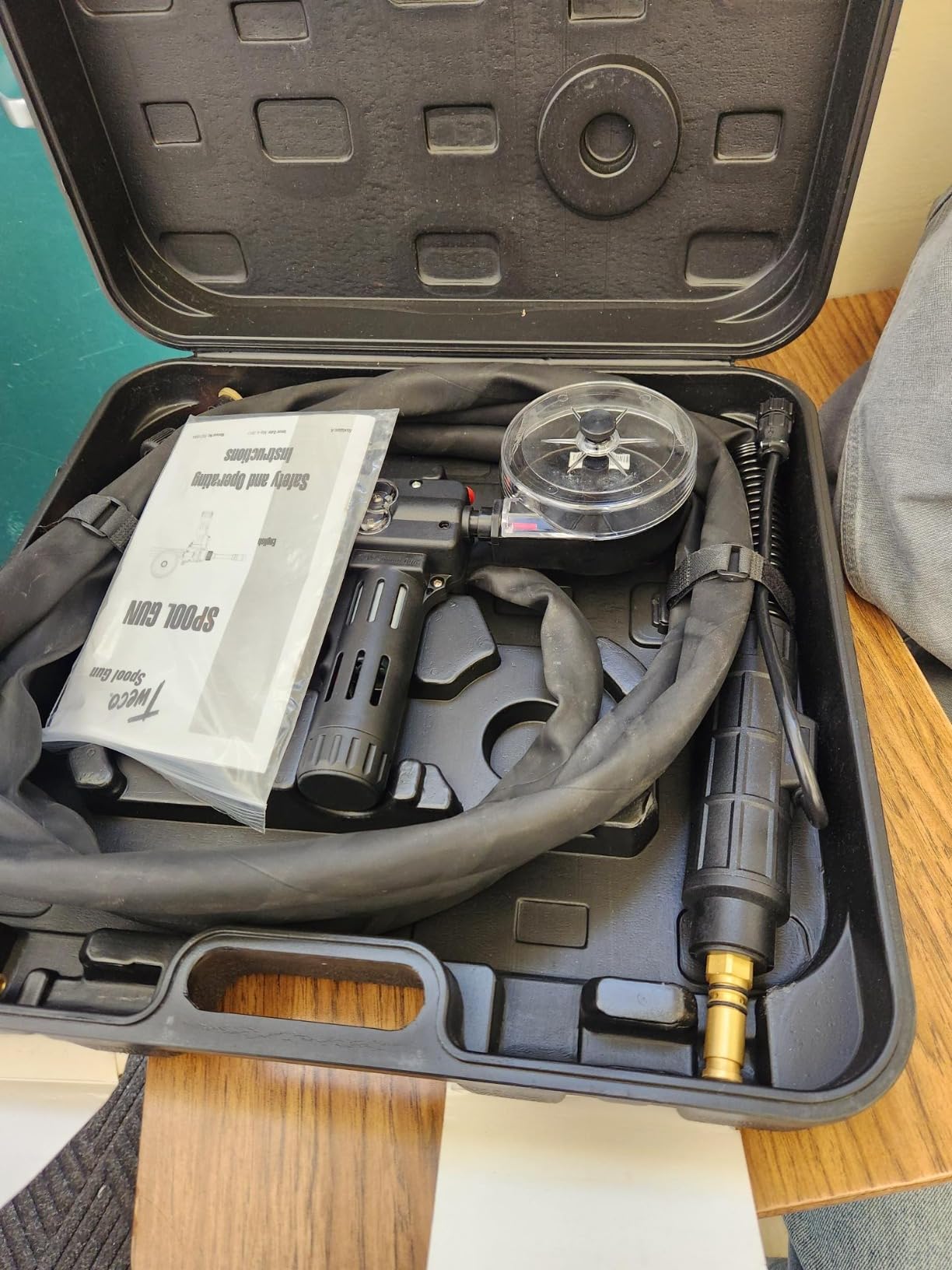

6. TWECO 160A Spool Gun – Built for the ESAB Rebel 215ic

Part number 1027-1397 is built for the ESAB and TWECO Rebel 215ic multi-process welder, and it also covers the MST and FP series machines. At 160 amps with a heavy duty drive motor, it is the gun to consider if you are on that platform and doing more than occasional trim work.

The 4.5 star average is good, but it rests on 30 reviews. Owners cite a solid drive motor, a clean feed, and easy handling, and the dissatisfaction is about fitment and duty rating rather than any performance fault.

The Amphenol connector is an industrial-style connection

The 8-pin Amphenol style connector is the most broadly standardised connection in this roundup, which matters if you ever move machines. It is the connector style used on multi-process and industrial equipment, so it is far less proprietary than a single-brand connector.

That is a genuine advantage, though it does not make the gun universal. Fitment is still specific to ESAB and TWECO Rebel 215ic, MST and FP series machines, so verify your model before anything else.

Wire range and drive motor

It handles .023 through .035 wire and holds standard 4 inch diameter spools, with a standard straight 180 degree conductor tube. That covers the diameters most shops actually run on aluminum, and the heavy duty drive motor is the part owners single out for feeding soft wire reliably.

It ships with a 12 foot direct connect cable, which is a good middle ground. Long enough to get around most jobs, short enough that you are not fighting friction if you ever run it in a push configuration.

Duty expectations and the pistol grip

This is a light-duty fabrication gun, not a heavy production feeder, and the 90 day warranty on material and workmanship is the second shortest in the group. Plan on replacing consumables on a normal schedule and treat it as shop equipment rather than production equipment.

The pistol grip handle is comfortable and impact resistant, which is a real advantage in a fabrication shop where a spool gun gets dropped. Welders in the reviews like the handling, and with only 30 reviews there is limited long-term durability feedback, so treat the rating as promising rather than proven.

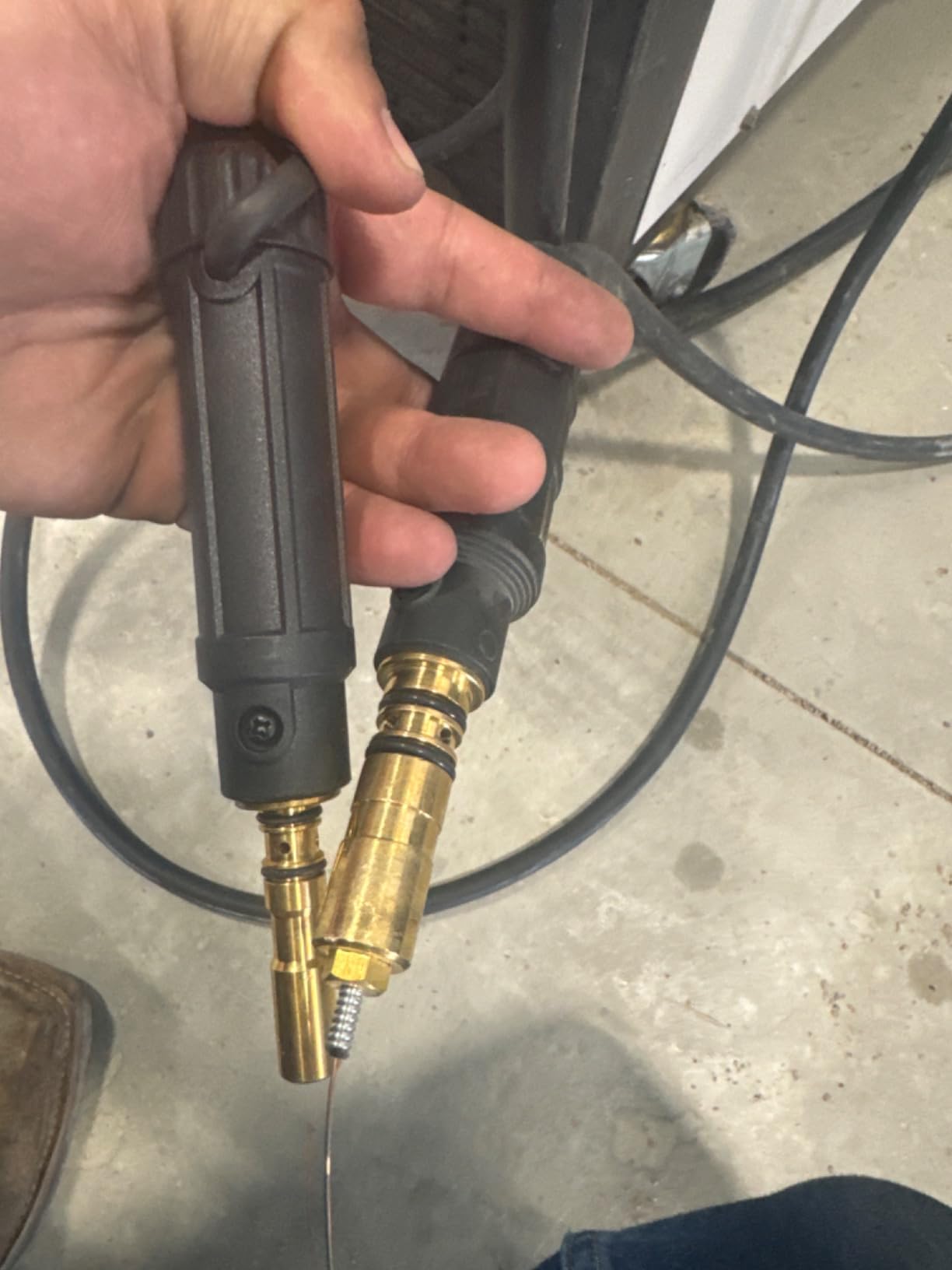

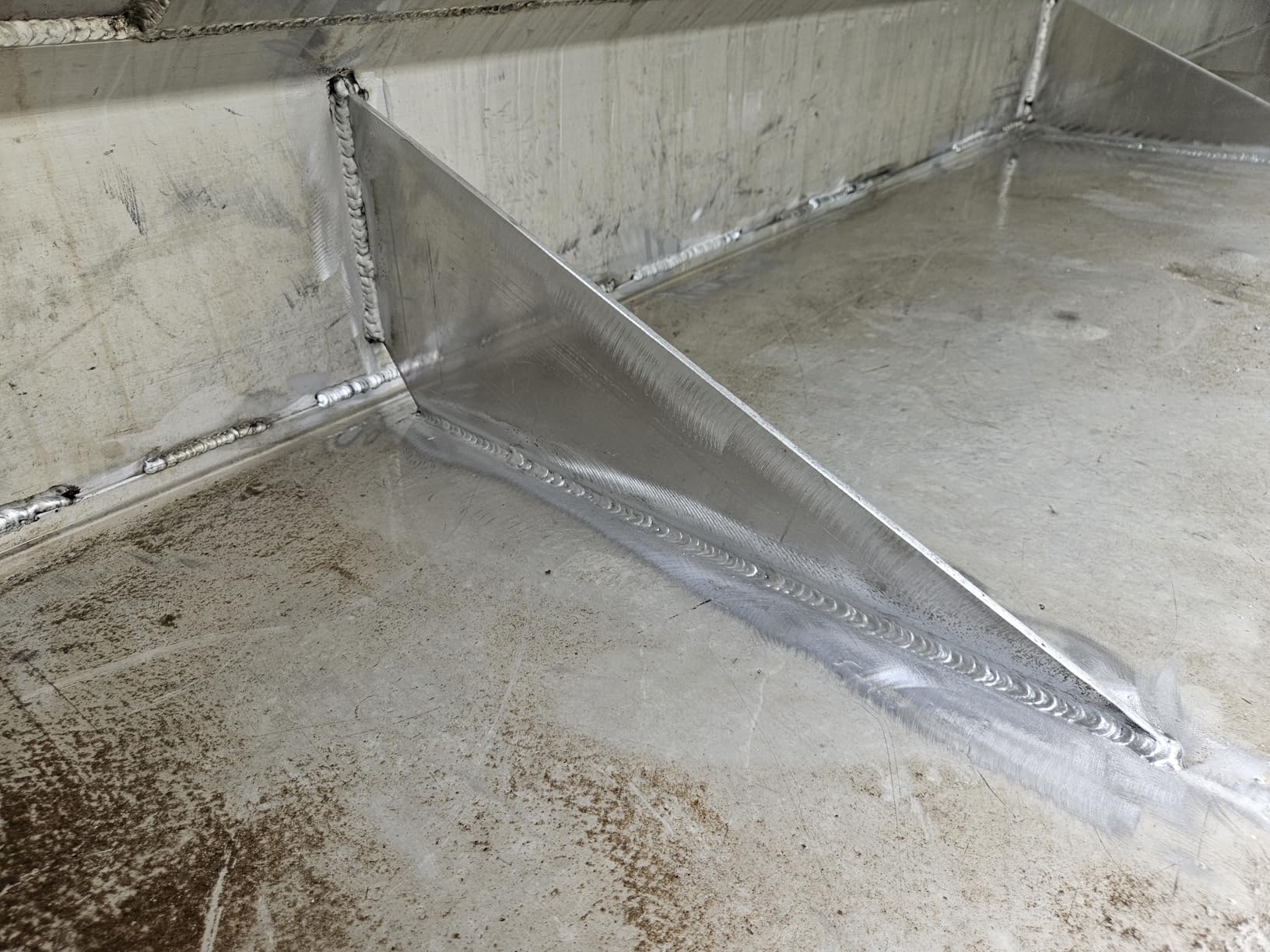

7. Hobart SpoolRunner 200 – The Production Gun for IronMan 240 Owners

Model 770967 is the only gun in this roundup with a cast aluminum gearbox and a 200 amp class rating, and that combination is why it is the right answer for production aluminum work. If you own the IronMan 240 and weld aluminum every day, this is the gun built for that job.

The IronMan 240 connection is direct, so there is no adapter guesswork. The tradeoff is obvious and worth stating plainly: this gun does nothing for you if you own anything else.

Serviceability is the real feature

Toolless head tube removal means you can pull the torch head off to clean spatter without tools and without hunting for a hex wrench on a dirty shop floor. On aluminum, where a dirty liner causes feeding problems, being able to service the gun in under a minute is worth more than any feed rate claim.

The pressure-lever wire loading is the other half of that. Instead of threading wire by hand through the drive path, you release pressure with a lever and drop the spool in. The same complaint appears on every budget gun in this roundup, and Hobart is the only one here that solves it at the tool level.

Why a cast aluminum gearbox changes the duty story

The plastic gear trains in the cheaper guns in this list are the part that fails first under sustained load. A cast aluminum gearbox with a heavy duty drive motor is what lets this gun hold its rating on long beads and repeated restart cycles through a day of production work.

The hinged flip-up compartment and clear spool cover mean you can check the spool and the wire path without setting the gun down or breaking your setup. On a production run, those seconds add up.

What ships with it and who should skip it

Extra contact tips in .030 and .035 and an extra nozzle are included, which covers most of the consumables you will burn through in the first year. The Hobart 5/3/1 warranty is also the strongest coverage in this roundup.

Skip it if you do not own the IronMan 240, and note the 14 percent share of one-star reviews appears tied to fitment rather than defects. With 24 reviews, the 4.3 star average is a good signal but a small sample, so buy it for the gearbox and the serviceability rather than the rating.

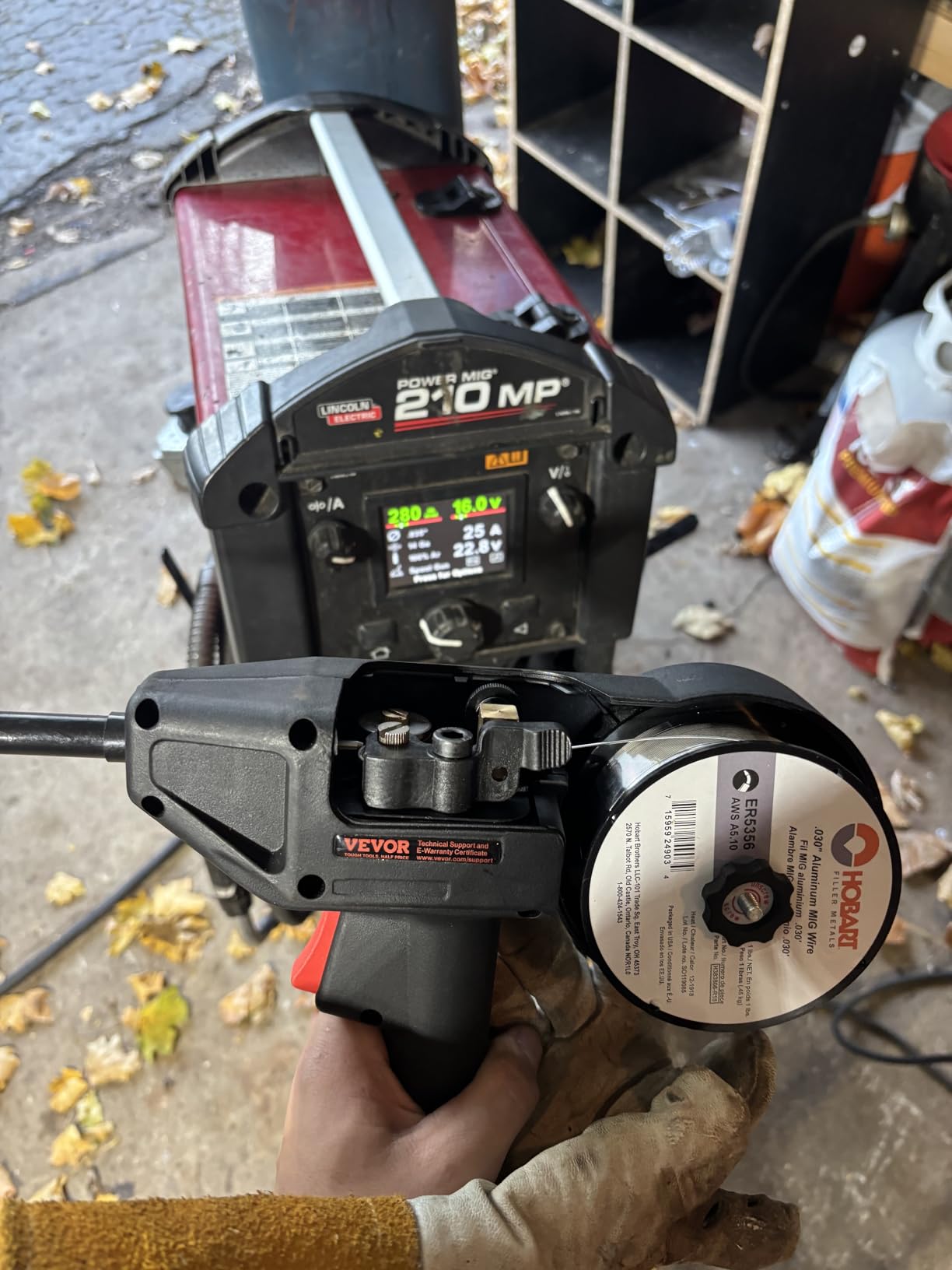

8. VEVOR 200Amp Spool Gun – The Lowest-Cost Way to Add Aluminum Capability

Nothing else in this list does this much for this little. The 200 amp rating, the 10 foot cable, and the ability to run .030 and .035 flux core, solid and aluminum wire make this the budget pick for a shop that wants to try aluminum without committing real money to the experiment.

What you give up is consistency, not capability. The 4.0 star average across 18 reviews splits sharply, and the pattern is clear: people like the build and the cable, and get burned by fitment and aluminum striking.

Fitment is the number one failure, not performance

Reviewers report that connector and plug fitment varies widely, that it does not fit every Weldpro or Lincoln machine, and that some buyers ended up hardwiring. The listing positions it as a replacement part for the Weldpro SB8 spool gun, and the listed compatibility information has proven inaccurate for some welder models.

That 16 percent one-star share is almost entirely this issue. Before you buy, confirm the connector on your machine against the gun, and be prepared to source an adapter or a trigger plug. If the connection is uncertain, this is not the gun to gamble a project on.

Aluminum needs patience on this gun

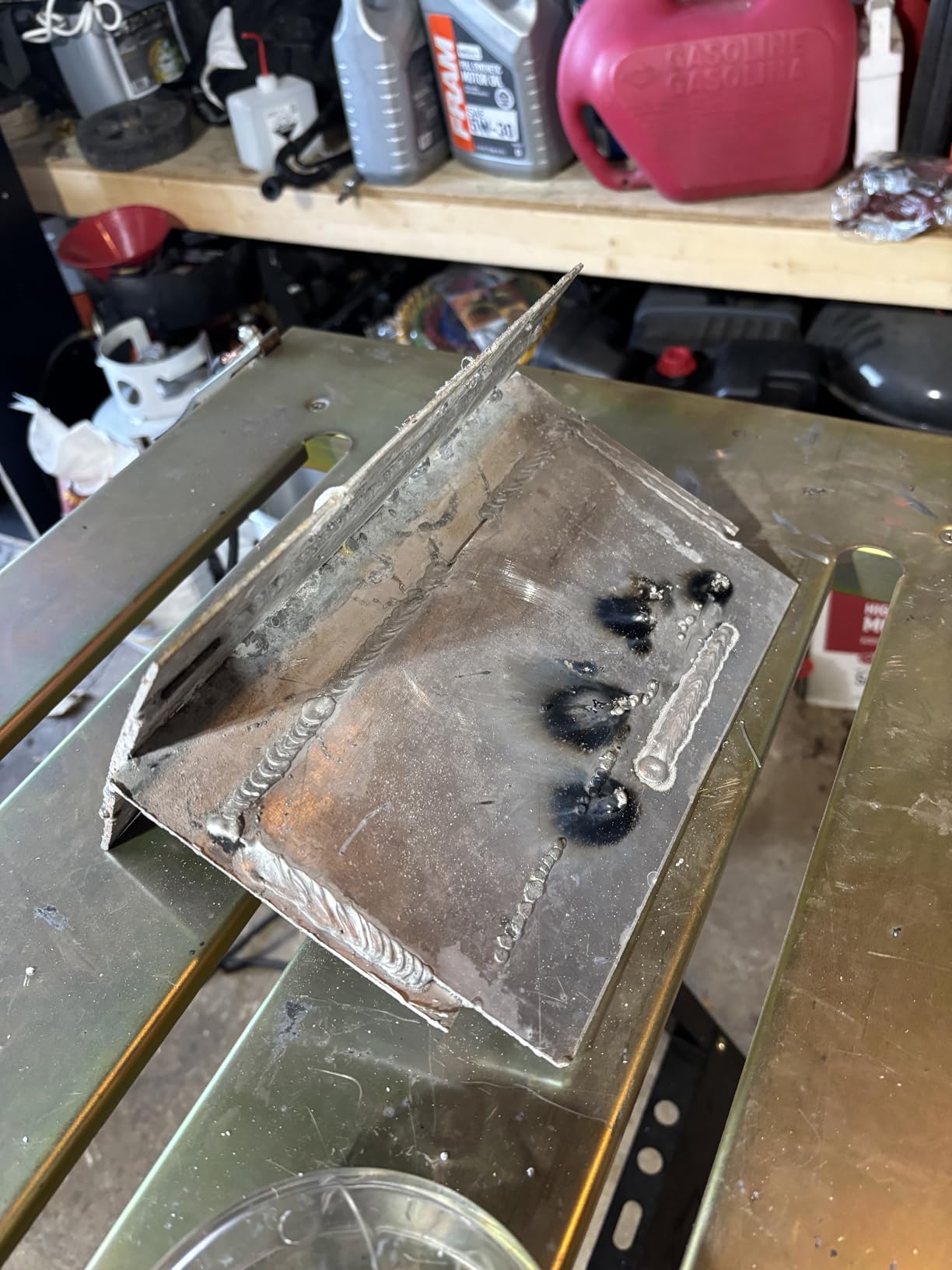

Arc striking on aluminum is described as tricky, and it takes extra setup and patience to get consistent results. Set aside an afternoon for tuning rather than expecting a first-pass bead. Clean the work with acetone, use a stainless-dedicated brush, set the tension lightly, and run a generous argon flow through a real flow meter.

On steel, by contrast, the reviews are positive: a smooth, consistent arc with no complaints. The resilient casing and flexible cord also hold up to shop-floor handling, which is more than some premium guns can say.

What is in the box

Two .030 contact tips, one pre-installed, and it supports one pound welding wire spools. The transparent wire feeding mechanism lets you watch the feed path in real time, which is genuinely useful for spotting bird-nesting before it becomes a jam.

At 4.85 pounds with an ergonomic grip, it is the lightest gun here and the least tiring to hold on a first aluminum project. The lightweight housing and transparent window are the two features that make it worth learning on, even if you later move up.

9. SSimder 200A Euro Spool Gun – Long Cable for 2 lb Spools

The NBC-200 pairs a 200 amp rating with a 16 foot direct connect cable, and it is one of only two guns here that will hold a 2 pound spool. If you are running a lot of aluminum, the larger spool means fewer changeovers, and that is a productivity argument that is easy to overlook.

Feedback centres on wire visibility and short wire travel. The clear plastic housing shows the moving parts and the spool level at a glance, and the built-in spool and feeder keeps the wire path short enough to feed soft aluminum smoothly.

Why 2 lb spools matter for volume work

A one pound spool runs out fast on production work. A 2 lb spool roughly doubles the time between changes, and every changeover on aluminum is a re-thread, a re-tension, and a re-tune. The air-cooled design supports those larger flux core spools as well as aluminum.

For a one-off weekend repair, that does not matter at all. For a shop running aluminum panels every week, it is a genuine efficiency gain, and it is why this gun earns its place on a list of ten.

Fitment is narrow

This gun is recommended for the SSimder Upgraded SD-4050 Pro and the MIG-250D, and it uses a Euro connection torch. It will not connect to other welder brands, and there is no adapter path described in the data.

If you own one of those two machines, the 200 amp rating and 16 foot cable make this a capable aluminum gun. If you own anything else, this is not your option, and no amount of clever wiring changes that.

Read the rating in context

With 66 percent five-star reviews the sentiment is genuinely positive, but the base is 14 reviews. That 16 percent one-star share is small in absolute terms and large in proportion, so treat the 4.0 star average as directional rather than established.

It ships as a complete spool gun at 6.87 pounds, and the 18 by 14 by 3 inch package is compact enough to store out of the way. Fit U-groove drive rolls and a nylon liner, and check feed under a bench test before relying on it for customer work.

10. Eastwood Push-Pull Spool Gun – The Only True Push-Pull Design Here

This is the only gun on the list with a genuine push-pull feeder, and that is a meaningful architectural difference. A push-pull gun places drive rollers at both the spool and the torch, so the wire is actively pulled the whole length of the cable rather than relying on the wire itself to survive the push.

For soft aluminum, that removes the single biggest failure mode. Owners call the design straightforward and easy to use, and 82 percent of the 9 reviews are five-star with nothing below four.

Why push-pull changes the wire story

Push guns depend on the wire being stiff enough to survive liner friction. Aluminum wire is not, which is why push feeding struggles as wire diameter and cable length increase, and why .047 wire realistically needs a push-pull gun over a long hose.

Pulling the wire rather than pushing it means the feed rate stays accurate at higher speeds and the wire does not mushroom at the contact tip. If you are planning to run larger aluminum wire or weld over long cables regularly, this architecture is the right answer.

Fitment is narrow and simple

The metal connector is fitted on both the machine and the torch lead, which makes the physical connection simple once you own the right welder. It fits the Eastwood MIG135, MIG175, MIG250 and MP250I, and it will not fit other brands.

That restriction is the entire trade-off. The push-pull design is the best feeding architecture here, and the machine list it works with is a short one. If you are on an Eastwood platform, this is an easy decision.

Judge the rating carefully

A 4.8 star average is the highest in this roundup, and it is the smallest sample at 9 reviews. Treat it as encouraging rather than proven, and balance it against the fact that this is also one of the older designs in the group.

It comes complete with a 1 lb spool of .035 inch aluminum wire, so it is ready to weld. Pair it with U-groove drive rolls, run 100 percent argon through a flow meter, and reverse polarity. Wire a spool gun the same way you would a push gun, and the result is a feed that holds steady where a push gun would stall.

How to Choose a Spool Gun That Fits Your Welder and Your Wire

Compatibility is the number one purchase killer, and it is the number one thing to check before you care about anything else on the spec sheet. Most brands require their own spool gun, and the trigger connectors are not interchangeable. Miller, Lincoln, Hobart, ESAB and TWECO, ARCCAPTAIN, YESWELDER, VEVOR, SSimder and Eastwood each use their own connector, and adapters exist but are vendor-specific and often partial.

Find your exact welder model number, then find the gun whose compatibility list includes it verbatim. Every review above names the specific machines covered. If your machine is not on that list, walk away, because a spool gun that will not connect is a paperweight.

Cable length is a reach decision, not a performance one

Within a spool gun, a longer cable does not create the push friction that ruins a conventional push gun, because the wire is fed at the gun. So cable length is mostly about reach. Ten feet covers a bench and a small trailer frame, 12 to 15 feet covers truck beds and machinery, and 16 feet is for large fabrications where the machine stays put.

The tradeoff is handling. A 16 foot gun is noticeably heavier to move and easier to snag on a workbench, and it is a worse choice if you are constantly repositioning the welder. Pick the shortest length that covers your actual work.

Wire diameter and push versus push-pull

Most spool guns in this roundup feed .030 and .035 aluminum wire, which covers the vast majority of real work from 1/16 inch sheet up through 1/4 inch plate. Larger .035 and .047 wire is a different conversation, because soft wire in a long cable needs to be pulled rather than pushed to feed accurately.

If you plan to run .047 regularly or weld over long cables every day, a push-pull design is the correct architecture and the Eastwood gun on this list is the one built that way. For .030 and .035 work, a direct-drive spool gun feeds reliably and costs less to maintain.

Amperage and duty cycle for aluminum

Aluminum needs more amperage than steel of the same thickness because it conducts heat away roughly six times as efficiently. A 100A gun is honest for 1/8 inch and lighter material, a 150A gun covers 1/4 inch plate without fighting, and a 200A gun with a cast aluminum gearbox is the production answer.

Duty cycle is what tells you whether you can hold that rating. A 60 percent duty rating at 100 amps gives you real working time on a long bead, while an intermittent-duty gun heats up fast and is best for short passes and start-stop work.

Drive rolls and liner material decide feed quality

This is the cheapest upgrade you will ever make on a spool gun. U-groove drive rolls, or reversed polished V-knurl rolls, are the correct choice for aluminum. Knurled V-groove steel rolls are designed for steel wire and will chew soft aluminum, causing the inconsistent feed that gets blamed on the gun.

Pair them with a Teflon or nylon liner. A steel liner is what makes push feeding fail on soft wire, because aluminum expands and mushrooms under friction. Reviewers report the drive roll and liner choice matters more for feed reliability than the gun brand itself.

Gas, consumables and prep

Aluminum needs 100 percent argon, typically 25 to 35 cfh, and never an argon-CO2 blend. Critically, a plain CGA regulator is not a flow meter, and reading a pressure gauge as if it were cfh is the single most common cause of failed aluminum welds. Buy a real flow meter.

Consumables are inexpensive and easy to burn through. Keep extra .030 and .035 contact tips, a spare nozzle, a spare Teflon liner, and a spare set of drive rolls in the cabinet. Burn-backs on aluminum almost always mean a worn or undersized contact tip, and larger contact tips for aluminum are a common trick.

Clean the work before you weld. Acetone and a stainless-dedicated brush that has never touched steel, because ferrous particles from a used wheel or flap disc embed in soft aluminum and rust later, right in the middle of your bead.

Why Aluminum Spool Gun Welds Fail and How to Fix Them

Most frustrating aluminum spool gun problems are not the gun. They are gas, contamination, or heat behavior, and the failure modes repeat so reliably that learning to read them saves more time than any new accessory.

The cold start then burn-through loop

This is the signature aluminum failure: the arc strikes cold, sits there for a second, then a moment later burns straight through with no usable middle ground. It happens on clean plate, a new spool, and a brand new liner, which is why it is so confusing.

The usual causes are the machine not having enough amperage, insufficient pre-flow before the arc strikes, and aluminum’s heat sink behaviour pulling heat out of the puddle faster than the joint can absorb it. Preheating the work with a torch before welding helps because aluminum pulls heat away, and documented working parameters from fabricators include .030 5356 wire, 21.8 V in reverse polarity, 380 inches per minute wire speed, and about 30 cfh of argon.

Bird-nesting in the feed path

Bird-nesting is where soft wire curls and snags in the liner or between the drive rolls. It is a friction and tension problem, and the fix is mechanical. Switch to U-groove drive rolls, fit a Teflon or nylon liner, and set spool tension lightly rather than cranking it.

Over-tensioning is the most common self-inflicted cause. A spool gun only needs enough pressure to keep the wire moving, and extra pressure mushrooms the wire against the liner. If a gun will not feed until you tighten it hard, the drive rolls or the liner are wrong.

Porosity in the bead

Porosity means the gas shield is not covering the puddle, and the first thing to check is the flow rate. Too little argon, a regulator that is not a flow meter, or a cylinder that was actually filled with CO2 will all produce porous beads that look like a technique problem.

The second cause is technique. Beginners drag the gun, and dragging pulls the gas coverage away from the bead. Push the gun, keep the nozzle close, and use a travel speed consistent enough to maintain a visible bead.

Wire not feeding or arcing at the tip

If the wire stops feeding, check the contact tip size first, then the drive roll tension, then the liner for a kink. If the arc is arcing at the contact tip rather than at the work, the tip is worn or undersized for the wire, and swapping it fixes the problem more often than anything else.

Machine-side causes are worth ruling out too. A 110 volt budget machine often runs nearly wide open on 1/8 inch aluminum because its output ceiling is low, which leaves you no headroom to control penetration. In that case the fix is a bigger machine, not a better gun.

One more worth naming: arc control. Experienced fabricators are blunt that spool guns do not produce the same bead as a dedicated push-pull production setup, and they are right. If you need the cosmetics of a push-pull production system, that is a different purchase at a different tier, not a spool gun accessory.

Frequently Asked Questions

Which Spool Gun Should You Buy in 2026?

Start with your welder, not the gun. The Hobart 100A is the pick for most shops because it has the deepest owner feedback in the group and a toolless-friendly tension release, the Weldpro 130A is the value pick when you want a 15 foot reach and 1/4 inch capability, and the YESWELDER 150A is the answer for Miller machines.

If you are on an ARCCAPTAIN, Weldpro, SSimder, ESAB and TWECO, or Eastwood platform, the brand-specific gun on this list will fit and the alternatives will not. If you weld 1/4 inch plate every day and own the IronMan 240, the SpoolRunner 200 cast aluminum gearbox is worth the step up. Thin sheet under 1/16 inch is still a TIG job, whatever gun you own.

Whichever you choose, fit U-groove drive rolls, a nylon or Teflon liner, and a real argon flow meter before your first bead. Those three items solve more aluminum problems than any gun on this list. Pick the one that matches your connector, and the best spool guns for aluminum welding will make your machine weld aluminum like it was designed to.
